3.2.2 Labeling Relays with Tracker Enabled
Click the RELAYS button on the tool bar to bring up the relays screen. The relay screen is where the output
relays of the telephone entry system can be labeled, where you will set the relay strike time for the command
relays, and where you can enable the "Hold Open During Modeming" command.
NOTE: The "Hold Open During Modeming" command is not active if RS-232 communication is being used.
Use the following instructions if the TRACKER button (System Info Screen) is checked. If the TRACKER option
is not checked, refer to section 3.2.1.
1. From the SYSTEM INFO screen, click the RELAYS button on the tool bar.
2. Click "Additional Relays For Tracker 2" button to enable system relays 3-10 (Fig 18).
3. Click "Additional Relays For Tracker 1" button to enable system relays 11-18 (Fig 19).
4. Click "Hold Open During Modeming" (not active if RS-232 communication is used) to activate the
respective relays during the data transfer. This will activate ALL respective tracker board relays
during modeming, which will unlock all doors (gates) during this process. If this is not desirable, do
not turn this feature on. HINT: All wiegand input devices (cards, transmitters, etc.) remain
operational during the data transfer.
5. Click in the name field, then enter a name for each relay. This is the name that will appear on the
transaction reports, for example: "Main Gate" or "Rear Gate". The maximum characters that can be
entered in this field is 12.
6. The default relay strike time for system relays 1 and 2 (labeled Cmd 11-18 and Cmd 3-10) is 00
seconds. The individual relay strike times are set at the Tracker™ boards.
7. When complete with this screen, click the OK button to save the changes made and to return to the
System Info screen. To return to the System Info screen without saving any changes, click the
CANCEL button.
8. Click the RESET button to change the relay options to the default settings.
NOTE: Relay 0 is not used with the 1834 or 1838 system. Leave this field blank if the account that you are
programming is one of these units.

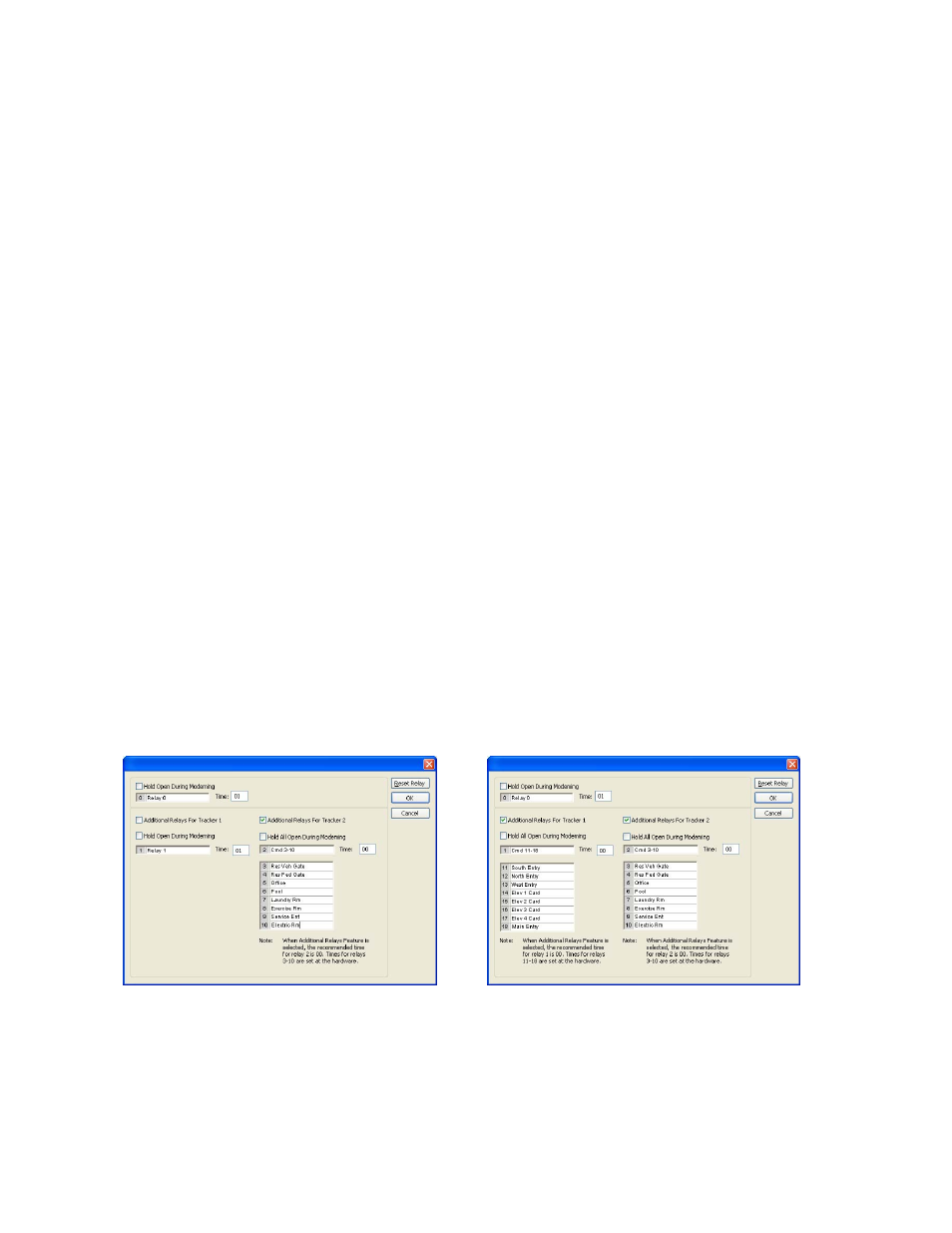

Figure 18 Figure 19
