FZ-4S Saw blade unit for normal cutting
FZ-4S_e_0205.fm Page 25
6DZ EODGHV RYHU PP
GLDPHWUH
$VVHPEO\

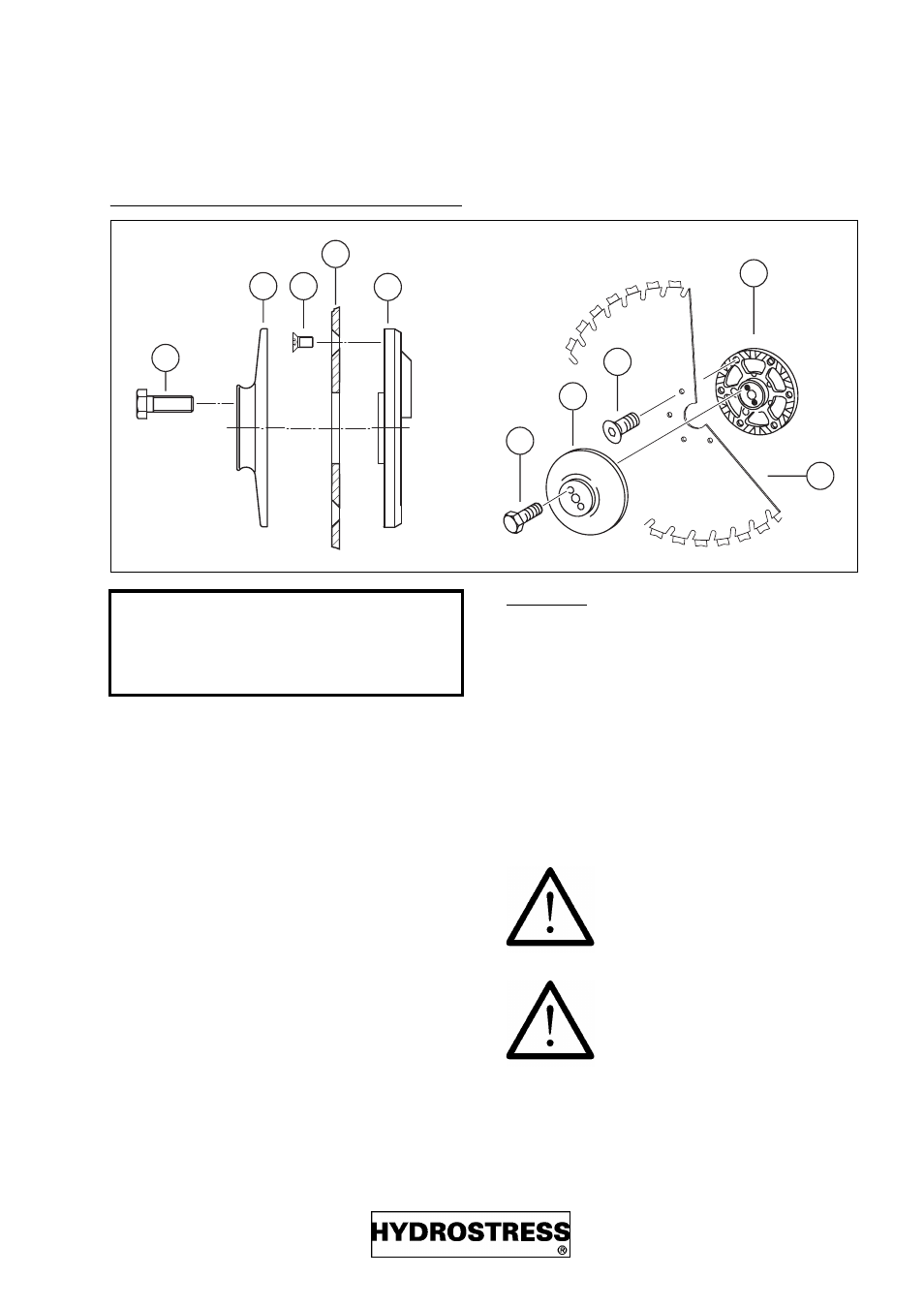

z Place saw blade with a 60 dia. hole on the
blade flange (A)
z Saw blade alignment:
Countersinkings against blade cover (B)
z Secure saw blade with 6 countersunk head
screw (D) to blade flange (A)
(tighten screws crosswise)
z Position blade cover (B) and screw down
using 2 hexagon head cap screws (C) onto
the blade flange (A)
C
A
D
B
E
C
A B
E
D
Above 1000 mm dia. saw blades must be
secured with 6 countersunk head screws
(D), the blade cover (B) and 2 hexagon
head cap screws (C).
Use the following screws only:
Countersunk head screw M8x16,
JUDGH , order No. 97182 .
Use the following screws only:
Hexagon head cap screw M12x35,
order no. 969911
