Operation Operating instructions
6-8 HCH5011 / 001
6.3.5.4 Check the reversing wheel on the bar for wear

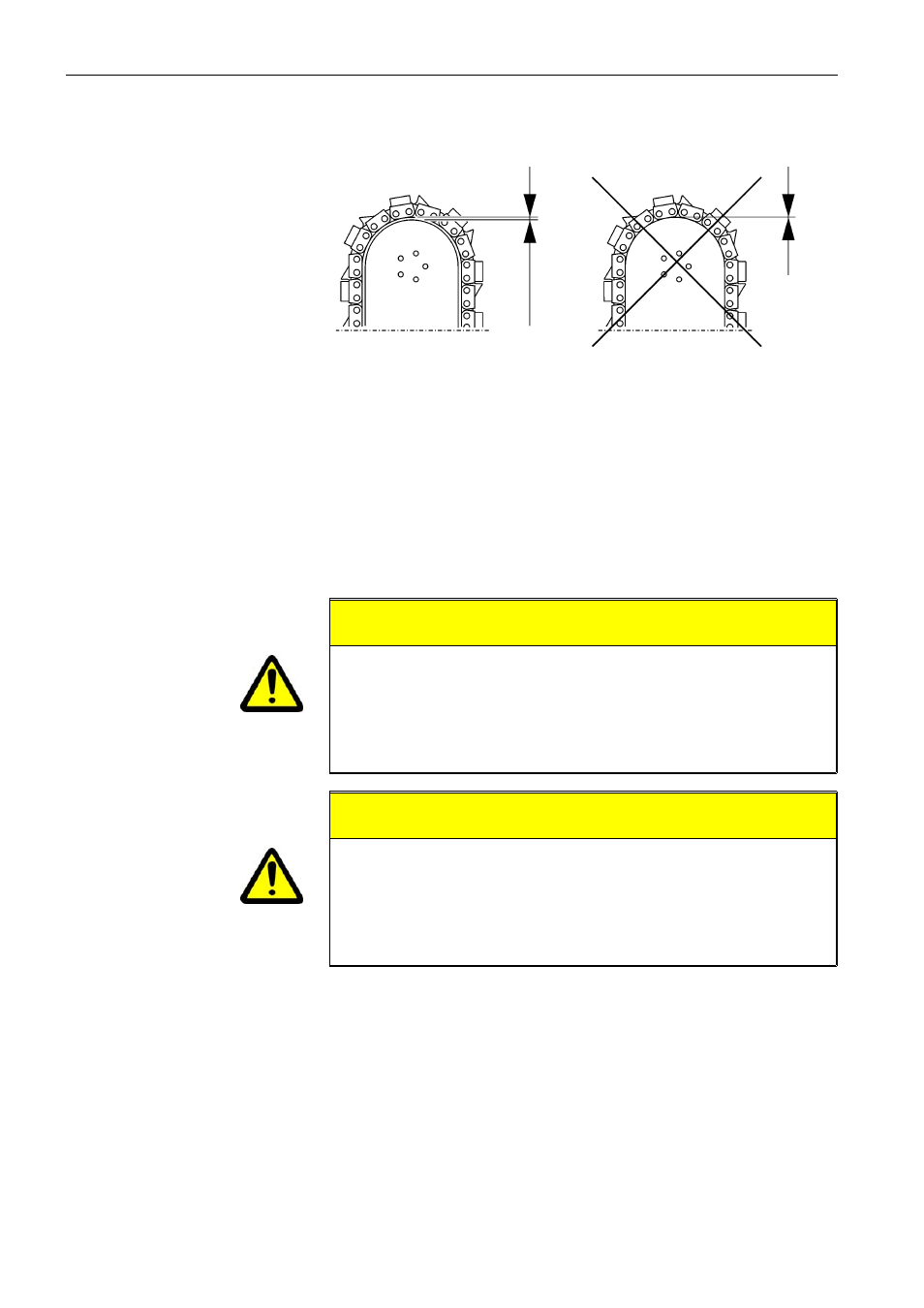

Fig. 6-5 Worn reversing wheel
When the reversing wheel is in the new condition the distance between the
chain and bar edge is 0.8 mm. If the chain is running on the bar edge, the
reversing wheel must be changed.
Repairs to be performed by an authorised TYROLIT Hydrostress AG
service centre.
6.3.6 Connecting the Chain saw HCH5011
6.3.6.1 Connecting the hoses
Warning
Danger from uncontrolled movements of the HCH5011!
Never connect or disconnect hoses when the unit is running.
Failure to adhere to this regulation may result in cut wounds or
injury to body parts and damage to property.
Warning
Danger from uncontrolled escaping of oil.
Never connect or disconnect hoses when the unit is running.
Failure to adhere to this regulation may result in cut wounds or
injury to body parts and damage to property.
0.8 mm
0
