3.3.3 Diamond chain
3.3.3.1 Design
The diamond chain has a so-called O-ring design (SEAL-PRO).
For the chain specification see “Chapter 1” 1.2.4, 1-6

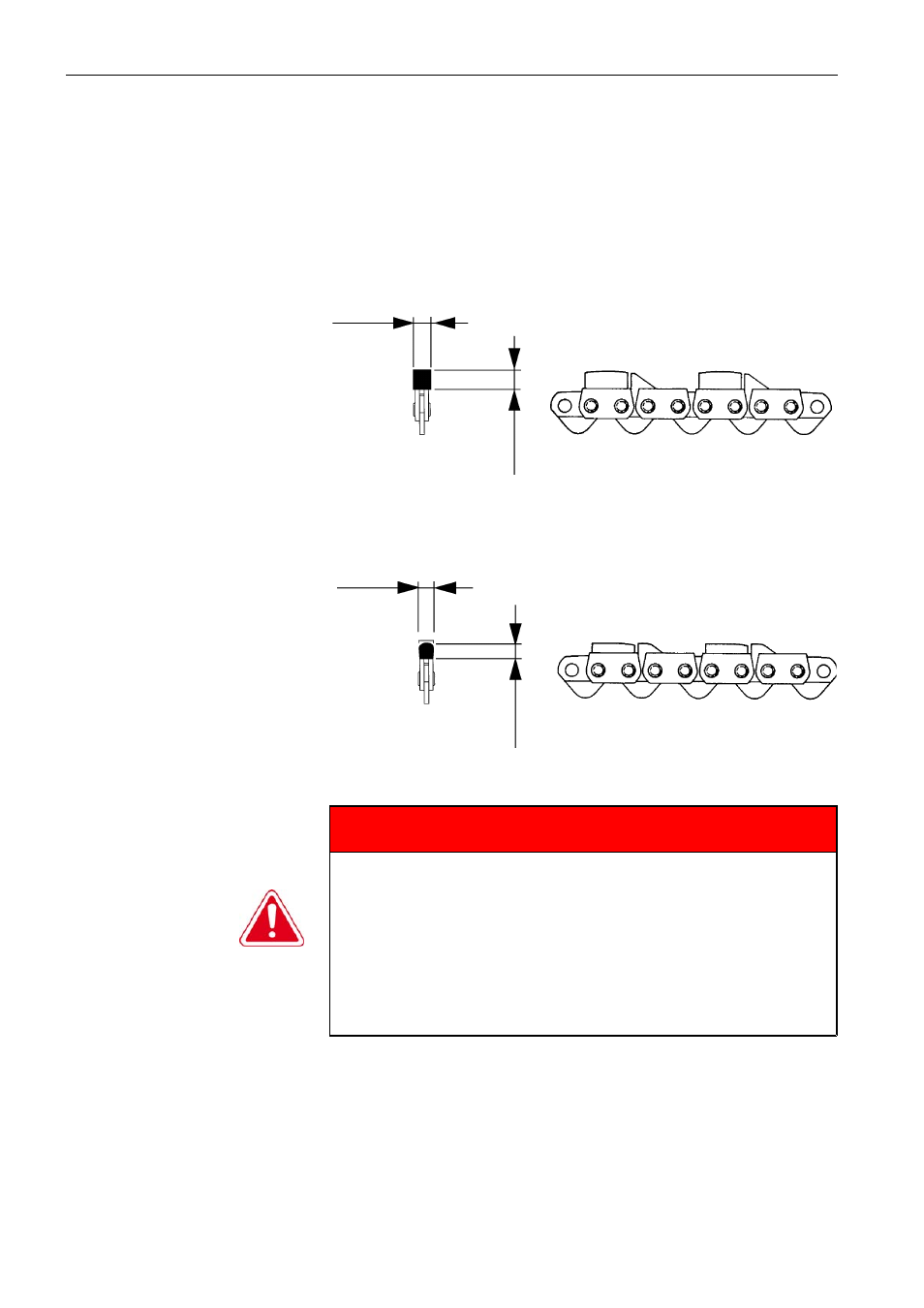

Dimensions of a new chain
Fig. 3-4 Dimensions of new chain
Dimensions of a worn chain
Fig. 3-5 Dimensions of worn chain
Danger
When working with a worn chain there is a danger of the chain
breaking.
A worn chain must be replaced by a new chain.
Do not take any notice of the fact that some segments are not
completely worn.
Failure to comply with this regulation may lead to serious physical
injury or death.
5.7mm
5.8 mm
4.7mm
1.
5 mm
