Diamond Products UDM - Manual (Page 40)

6
2
9
15
7
3
13
10
11
12
5
1
14
8
4

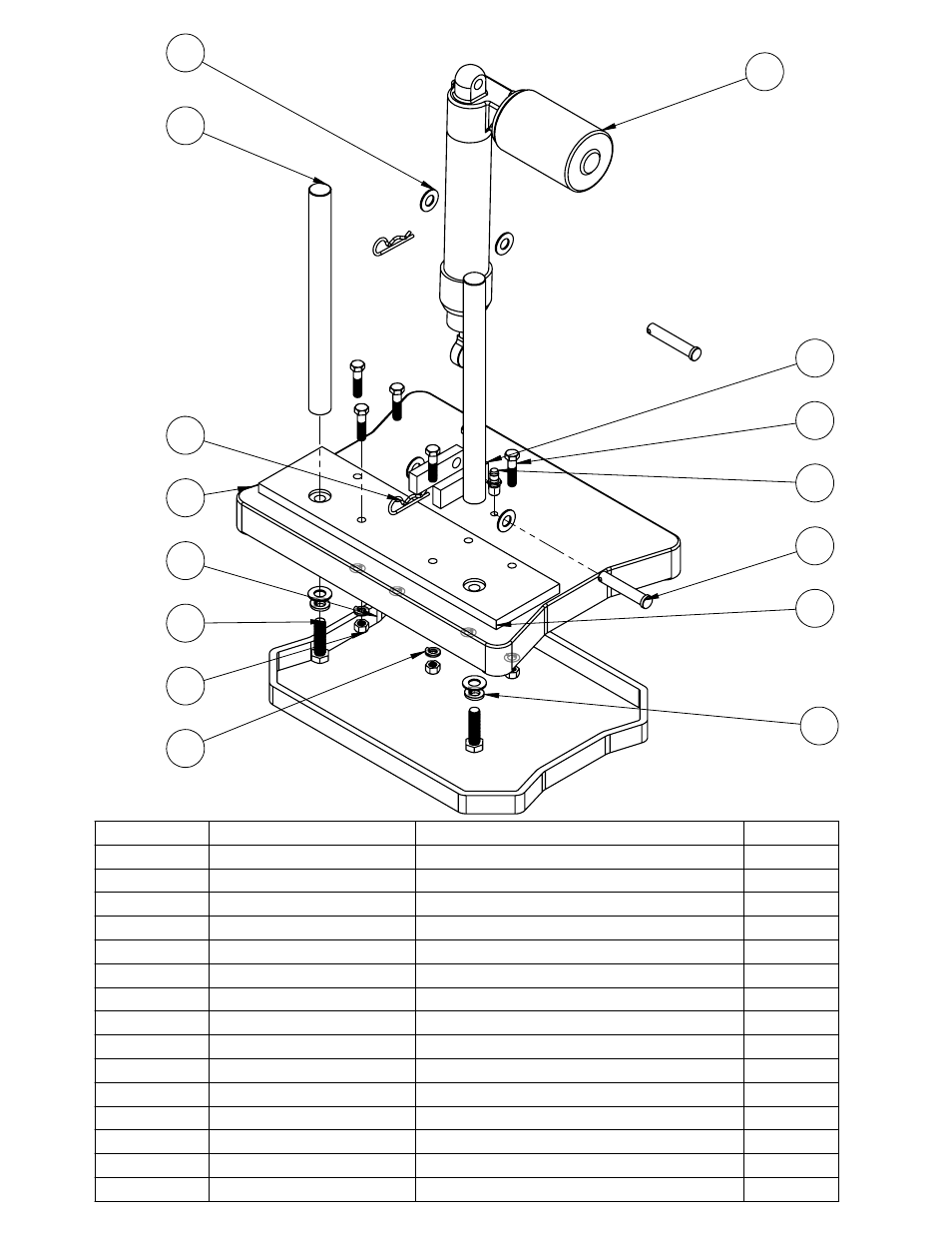

UDM VACUUM BASE ASSEMBLY
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 3100014 Vaccuum Base Casting 1
2 6091074 Cylinder Mount Bar 2
3 6091075 Vacuum Base Mount Plate 1
4 6011468 1.00" Guide Pin 2
5 4643027 VACCUM BASE GASKET 1
6 2400295 Actuator, Electric, 12V, 5" Stroke 1
7 2900607 Clevis Pin, 1/2" x 2-3/4" 2
8 2900058 1/2 FLAT WASHER 6
9 2900029 3/8-16 x 1.50 HEX HEAD CAP SCREW 6
10 2901111 3/8 SPLIT LOCK WASHER 6
11 2900033 3/8-16 HEX NUT 6
12 2903087 1/2-13 x 1.75 HEX CAP SCREW 2
13 2900084 1/2 SPLIT LOCK WASHER 2
14 2900829 Hairpin Cotter, 1/8" x 5/8" to 7/8" 2
15 3200669 1/4 MPT x 1/4 HOSE BARB 1
37
