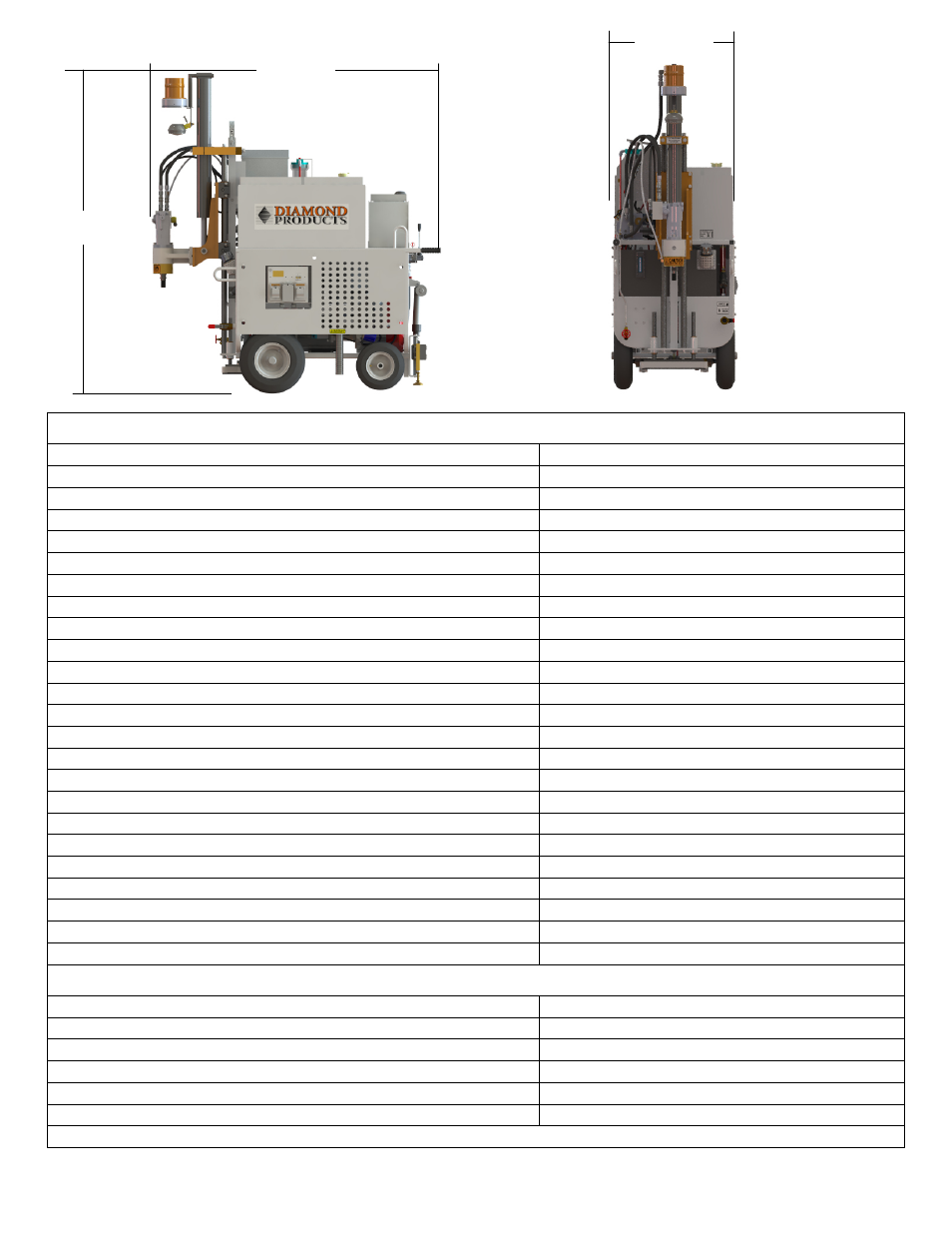

Ultimate Drilling Machine Specifications
Overall Height 81.75”
Overall Width 31.00”
Overall Length 73.25”
Overall Length W/ Handlebars Extended 99.25”
Weight (Add 450lbs. For Fuel, Hydraulic Fluid, and Water) 1100 lbs.
Core But Diameter 4.00”-24.00”Ø
Spindle Shaft Thread 1.25”-7.00”
Belt Drive Single Belt
Core Bit Coolant Water
Handle Bars Single Position, Variable Lengths
Drive Speed 3.25 MPH Maximum
Electrical Power 5000 Watts
Electrical Outlets 115V and 230V single phase twist lock, 115V GFI.
Hydraulic Power Supply 2000 PSI Maximum
Hydraulic Power Flow Control 14 GPM
Hydraulic Quick Disconnects ½”
Fuel Capacity 9.00 Gallons
Water Tank Capacity 44 Gallons
Hydraulic Tank Capacity 12 Gallons
Engine Tachometer / Hour Meter Standard
Core But RPM Tachometer Standard
Work light Standard
Strobe Light Standard
Hole Locator Standard
Engine Specifications
Manufacturer Honda
Model GX660
Fuel Type Unleaded Gasoline
Air Filter Dual Element
Low Oil Alert Standard
Electric Start Standards
NOTE: Refer to engine manual for additional engine specifications and info.
73.25”
81.75”
31.00”
8
