Diamond Products UDM - Manual (Page 39)

19
8
2
1
13
12
14
10
3
4
5
15
9
7
11
18
17
16
6

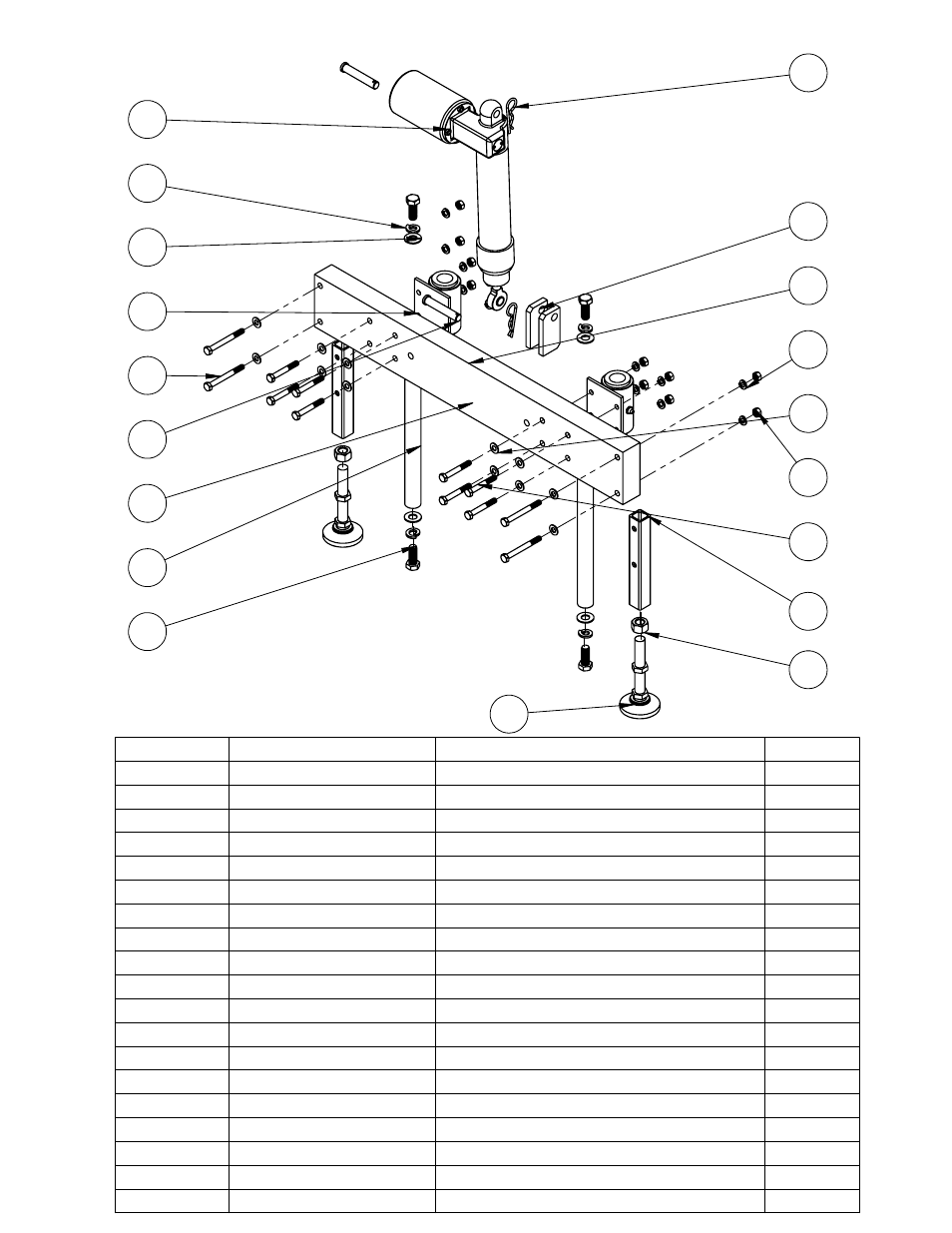

REAR STABALIZER ASSEMBLY
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 6079205 REAR COUNTER WEIGHT 1
2 6091129 Tab, Rear Lift Plate 2
3 4645203 Leg 2
4 2900112 Hex Nut, 5/8-11 2
5 2400301 Leveling Pad, 5/8-11 2
6 2400295 Actuator, Electric, 12V, 5" Stroke 1
7 2900607 Clevis Pin, 1/2" x 2-3/4" 2
8 2900829 Hairpin Cotter, 1/8" x 5/8" to 7/8" 2
9 4646214 1.00" Guide Pin 2
10 2900289 5/16-18x2.25 HEX CAP SCREW 8
11 2902998 5/16-18x3 HEX HEAD CAP SCREW 4
12 2900022 5/16 FLAT WASHER 12
13 2900031 5/16 SPLIT LOCK WASHER 12
14 2900141 5/16-18 MEDIUM DUTY HEX NUT 12
15 2900025 1/2-13 x 1.25 HEX HEAD CAP SCREW 4
16 2900084 1/2 SPLIT LOCK WASHER 4
17 2900058 1/2 FLAT WASHER 4
18 6079099 REAR STABALIZER SLIDE BUSHING 2
19 6079206 REAR COUNTER WEIGHT 1 36
