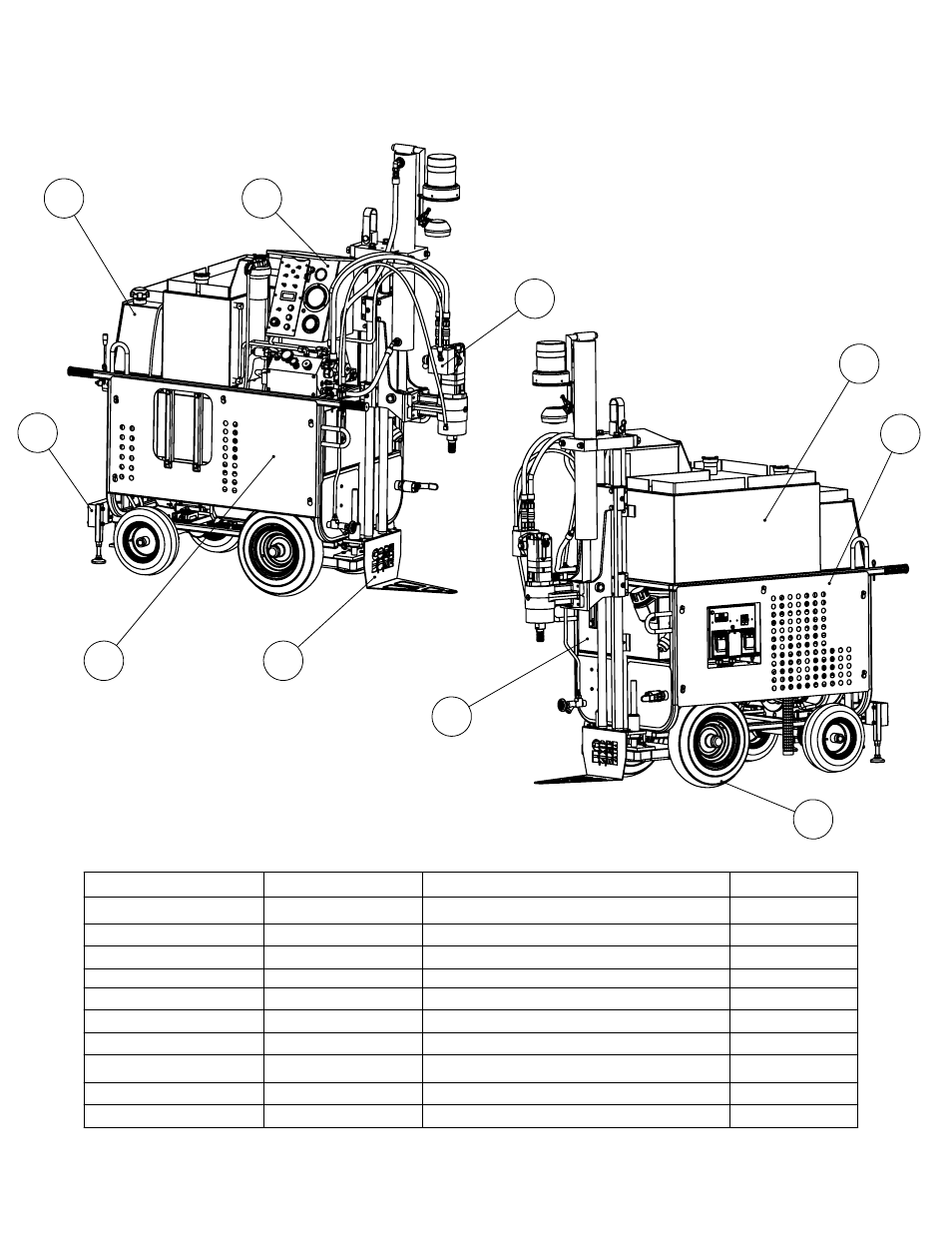

ULTIMATE DRILLING MACHINE OVERVIEW
10
9
8
7
ITEM NUMBER
PART NUMBER
DESCRIPTION
QUANTITY
1
6079001
Fuel Tank Weldment
1
2
6079058
Dash Assembly
1
3
4645238
Drill Mast Assembly
1
4
6079205
Rear Stabalizer Assembly
1
5
4645207
RIght Body Panel
1
6
6079184
Hole Guide
1
7
6079000
Hydraulic Tank Weldment
1
8
2400276
16.00" x 4.00" Foam Filled Tire
2
9
4645216
Left Body Panel
1
10
6079002
Water Tank Weldment
1
