Sheet1, Drawing view1, Drawing view2 – Diamond Products UDM User Manual
Page 30
4
3
1
6
5
4
6
5
5
5
3
3
2
9
8
7
NOTE BEARING
ORIENTATION

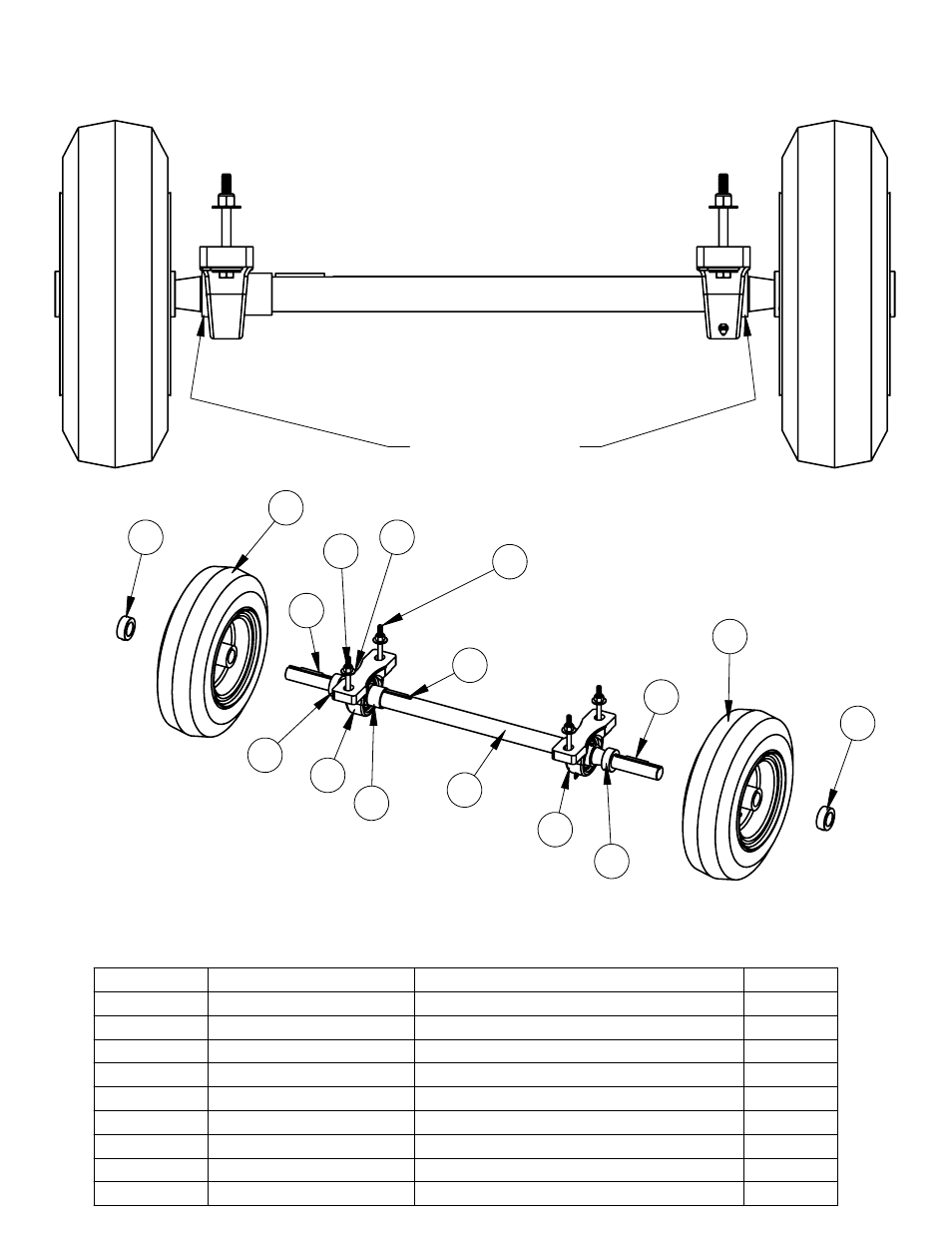

4645159: AXLE ASSEMBLY
ITEM NO.
PART NUMBER
DESCRIPTION
QTY.
1
4645114
Axle Shaft
1
2
2400298
Bearing, 1-1/4 x 1-1/2 x 1.0"
1
3
2400299
Key, 1/4 x 1-3/4"
3
4
2500365
Pillow Block Bearing, 1-1/4"
2
5
2500009
Set Collar, 1" ID
4
6
2400277
Tire, 12 x 3-1/2, Foam Filled
2
7
2900057
3/8-16 x 3.75" Hex Head Cap Screw
4
8
2900473
3/8 FLAT WASHER
8
9
2900018
3/8-16 Nylon Lock Nut
4
27
