Patriot Putty Unit Operations Manual
Rev. 08/2012 Page | 26

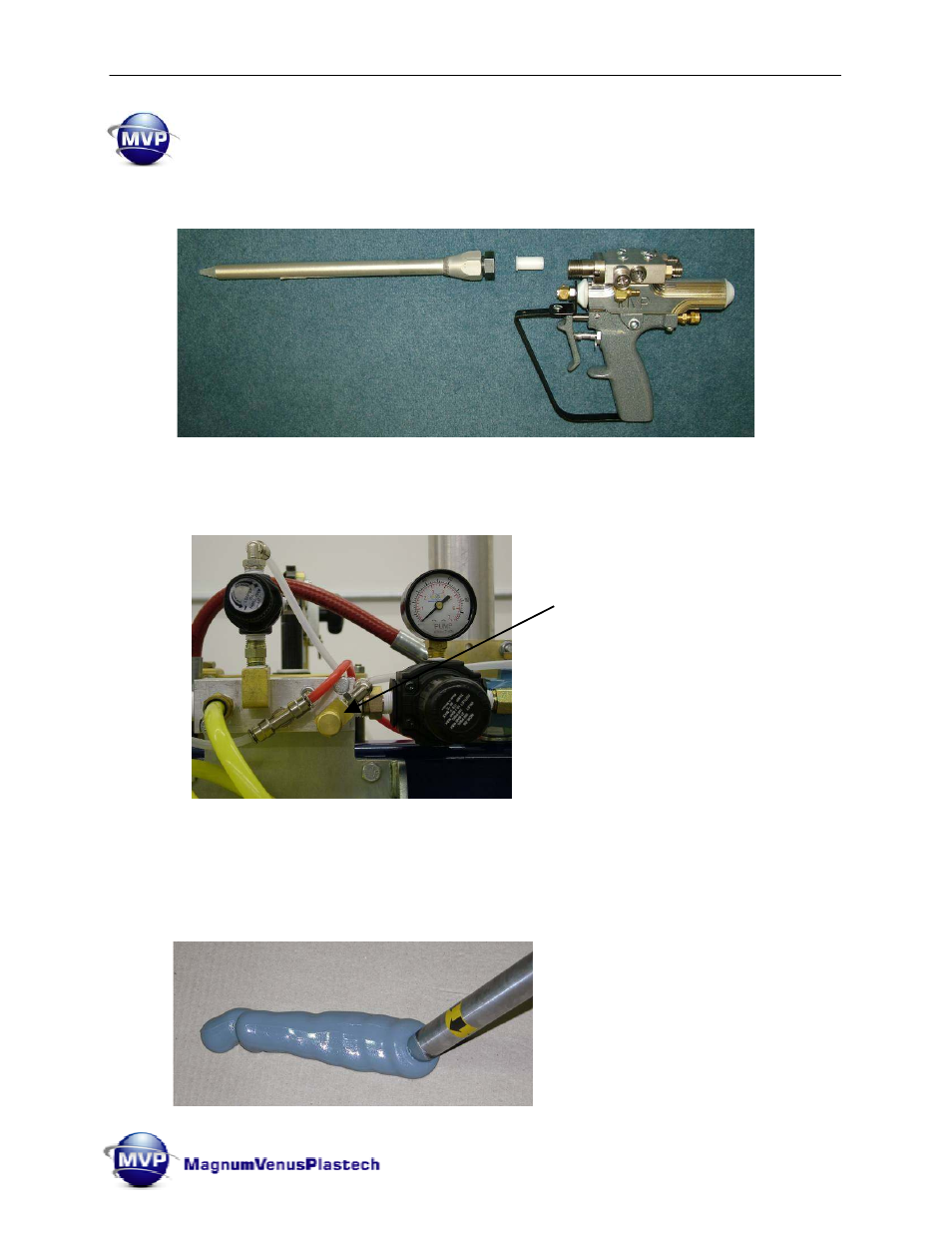

Mixing and Dispensing:
1. Attach static mixer to gun, apply lubricant to threads prior to attachment (see fig. 17)
Fig. 17
2. Trim the end of the disposable mixer to the desired diameter.
3.
To build fluid pressure on the pump, push the priming button located on the air manifold while slowly
adjusting the pump to the desired pressure (see figure 18).
Fig. 18
4.
Once pump has come to a stop, release priming button.
5.
Pull the trigger on the gun and allow mixed material to flow out of mixer into a container for 4-5 seconds
6. Begin dispensing a bead of material and check for mix by reviewing uniformity of color (see fig. 19).
Refer to the “Testing and Adjusting Manual” for more details.
Fig. 19
Priming Button
