VLS-2400 Series Fluid Section Manual
Rev. 08/2013 Page | 41
2.5
2
1.5
1
3
3.5
4

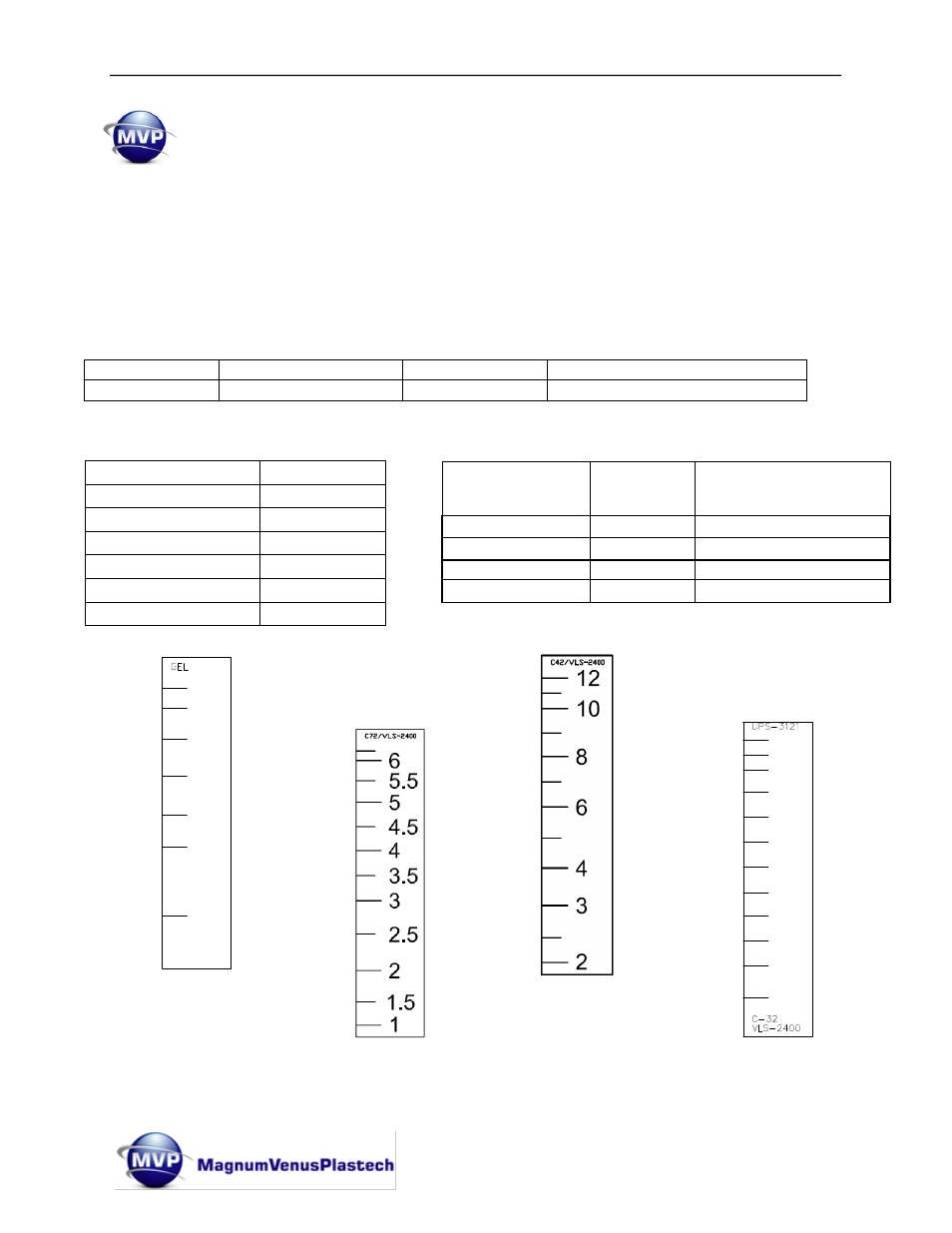

UPS-3116
VHPC-2000 Catalyst Pump
& VLS-2400 Fluid Section
25
22
20
17
16
14
12
10
6
5
UPS-3121
VHPC-3200 Catalyst Pump
& VLS-2400 Fluid Section
UPS-3124
VHPC-4200 Catalyst Pump
& VLS-2400 Fluid Section
UPS-3126
VHPC-1000 Catalyst Pump (C72)
& VLS-2400 Fluid Section
Fluid Section Information:
VLS-2400 Fluid Section is a part of a modular system that can fit a multiple of applications
and a multiple of configurations by changing a minimum of components. The VLS-2400 is
designed to deliver power, versatility and rugged construction for long lasting use. This fluid
section features Rapid Access Design (RAD) for easy access and maintenance. The VLS
fluid sections can be configured with both the UPS and Slave Arm metering drives.
Output Capabilities: Up to 1
– 6 lbs / min. (.45 – 2.7 kg / min.),
Fluid Section Pump Area (Sq. in) Stroke Length Displacement (in 3 ) / Stroke
VLS-2400 .604 (3.9 sq. cm) 4” (101.6 mm) 2.42 (39.16 cc) (.04 liter)
Catalyst Pump Percentage Chart Powerhead to Fluid Section Ratio
Power Head
Diameter (in.)
VLS-2400 Air Consumption
VPH-2500 7 to 1
VPH-3250 12 to 1
VPH-4250 22 to 1 5-7cfm (.141-.2 m
3
/min.)
VPH-5000 30 to 1
Catalyst Pump VLS-2400
VHPC-2000 1% – 4 %
VHPC-1000 1% - 6%
VHPC-4200 2% - 12%
VHPC-3200 5% – 25%
VHPC-2200 11% - 39 %
VHPC-1200 14% - 50%
