VLS-2400 Series Fluid Section Manual
Rev. 08/2013 Page | 30
Magnapak Fluid Sections:
The Magnapak fluid sections replace the packing set and piston cups with a different setup.
Most of the procedures will be the same as above procedure except as shown below.
1. Lightly grease the Cup Seals (VLS-2440) with Red Grease (6706-2-1).
2. Install the two Cup Seals (VLS-2440) into the top of the Outlet Body.
3. Pack the Rod Bushing (VLS-2434) with Red Grease (6706-2-1) and install into the Outlet
Body on top of the Cup Seals.
4. Lightly grease the threads of the Retaining Nut (VLS-2431) and thread into the top of the
Outlet Body snug.
5. Install the Piston Seal (VLS-2433) on to the Piston Body and thread on the Piston Nut.
Note: use Patriot Oil (PAT-LS-OIL) in the Packing nut for the Magnapak Cup Seal
set (TLS-ISO-800 if appropriate).
o PAT-LS-OIL 8 ounces
o PAT-LS-OIL-1GL 1 Gallon
o PAT-LS-OIL-5GL 5 Gallons

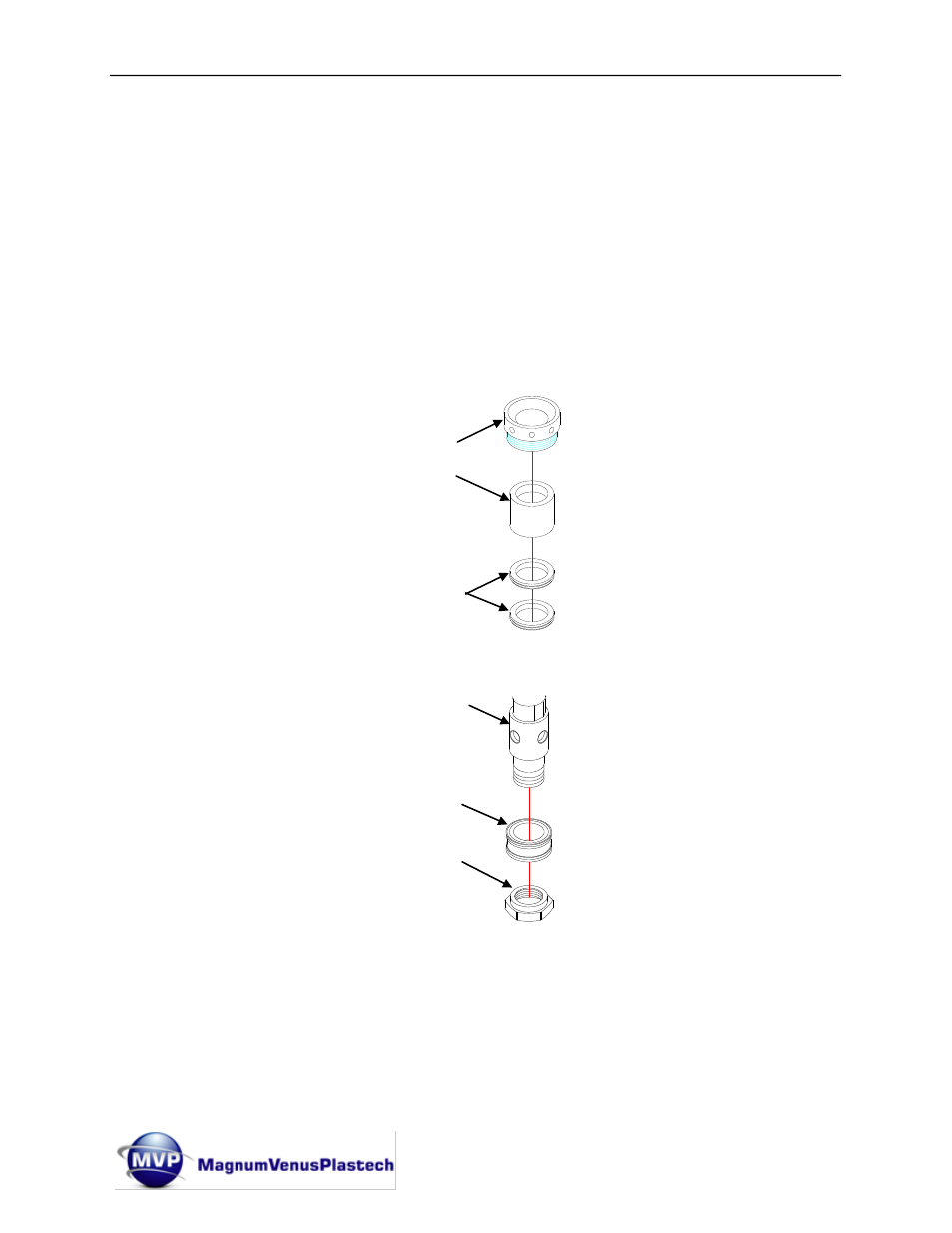

Retaining Nut
Bushing
Cup Seal
Piston Body
Piston Seal
Piston Nut
