VLS-2400 Series Fluid Section Manual
Rev. 08/2013 Page | 27
Assembly of Fluid Section:
Note: some of the part numbers below will be different depending on which fluid section
you are working on
– refer to a current parts drawing for the assembly you are working on.
Note: It is important to use the correct grease and lubrication for the material that will be
used in the pump
– use ISO grease and lubrication for pumps that pump ISO material.
1. Insert the ten Wave Springs (VLS-2410) into the Outlet Body (VLS-2401).
2. Use MVP Red Grease (6706-2-1) to fill the female side of each of the four Packing
(VLS-2405) and the Female Compression Ring (VLS-2404).
3. Place the Packing Set Assembly (VLS-2405) on top of the Male Compression Ring
(VLS-2406). Set the Female Compression Ring (VLS-2404) on top of the Packing
Set.
4. Insert this assembly into the Outlet Body (VLS-2401) with the female side of the
Packing set facing down. See fig. 3.1.

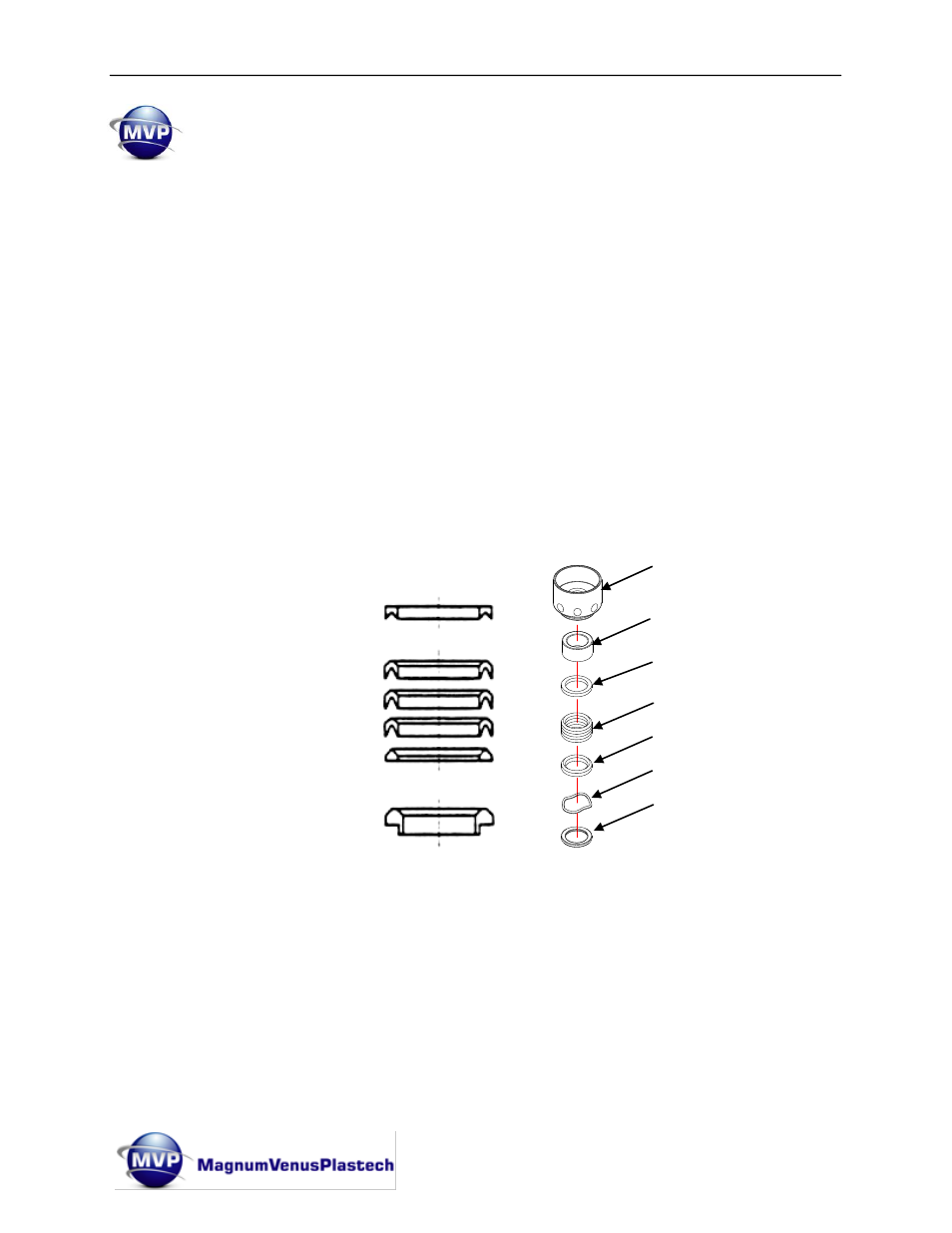

Fig. 3.1
5. Wipe a light coating of Red Grease (6706-2-1) onto the Guide Bearing (VLS-2403)
and insert into the Outlet Body (VLS-2401). Screw the Packing Nut (VLS-2407) into
the Outlet Body only two or three threads.
Note: Do not tighten the Packing Nut at this time
6. Smear Red Grease (6706-2-1) on the inside both Piston Cups (VLS-2415).
Packing Nut
Guide Bearing
Female Compression Ring
Packing Set
Male Compression Ring
Wave Spring Set - 10
Spring Support Ring
Female Compression Ring
VLS-2404
Piston Rod Packing
VLS-2405
Male Compression Ring
VLS-2406
