Patriot 10:1 Adhesive System Operations Manual
Rev. 03/2014 Page | 26

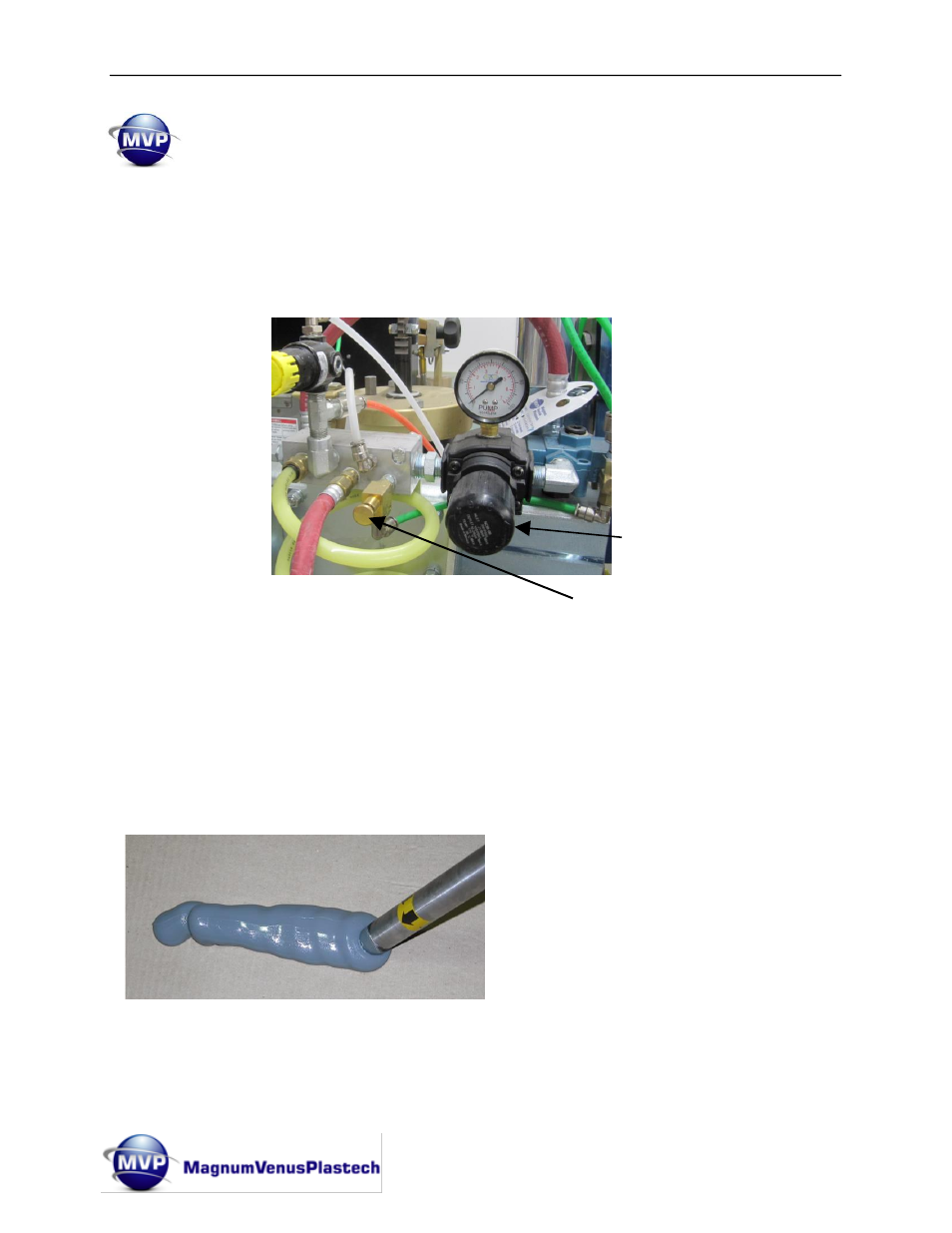

Mixing & Dispensing:
1. Attach static mixer to gun, apply lubricant to threads prior to attachment,
2. Trim the end of the disposable mixer to the desired diameter.
3.
To build fluid pressure on the Adhesive pump, push the priming button located on the air manifold
while slowly adjusting the pump to the desired pressure (see figure 22).
4.
Once pump has come to a stop, release priming button.
5.
To build fluid pressure on the Activator Pump push the priming button located on the air manifold
while slowly adjusting the pump to the desired pressure. The Activator Pump pressure should be
set to a pressure that will properly feed the Activator Metering pump too much pressure can cause
inaccurate metering.
6.
Pull the trigger on the gun and allow mixed material to flow out of mixer into a container for 4-5
seconds
7. Begin dispensing a bead of material and check for mix by reviewing uniformity of color (see fig. 23).
Refer to t
he “Testing and Adjusting Section” for more details.
Priming Button
Pump Regulator and Gauge
Figure 22
Figure 23
