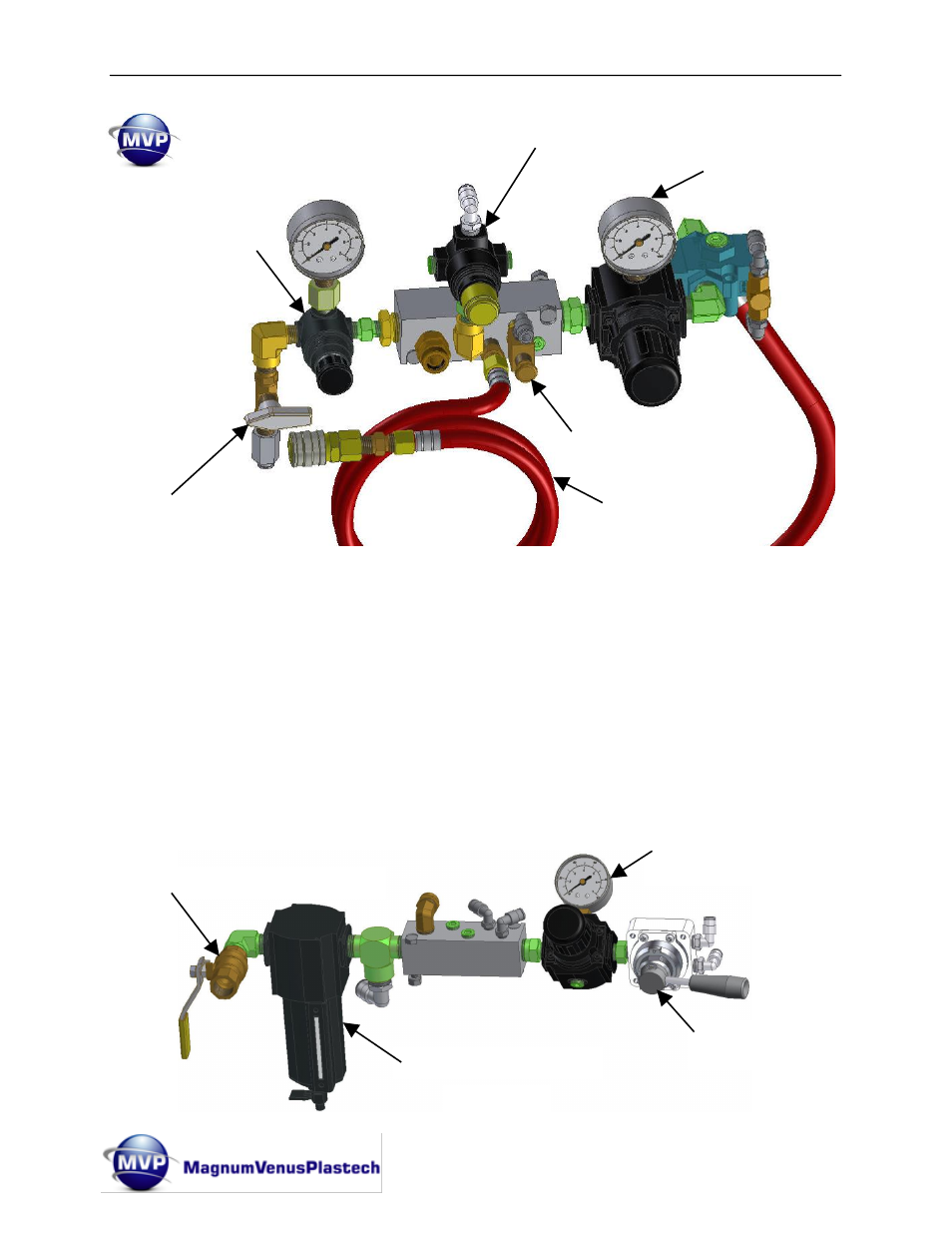

Controls:
Adhesive Pump Pressure & Regulator: used to regulate the pressure to the Adhesive pump
powerhead and thus fluid pressure.
Adhesive Pump Priming Button: used to activate the pump with pulling the trigger on the gun
Adhesive Ram Extraction Pressure & Regulator: used to set and monitor the air pressure being used
to push the ram piston out of the pail of material. This air is injected between the ram piston and
adhesive to push the pail down and the piston up and out of the pail.
Adhesive Ram Extraction On/Off Valve: turns On/Off the air pressure for Ram Extraction
Adhesive Ram Pressure & Regulator: used to set and monitor the air pressure for the Ram pistons –
pressure pushing the piston down / up for the adhesive pump.
Adhesive Ram Direction Control: applies the pressure to remove or push the piston into the adhesive
material. There are three positions Up, Off and Down.
Adhesive Ram Extraction
Pressure & Regulator
Adhesive Ram Extraction
On/Off Valve
Adhesive Ram Pressure
& Regulator
Adhesive Ram
Directional Control
Air Filter and Water Trap
Main Air Supply On/Off Ball Valve
Figure 6
Figure 7
Priming Button –
Adhesive Pump
Adhesive Pump
Regulator and Gauge
Air Purge Regulator
Charging Hose
