Priming the Unit:
Priming of Unit Air and Solvent:
1. Close the main inlet air valves on the main air manifolds (see fig. 4 & 7)
2. Turn all regulators counterclockwise to full off and close all ball valves on the unit
3. Make sure Ram / Air lift control levers are in “neutral” (see fig12)
4. Open main air feed ball valve and listen for air leaks. The ball valve has a safety relief port and air
will leak from the port until the valve is fully open or closed (see fig. 4 & 7).
5. Secure all fittings and correct air leaks if found.
6. Fill Flush Tank with appropriate cleaning agent at least 3/4 full.
7. Close the relief valve on the top of the Flush Tank.
8. Slowly turn up regulator pressure to Flush Tank to 50 -60 psi (3.5 – 4 bar) (see figure 13).
9.
Secure all solvent leaks.
10. Test flush system on gun block, by pressing the flush buttons, test both solvent and air purge (see fig. 5)
Flush Tank Regulator and Gauge
Flush Tank pressure relief valve

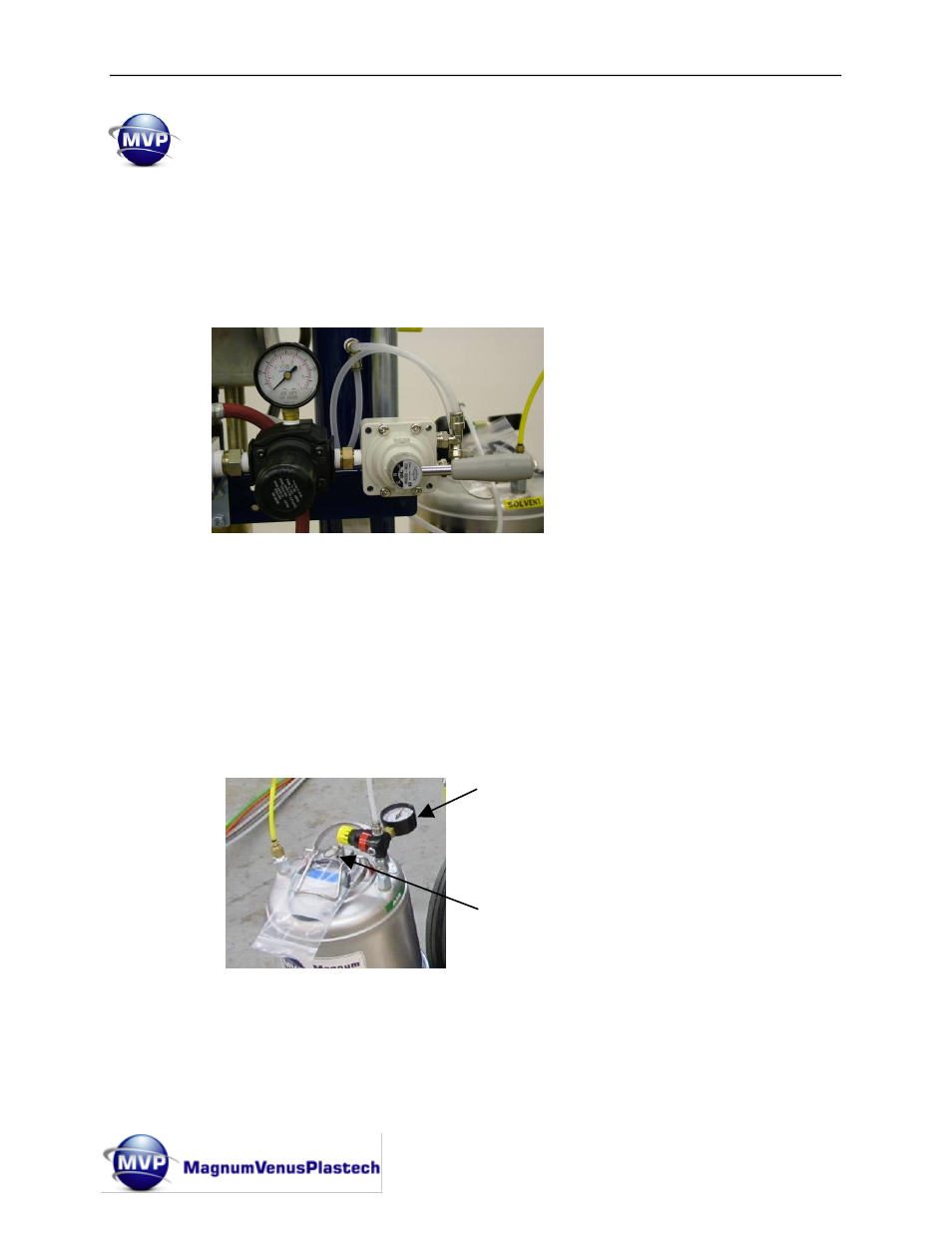

Figure 12
Figure 13
