Priming the adhesive and activator – Magnum Venus Plastech PATRIOT 10:1 ADHESIVE SYSTEM User Manual
Page 23
Patriot 10:1 Adhesive System Operations Manual
Rev. 03/2014
Page | 23

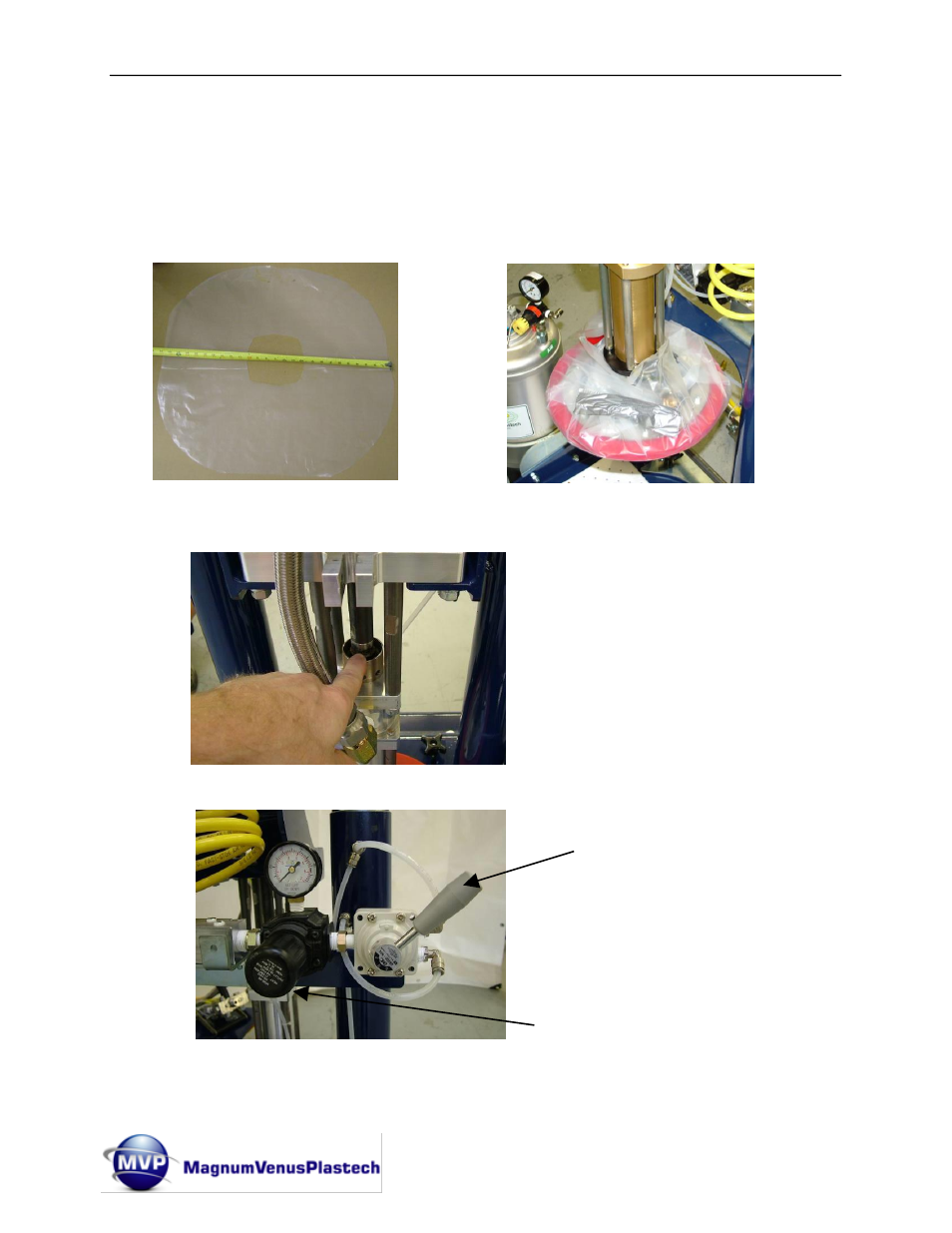

Priming the Adhesive and Activator:
1.
It is recommended to install a plastic boot on the piston seals to keep them clean and protect them
from the material being dispensed. Using some Polyethylene
plastic cut a circle approximately 26” -
28” in diameter and a circular hole in the center approximately 6” in diameter.
2.
Secure the plastic boots to the Ram Pistons as shown below.
3.
Fill the Adhesive pump and Activator pump solvent cups with throat seal liquid (see figure 16).
Figure 16
4.
Move the ram up/down valve handle to the up position (see figure 17).
Figure 17
NOTE:
Do not install static mixer tube to gun at this time.
Ram UP/DOWN Valve
Ram UP/DOWN Pressure Regulator
Figure 14
Figure 15
