Controlled Products Systems Group 0-205679 User Manual
Page 51
Device #1
Device #2
Door #1
Door #2
NOTE: The maximum
number of devices on a
single network is 32.
RS-232 to RS-485
Converter or IEI
Gateway
P5
P1
P3
P2
P1
P3
P2
P5
P4
P4
2 - Brown (Data A)
3 - White (Data B)
4 - Green (Data GND)

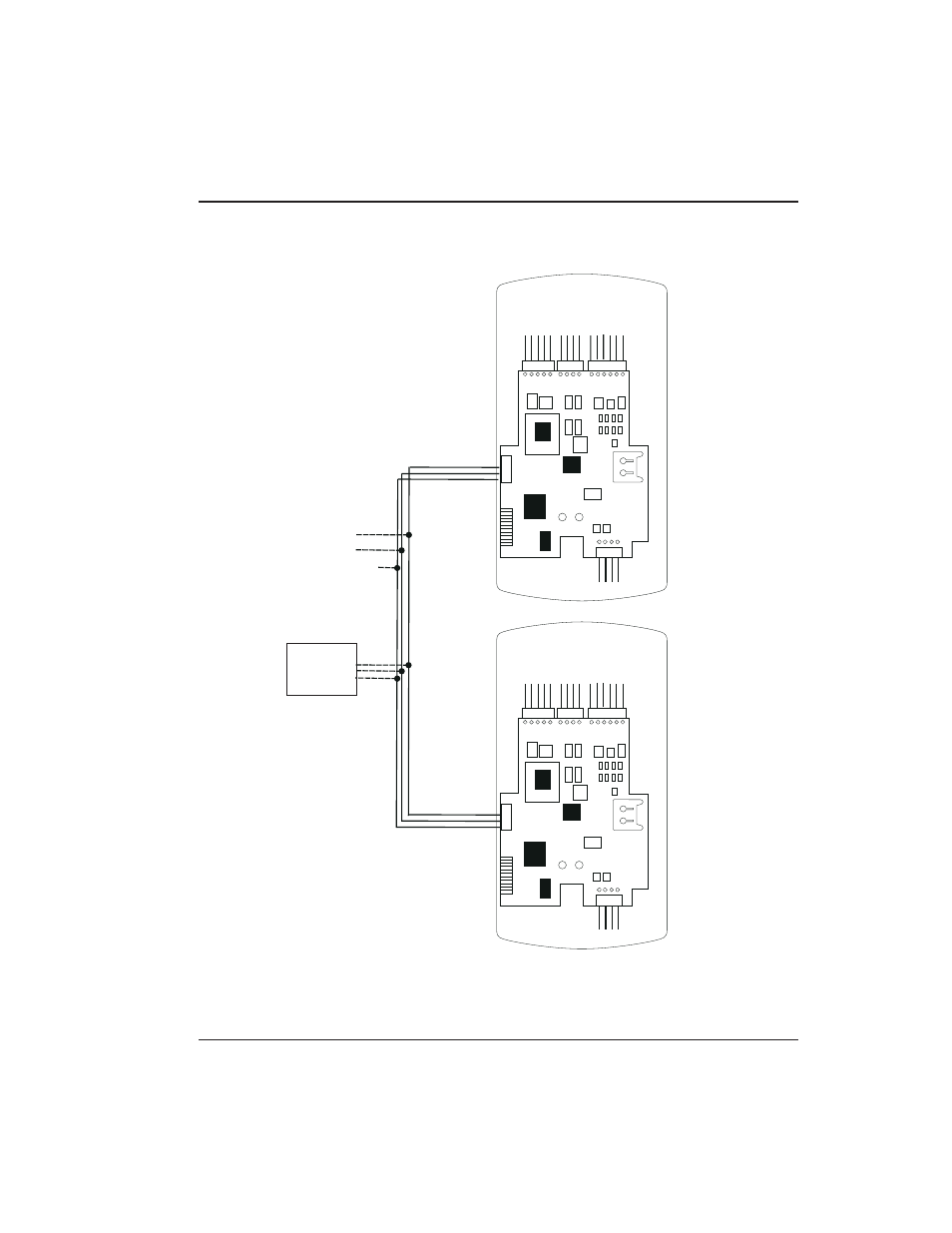

Figure 3-10 Networking Multiple prox.pad plus
Units Together
3.3 Networking Multiple prox.pad plus Units Together
Chapter 3: Wiring
prox.pad plus Install/Program. Manual, PPP, D4b
3-15
Part No. 6105679, Rev. 1.1
