Enter the following on the keypad:

46 # 00000 # 00000 # **

The yellow LED flickers for 10 seconds and then
blinks slowly.

4. Once the memory set-up is complete, re-assemble

the unit.

NOTE:

CONNECTING

DOOR

LOOP

IN-

PUT



Before powering up the prox.pad plus unit,

connect the Door Loops input to the “Loop Com-
mon.” This prevents “Forced Door” or “Propped
Door” conditions from developing upon power-up.

FORGET MASTER CODE

PCB

MASTER

CODE

SWITCH
(PROGRAM
SWITCH)
(ON REAR SIDE
OF PC BOARD)

CONTROLLER
HOUSING

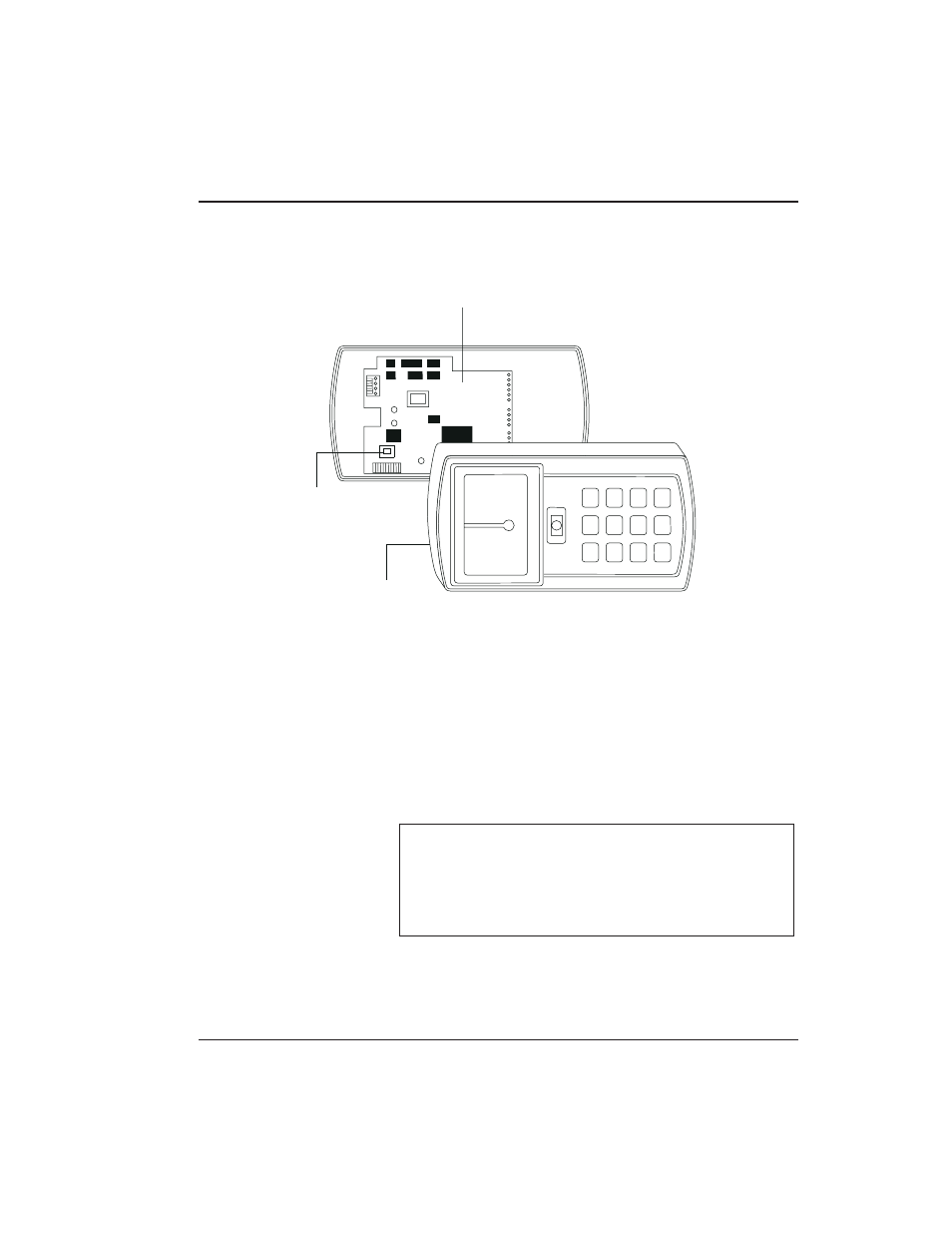

Figure 2-7 Program Button Location on Main
Circuit Board

2.6 Defaulting prox.pad plus Memory

Chapter 2: Installation

prox.pad plus Install/Program. Manual, PPP, D4b

2-17
