INTRODUCTION
» OPERATOR SPECIFICATIONS + CARTON INVENTORY + HARDWARE INVENTORY
OPERATOR SPECIFICATIONS
This model is intended for use in vehicular swing gate applications:
Gate Classifications: CLASS I & II
Main Supply (Motor): 12 Vdc
Accessory Power: 12 V nominal Class II battery
voltage source is limited to:
• Solar or AC Cable up to
50 feet - 500 mA
• AC Cable 50 feet up to
250 feet - 250 mA
• AC Cable 250 feet up to
1000 feet - 100 mA
NOTE: Increased accessory power drawn from
the operator will shorten the battery life.
Current Consumption: 5 Amps at 120 Vac
Battery Charger Supply: 13.5 Vac, 30 Va, Direct Plug in
Power Supply, Class II Compliant
Heater Draw (Optional): 325 watts
Main AC Supply: 120 Vac
DC Absorbed Power: 2 Amps
Solar Power Max: 12 V at 30 watts max.
Maximum Gate
Weight/Length:
400 lbs. / 16 ft. long
600 lbs. / 12 ft. long
700 lbs. / 10 ft. long
800 lbs. / 8 ft. long
1000 lbs. / 6 ft. long
Daily Cycle Rate using
transformer power:
250 cycles/day
Maximum Gate
Travel Range:
115 degrees
Temperature: -20°C to 40°C (-4°F to 104°F)
without Heater
-40°C to 40°C (-40°F to 104°F)
with Heater
Control Board Fuse: 30 Amp (2)
CARTON INVENTORY
• Operator
• Operator arm assembly
• Transformer
• Documentation Packet
• Battery 12 Vdc 7AH (1)
• Keys (2)
HARDWARE INVENTORY
• Warning Signs (2)
• Warranty Card

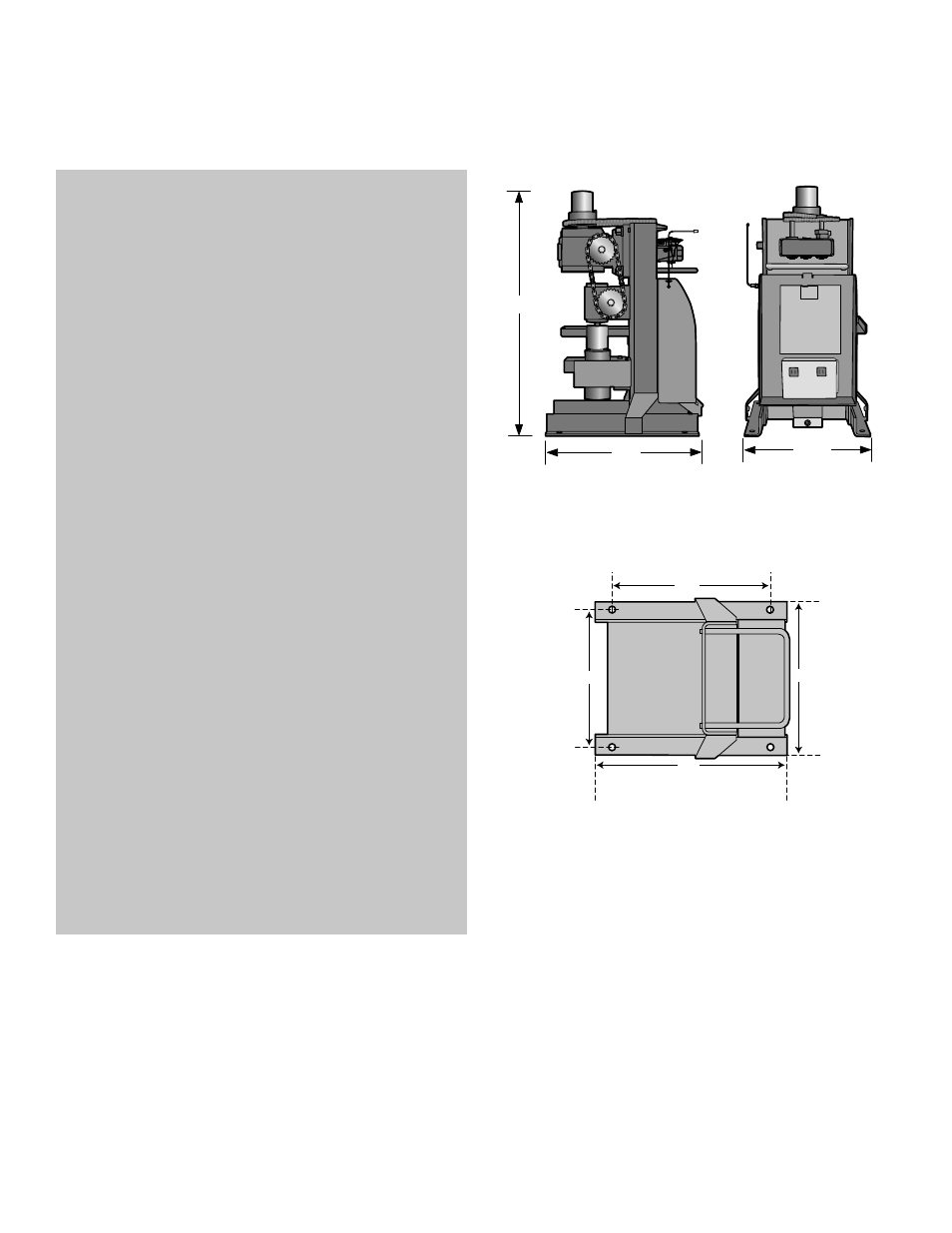

SIDE VIEW FRONT VIEW
13.6"
27.66"
17"
MOUNTING FOOTPRINT
14"
12.2" 13.6"
17"
