INSTALLATION
» STANDARD INSTALLATION

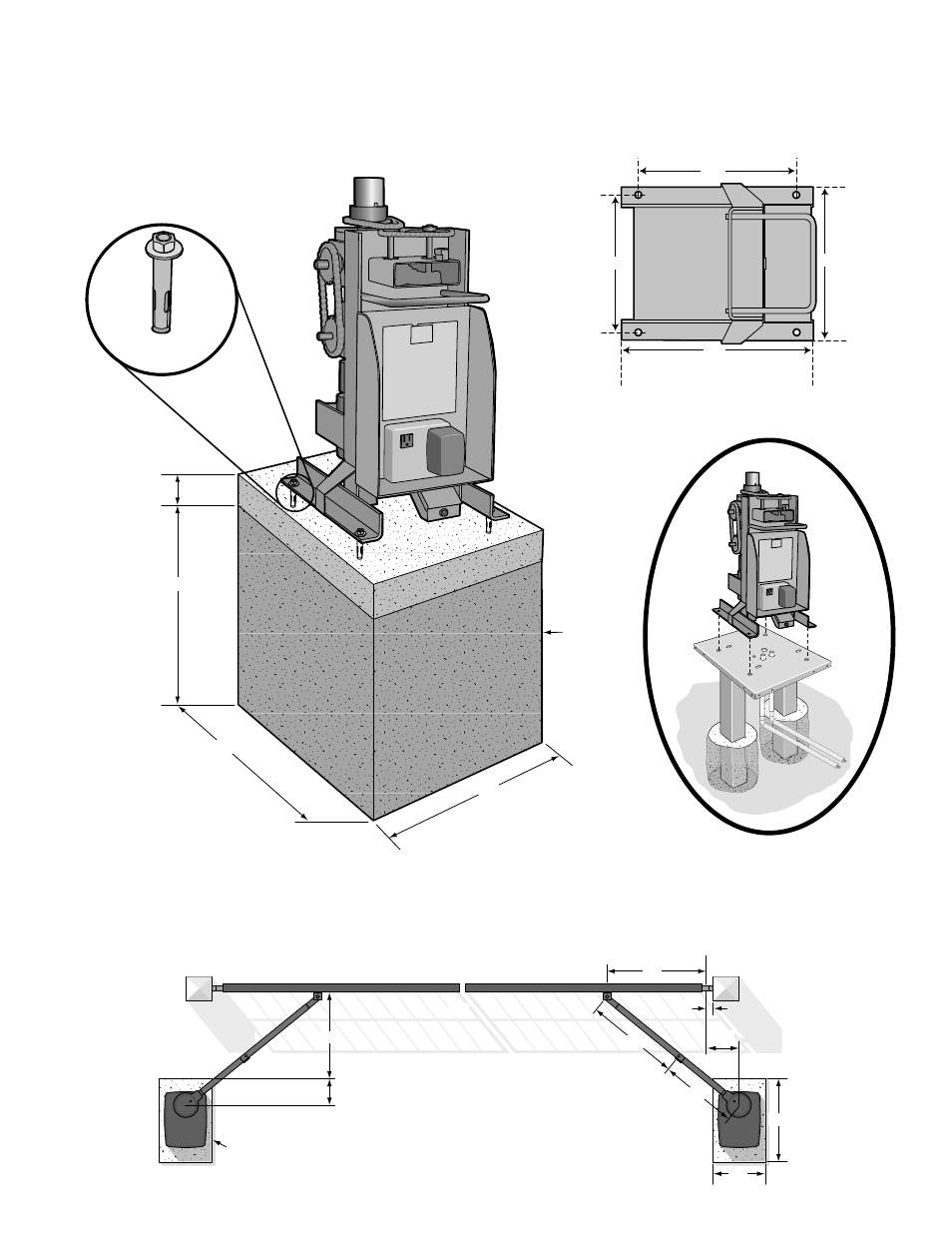

CONCRETE PAD AND OPERATOR ATTACHMENT
4 Concrete Anchors
1/2" x 3 1/2"
6" Above Ground
MOUNTING FOOTPRINT
14"
12.2" 13.6"
17"
30" Below Ground
Concrete Pad
28"
24"
Post
25"
10"
Concrete Pad
Short Arm
29.5"
35.5"
Long Arm
14"
2"
24"
28"
26"
Hinge Center
OUT
IN
SAMPLE STANDARD INSTALLATION
NOTE: An alternative
to a concrete pad is to
post mount the
operator (refer to
accessories).
