9
INSTALLATION
» SITE PREPARATION + TYPES OF INSTALLATIONS
SITE PREPARATION
BEFORE installing the operator, be sure to check the following:
• Gate is constructed and installed according to ASTM F2200 standards
• Gate fits specifications of operator
• National and local building codes
• Earth ground rod
• UL approved conduit for low and high voltage
• Mounting considerations post or pad
• Operator placement
SAFETY CONSIDERATIONS:
• Warning signs
• Entrapment devices such as loops, contact sensors and non-contact sensors

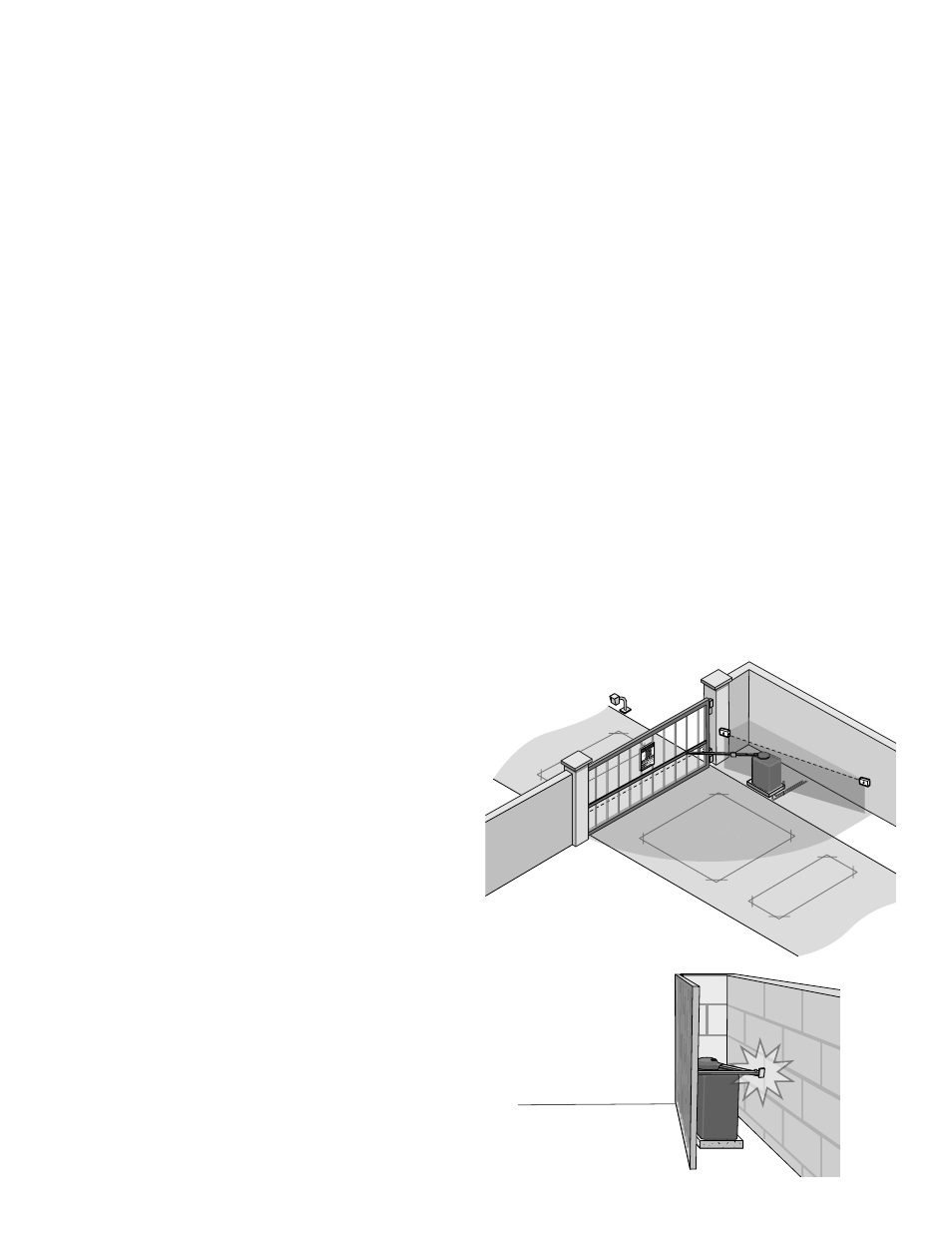

STANDARD INSTALLATION
The illustration is an example of a standard installation.
Outside Safety
Loop
Center
Loop
Inside Safety
Loop
Outside Property
Inside Property
Outsid
Center
Loop
Entrapment Danger
COMPACT INSTALLATION
The illustration is an example of a compact installation. If the operator arm will hit
an obstruction when the gate is in the open position follow the directions for Compact
Installation (pages 12-14).
TYPES OF INSTALLATIONS
IMPORTANT: There are many factors to consider when installing this gate operator, such as gate size and site layout. The following instructions and illustrations should be
used as a general guide so please note that your installation may be different.
