IF THE LIMITS WILL NOT PROGRAM
Disconnect the operator by releasing the handle on the operator arm.
Manually close the gate.
Loosen the screw on the learn limit cam and rotate the learn limit cam so it is
touching the learn limit switch. Tighten the screw.
Tighten the handle on the operator arm.
Repeat for second operator. Program the limits again.
1
2
3
4
Learn Limit Cam
Screw
Learn Limit Switch
ADJUSTMENT
» LEARN LIMITS

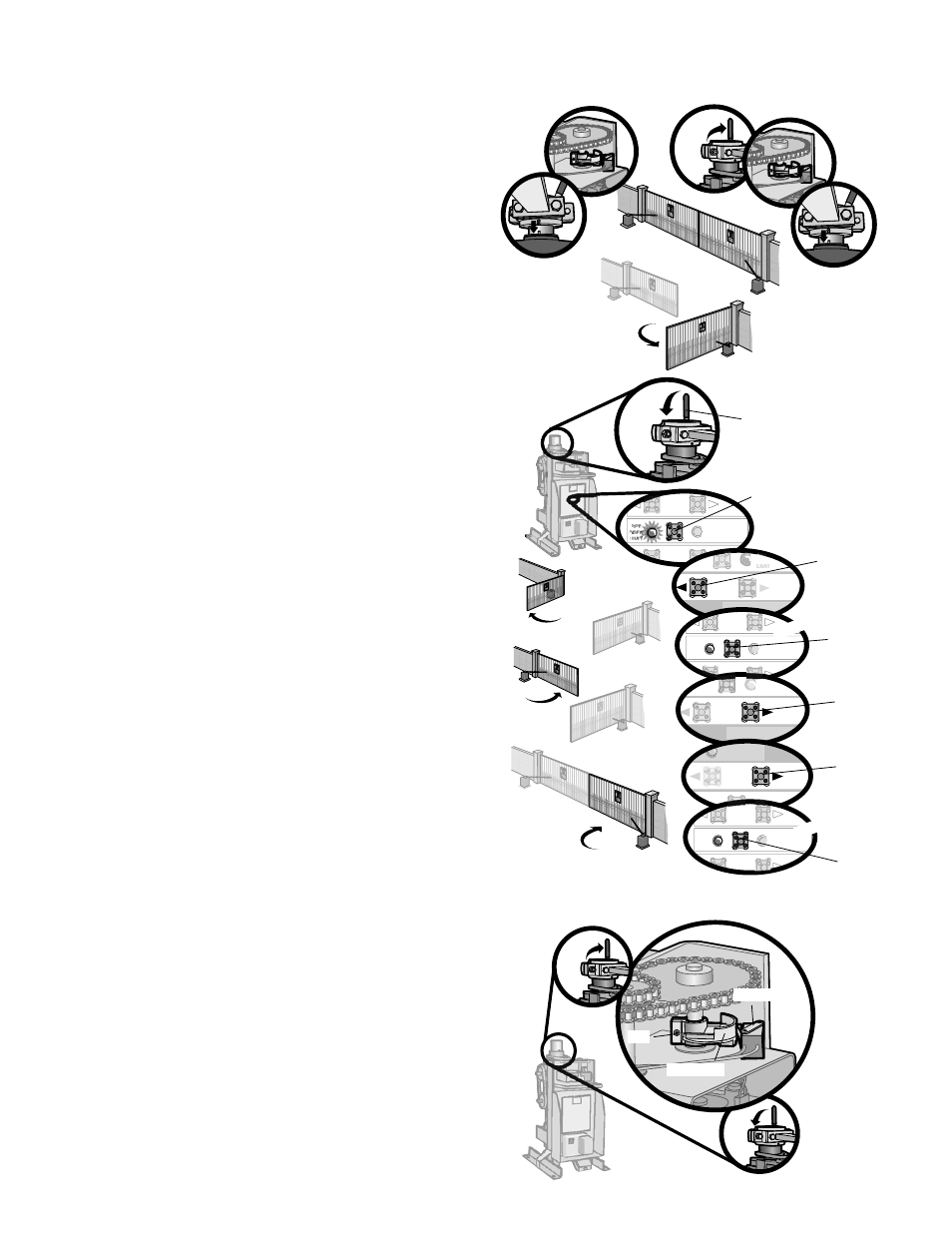

DUAL GATE (RIGHT-SIDE PRIMARY OPERATOR)
Close the gates. Make sure the operator arm is properly seated on the output
shaft (the pin must fit into the slot) of both operators and the learn limit cam is
touching the learn limit switch on both operators. Make sure the handle is
released on the operator arm of the PRIMARY operator ONLY.
PROGRAM OPEN
Manually open the primary gate.
Tighten the handle on the primary operator.
Press and release the LEARN LIMITS button. The SET OPEN LIMIT LED will blink.
Press and hold the GATE 2 left button to move the left operator to the desired
OPEN position. When the gate is in the desired position, release the button.
NOTE: The GATE 2 right and left buttons can be used to jog the gate back and
forth as needed.
Press and release the LEARN LIMITS button. The control board will beep and the
SET CLOSE LIMITS LED will blink.
PROGRAM CLOSE
Press and hold the GATE 2 right button to move the left operator to the desired
CLOSED position. When the gate is in the desired position, release the button.
NOTE: The GATE 2 right and left buttons can be used to jog the gate back and
forth as needed.
Press and hold the GATE 1 right button to move the right operator to the
desired CLOSED position. When the gate is in the desired position, release the
button.
NOTE: The GATE 1 right and left buttons can be used to jog the gate back and
forth as needed.
Press and release the LEARN LIMITS button. The control board will beep and the
SET CLOSE LIMITS LED will stop blinking.
Programming is now complete. If the SET OPEN LIMIT LED continues to blink, repeat
programming. If the problem continues, see below.
Test the limits by pressing the SINGLE BUTTON to open and close the gate.
