WIRING
» PRIMARY / SECONDARY OPERATORS
PRIMARY/SECONDARY OPERATORS
NOTE: Use the Dual Gate Wiring Kit. Refer to the accessory page for more
information.
Before digging, contact local underground utility locating companies. Choose one
operator to be the primary and the other operator to be the secondary.
NOTES:
• The gate with the longer travel span must be set as the primary operator
(GATE 1).
• If one gate is overlapping the other (an ornamental overhang, maglock or solenoid
lock) consider which gate needs to open/close first and plan accordingly. The gate
that opens first MUST be the primary operator (GATE 1).
The control board in the secondary operator is not used.
Trench across driveway to bury the extension cable.
Disconnect the terminal block connector (with the attached label) from the end
of the extension cable. Thread the extension cable through the bottom of the
primary operator (using the watertight connectors) and reconnect the extension
cable wires to the terminal block connector.

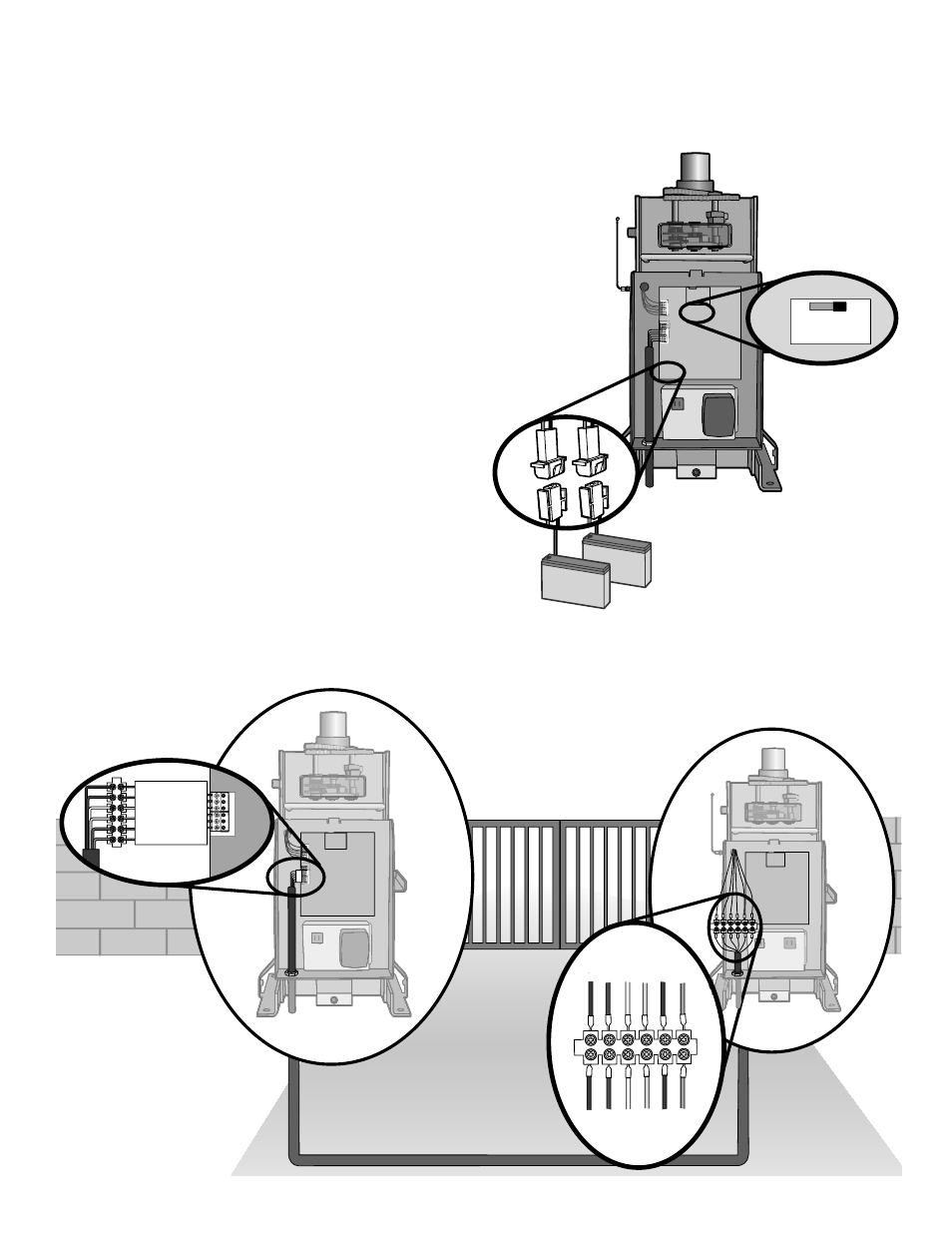

Connect the terminal block (with the attached label) to the GATE 2 connector of
the primary operator’s control board.
Disconnect the terminal block connector from the other end of the extension
cable. Thread the extension cable through the bottom of the secondary
operator (using the watertight connectors) and reconnect the wires to the
terminal block connector.
Disconnect the wires from the GATE 1 connector on the secondary operator and
connect them to the terminal block connector.
Move the battery from the secondary operator to the primary operator.
Connect the plugs from the batteries to the connectors on the control board.
If one gate overlaps the other, set the LOCK/BIPART DELAY switch to the ON
position on the primary control board. Factory default setting is OFF.
