A combined total of 50 remote controls and keyless entry PINs can be programmed
to the operator. For highest level of security, we recommend the Security
✚ ® line of
products. Refer to Accessories.

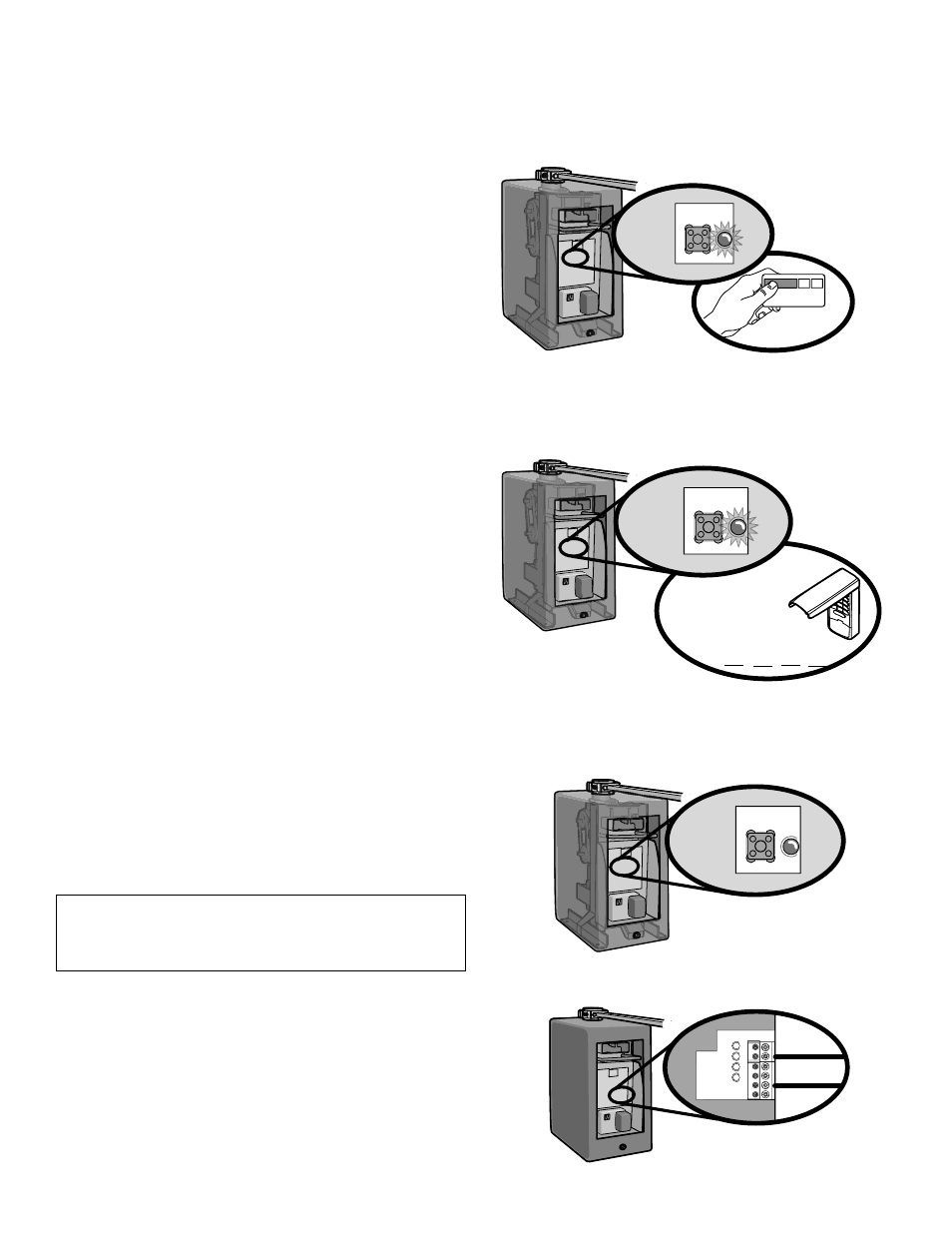

TO ADD OR REPROGRAM A REMOTE CONTROL
(NOT PROVIDED)
Press and release the LEARN XMITTER button (LED will light).
Press the remote control button. The LED will flash and the alarm output will
activate twice.
To program additional remote controls, repeat the steps until all the remote controls
are programmed.
TO ADD, REPROGRAM OR CHANGE A WIRELESS
KEYLESS ENTRY PIN (NOT PROVIDED)
Press and release the LEARN XMITTER button (LED will light).
Enter a 4-digit personal identification number (PIN) of your choice on the
keypad.
Press the ENTER button on the keypad. The LED will flash and the alarm output
will activate twice.
ERASE ALL CODES
Press and hold the LEARN XMITTER button on the control board until the learn
indicator light goes out (approximately 6 seconds). All previous codes are now
erased.
1
2
1
2
3
1
LEARN
XMITTER
2
1
LEARN
XMITTER
PIN Number
?
2
1
? ? ?
LEARN
XMITTER 1
NOTICE: To comply with FCC and or Industry Canada (IC) rules, adjustment or modifications of this receiver and/or transmitter are
prohibited, except for changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.
Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
PROGRAMMING
» REMOTE CONTROLS + KEYLESS ENTRY + ERASE ALL CODES + ALTERNATE RADIO
RECEIVER INSTALLATION
ALTERNATE RADIO RECEIVER INSTALLATION
The receiver should be connected to the SINGLE BUTTON input and the CTRL
PWR input. 1
CONTROL
INPUTS
OPEN
SINGLE BUTTON
RESET
STOP
CTRL PWR
CTRL PWR
