INSTALLATION
» COMPACT INSTALLATION ONLY

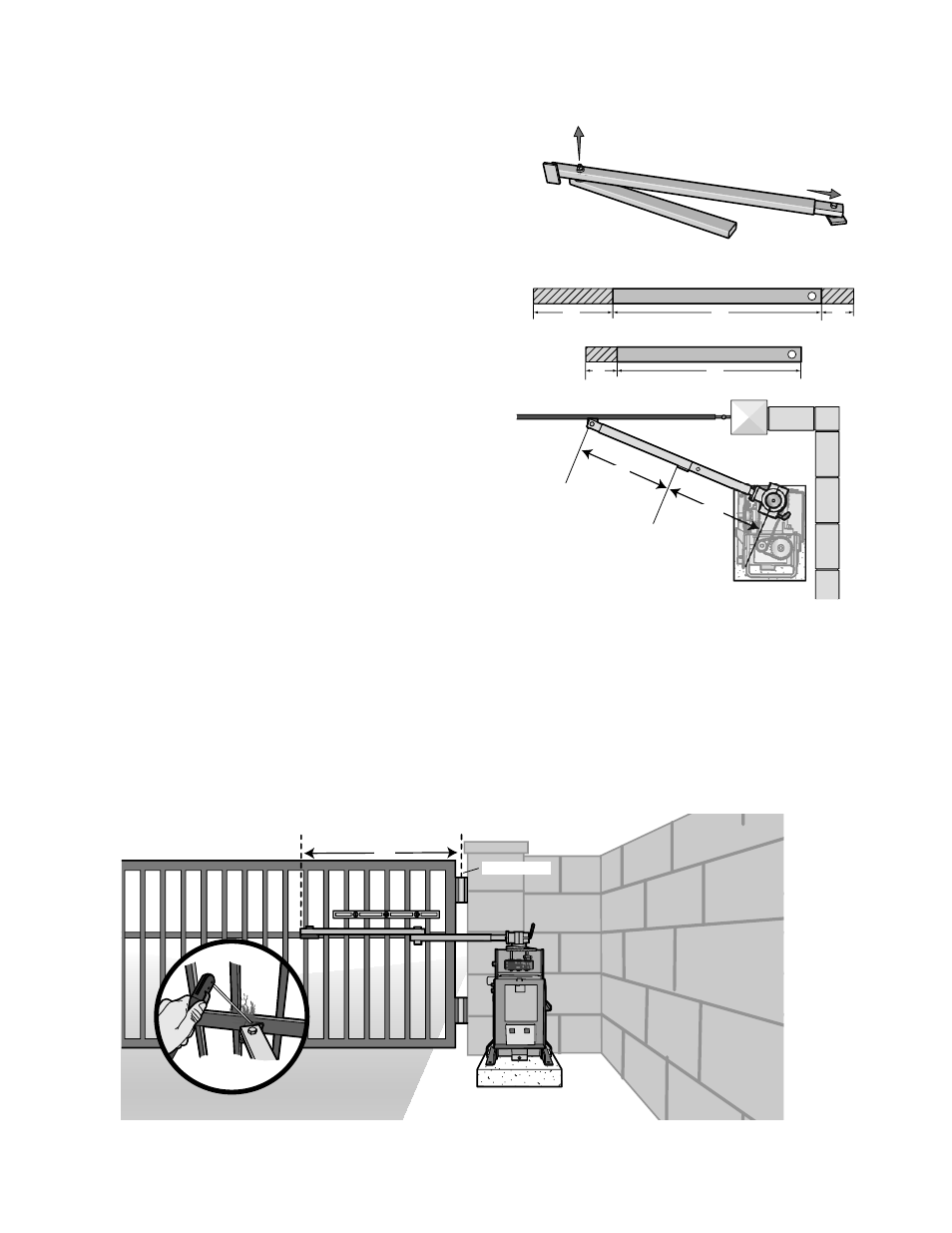

SHORTEN THE OPERATOR ARM
For a compact installation the operator arm will have to be shortened.
Take the operator arm apart and remove the inner sleeves from the
outer tubing.
Cut the outer tubing of the operator arm to the lengths shown.
Put the arm back together and adjust the arm to the measurements
as shown.
1
2
3
1
2
3
CUT LONG ARM SECTION
SHORT ARM SECTION
CUT
CUT
10" 22" 4"
20" 4"
23"
25-1/2"
POSITION THE GATE BRACKET
NOTE: It may be necessary to attach horizontal reinforcement to the gate before
attaching the gate bracket.
Measure 33 inches from the gate hinge center.
Make sure the operator arm is level and tack weld the gate bracket in this
position.
1
2
Tack weld
Gate Hinge Center
33"
1
2
