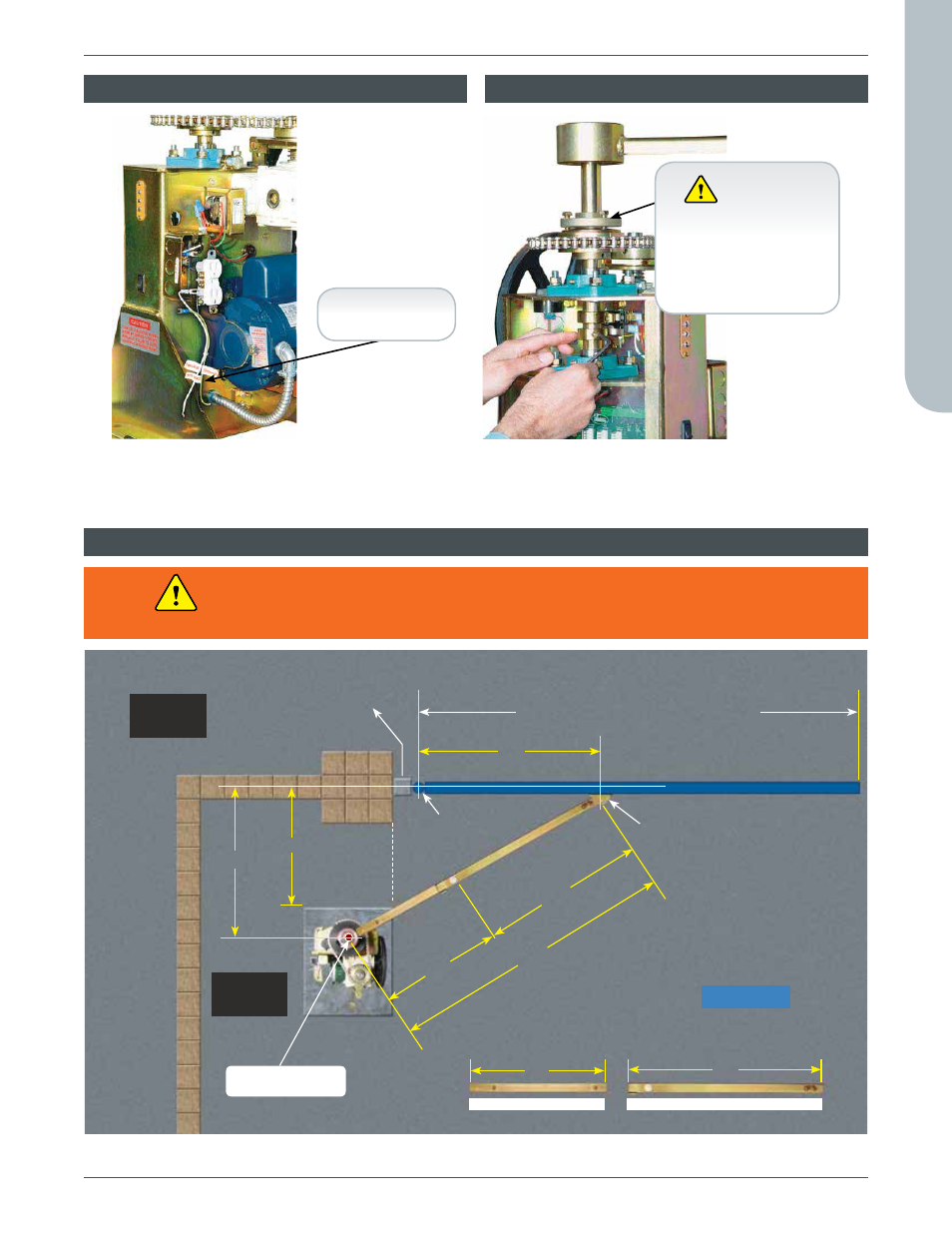

STANDARD INSTALLATION FOR gATES FROM 8’ TO 14’ IN LENgTh
hOOk UP ELECTRICAL POwER gATE TRAvEL ADjUSTMENT
Steel Square Tubing
4x4
Supplied Bracket Gate Rotation
Center (Hinge)
44”
8’ to 14’ Maximum Gate Length
Gate Closed
39”
67 1/2”
28” 38”
28 1/2
SHORT ARM DIM. LONG ARM DIM.
36”
28”
OPERATOR
PIvOT ShAFT CENTER
Outside
Property
Inside
Property
Do not exceed the specifications. The warranty on your unit will be void if the
installation exceeds the recommended specifications.
WARNING
Figure 5
Note: Eliminate outlet leads. Hookup your
electrical 15 amp wires direct to outlet.
Gate travel is adjusted by loosening the limit
cams and positioning them until proper gate
travel has been achieved.
OUTLET LEAdS
CAUTION
Clutch tension bolts
need to be tightened to
a minimum of 40 lbs.
above weight of gate in
order to avoid slipping.
