Gate Opened
10”
20’
20” minimum space
required between, open
gate and wall for this
compact installation.
Outside
Property
Inside
Property
Steel Square Tubing
4x4
Supplied bracket Gate Rotation
Center (Hinge)
27”
Maximum Gate Length 14’
Gate Closed
24 1/4”
44 1/4”
32” 42”
20”
SHORT ARM DIM. LONG ARM DIM.
27”
19 1/2”
OPERATOR
PIvOT ShAFT CENTER
Outside
Property
Inside
Property Figure 8
Figure 9

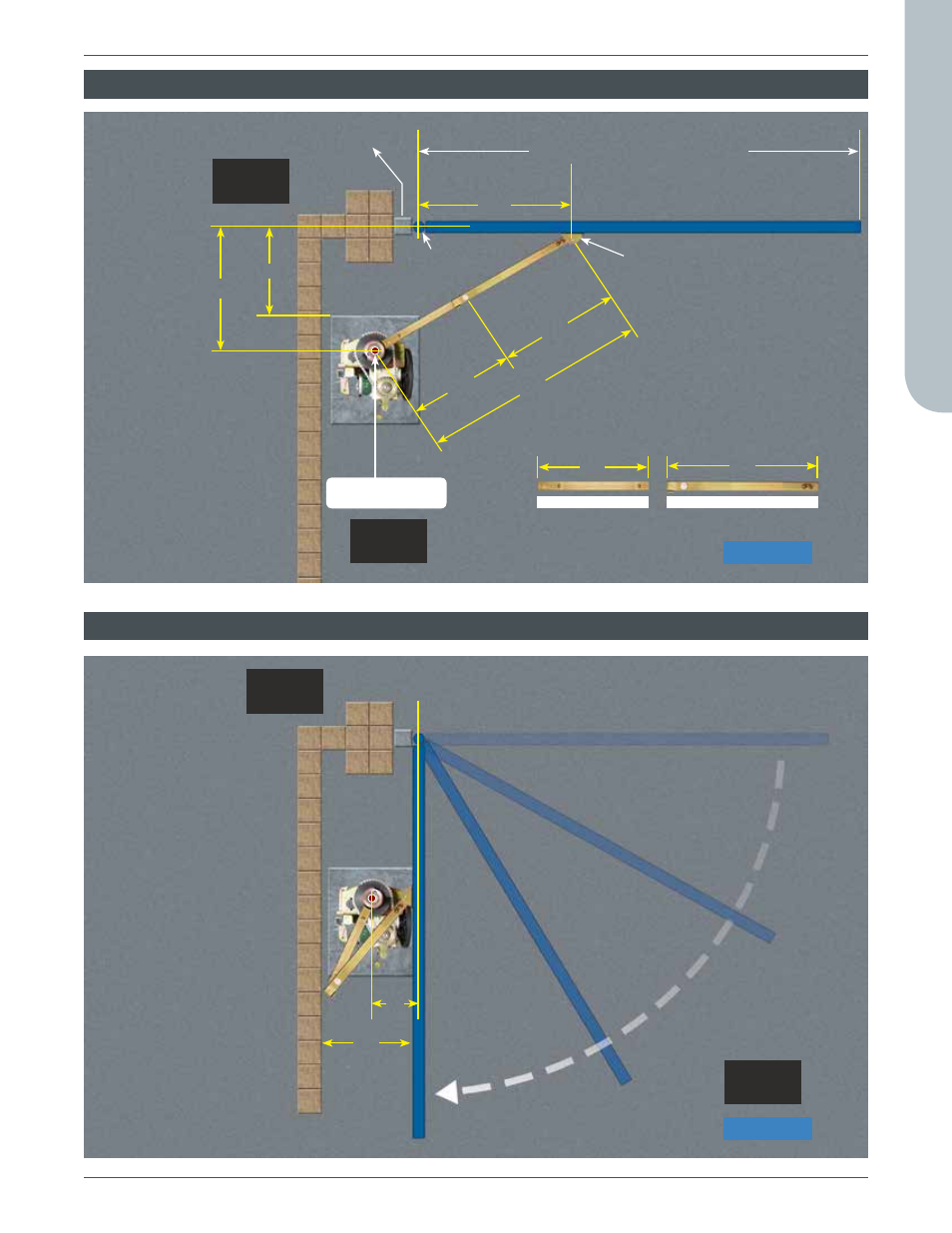

COMPACT INSTALLATION FOR gATES UP TO 14’ IN LENgTh
MINIMUM SPACE REQUIRED FOR COMPACT INSTALLATION
