Gate Opened
14 7/8”
4’
4 ft. Length is the minimum
space required between
the open gate to the wall
for this standard installation
Outside
Property
Inside
Property
Steel Square Tubing
4x4
Supplied bracket Gate Rotation
Center (Hinge)
50”
14’ to 18’ Maximum Gate Length
Gate Closed
43 1/4”
76”
32” 42”
32 3/4”
SHORT ARM DIM. LONG ARM DIM.
42”
34”
OPERATOR
PIvOT ShAFT CENTER
Outside
Property
Inside
Property
Figure 6
Figure 7

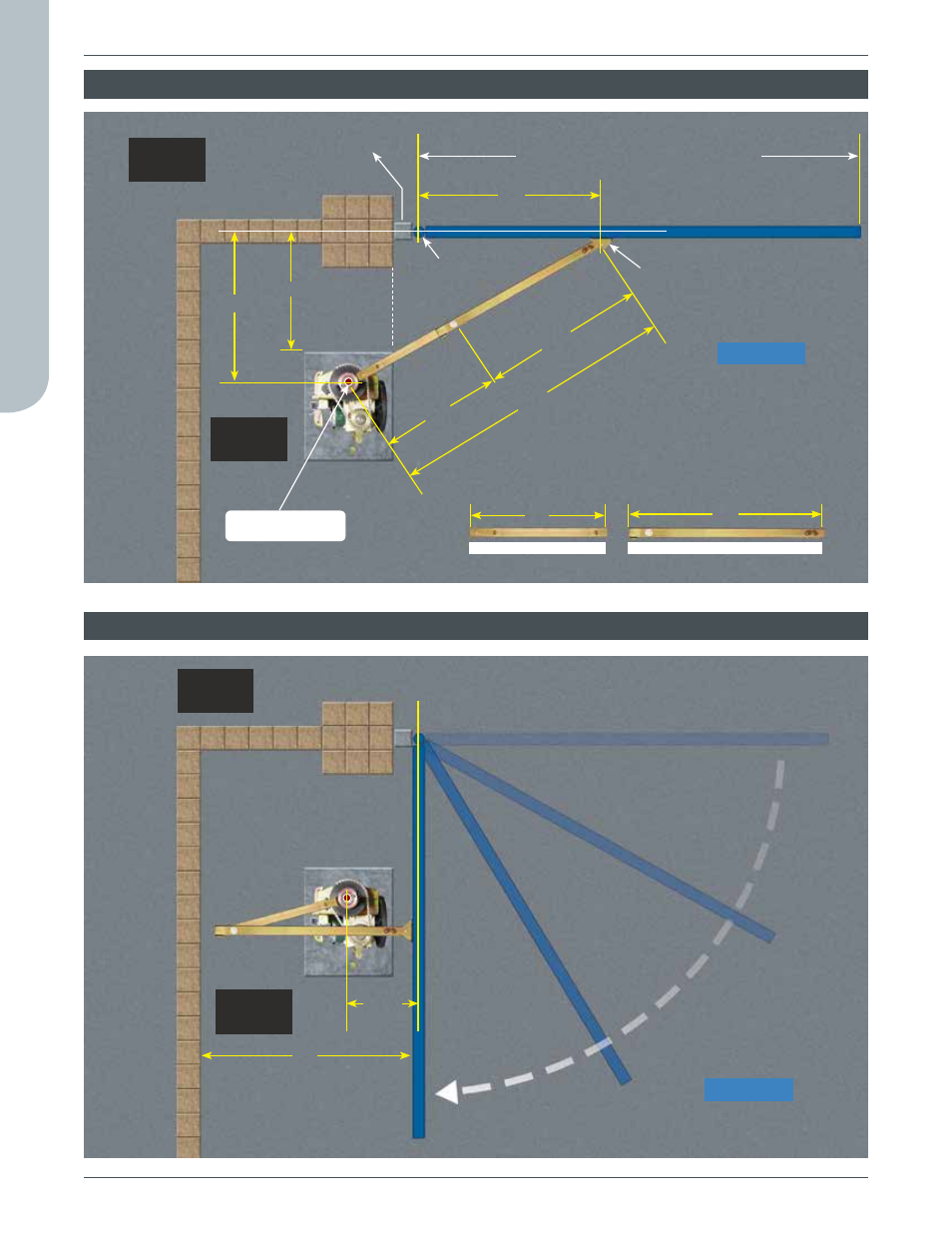

STANDARD INSTALLATION FOR gATES FROM 14’ TO 18’ IN LENgTh
SPACE REQUIRED FOR A STANDARD gATE IN ThE OPEN POSITION
