plug-in plug-in plug-in
Power Transformer
40VA.
Dipswitches
Automatic Timer, Prewarn,
Constant Warning, Secure Close,
Full Reverse ERD, Radio Cycle, One
Pass, Low / High ERD,
Adjustment, Close Delay,
Open Delay and Left / Right.
Relay Connections
Indicator lights, alarms and sirens
Reverse Loop
Exit Loop
Phantom Loop
Microprocessor
Reprogrammable,
controls all functions
of the operator.
ERD
Self adjusting, with low
and high adjustments.
3 Button Station
Open - Stop - Close
Foot Pedal Plug
Stops the motor from
running while the foot
pedal is engaged.
Master / Slave Plug
Synchronizes movement
between two gates. 3 wires
(A-, B- and Common).
Standard Connections
Reverse Loop, Fire Box, Exit Loop,
Phantom Loop, Radio, Edge Sensor,
24 VAC and Magnetic Lock.
3 Button Station
JP10
JP9
JP3
JP11
JP7
JP2

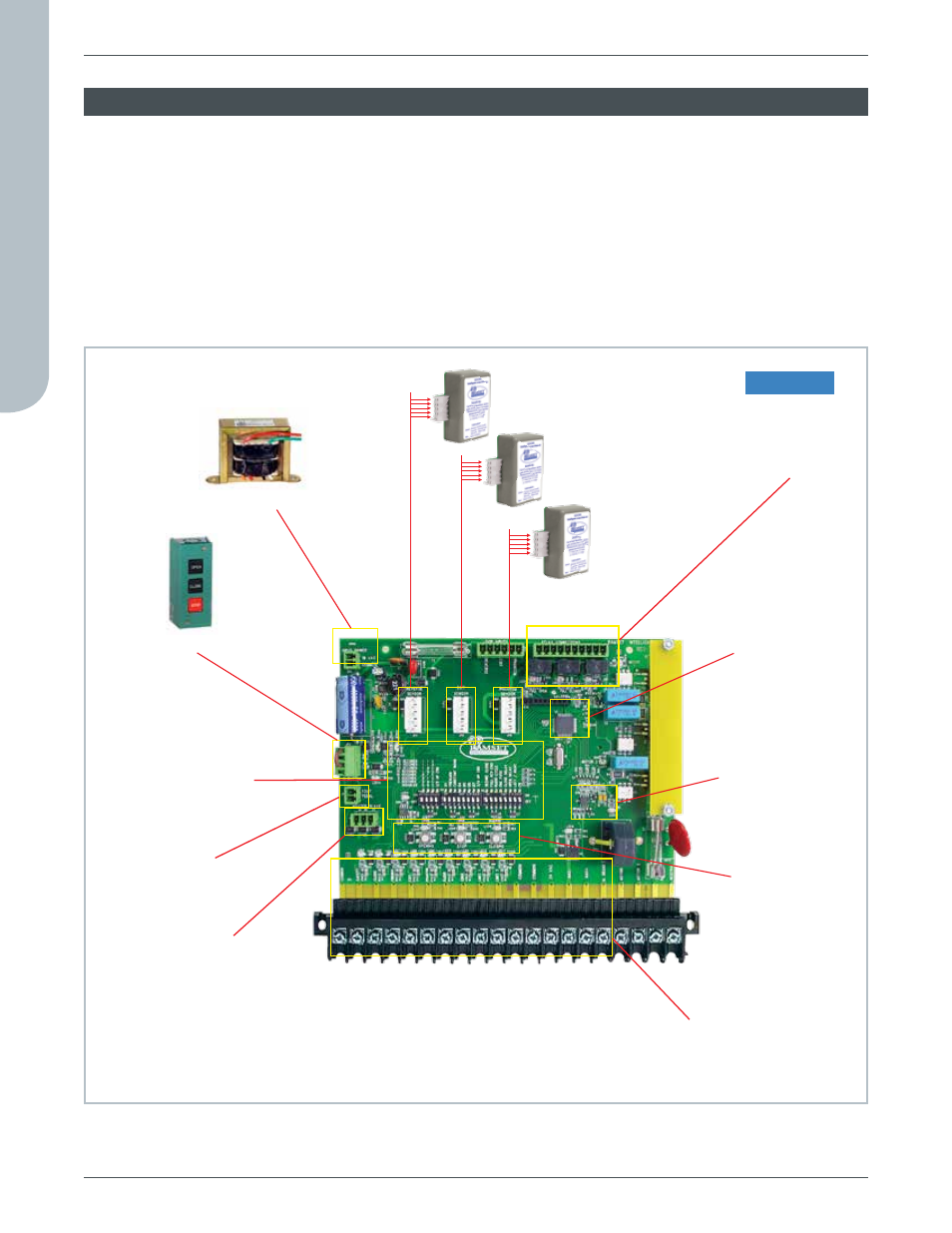

RAMSET “INTELLIgATE” CONTROL BOARD
INTRODUCTION
Ramset’s “Intelligate” Control Board works with Slid-
ing, Swinging and Overhead vehicular gate opera-
tors. It is controlled by a programmable microproces-
sor that reads and precisely executes all functions of
the Control Board. The Control Board is powered by
a separate mounted 24 VAC transformer. This allows
no necessary board modifications between 110 VAC
and 220 VAC single-phase applications. Some of the
functions of the Control Board are: 0 - 60 seconds
automatic close timer, self adjusting E.R.D. with low
and high setting, constant warning, prewarning, se-
cure close, one pass, open & close delay, left/right
hand operation, plug-in loop detectors and RS485
three wire master/slave connection.
Figure 15
