36

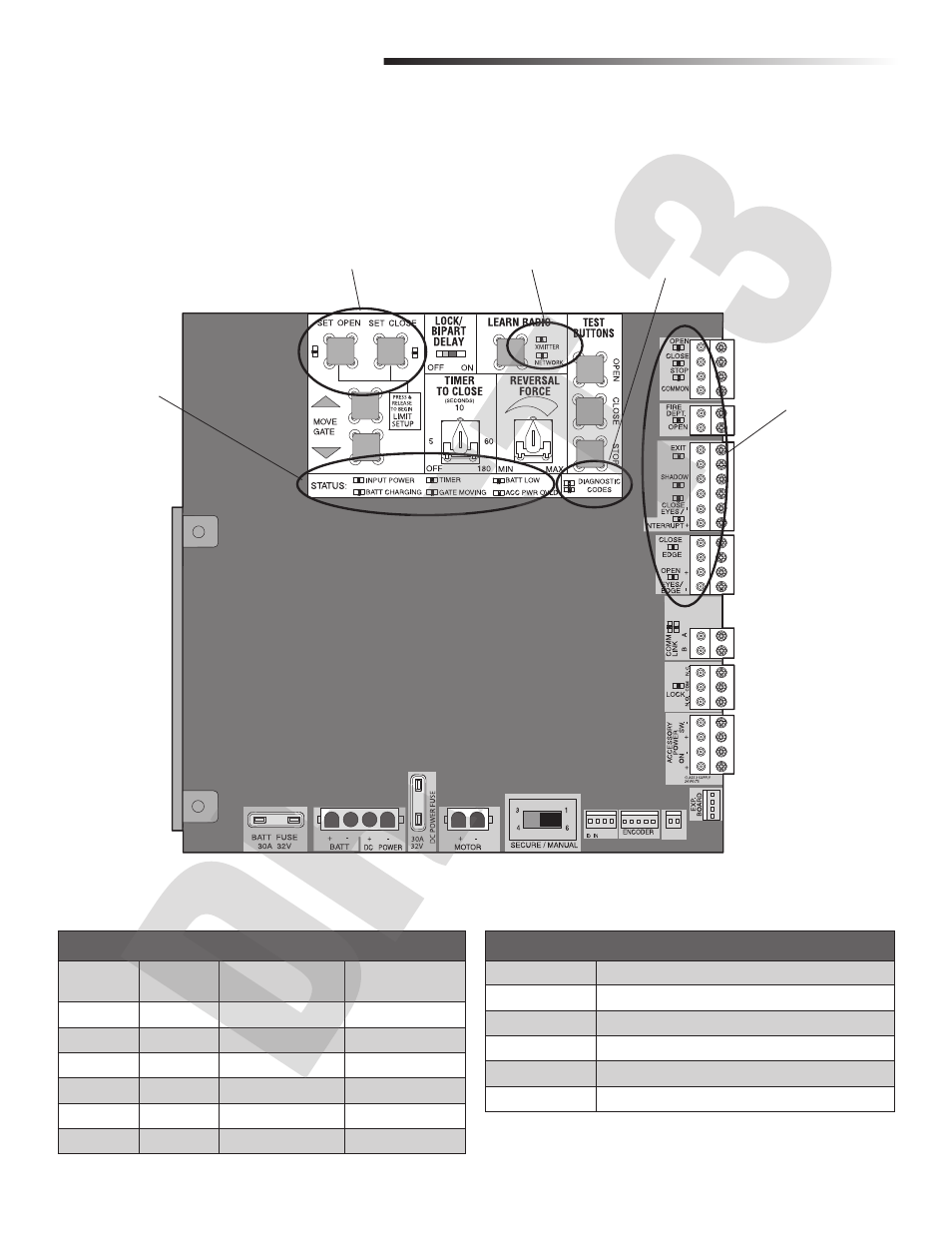

CONTROL BOARD LEDS
The control board is equipped with many LEDs that have a variety of functions. The control board LEDs indicate the status of the operator, assist with programming, and
diagnose potential problems with the operator.
CONTROL BOARD LEDS
TROUBLESHOOTING
ALARM
RESET
STATUS LEDS
GREEN XMITTER LED
XMITTER LED EXPLANATION
OFF No remote control activity, normal operation.
ON Programming mode active.
FAST Recognized remote control signal.
FASTER Unrecognized remote control signal.
FASTEST Remote controls are being erased.
LIMIT SETUP LEDS
SET OPEN
LED
SET CLOSE
LED
OPERATOR MODE EXPLANATION
BLINKING BLINKING NORMAL MODE Limits are not set.
OFF OFF NORMAL MODE Limits are set.
BLINKING BLINKING LIMIT SETTING MODE Limits are not set.
BLINKING ON LIMIT SETTING MODE Open limit is not set.
ON BLINKING LIMIT SETTING MODE Close limit is not set.
ON ON LIMIT SETTING MODE Limits are set.
LIMIT SETUP LEDS GREEN XMITTER LED
DIAGNOSTIC CODES LEDS
INPUT LEDS
