12
INSTALLATION
STANDARD INSTALLATION ONLY
STANDARD INSTALLATION ONLY
For compact installation start on page 14.

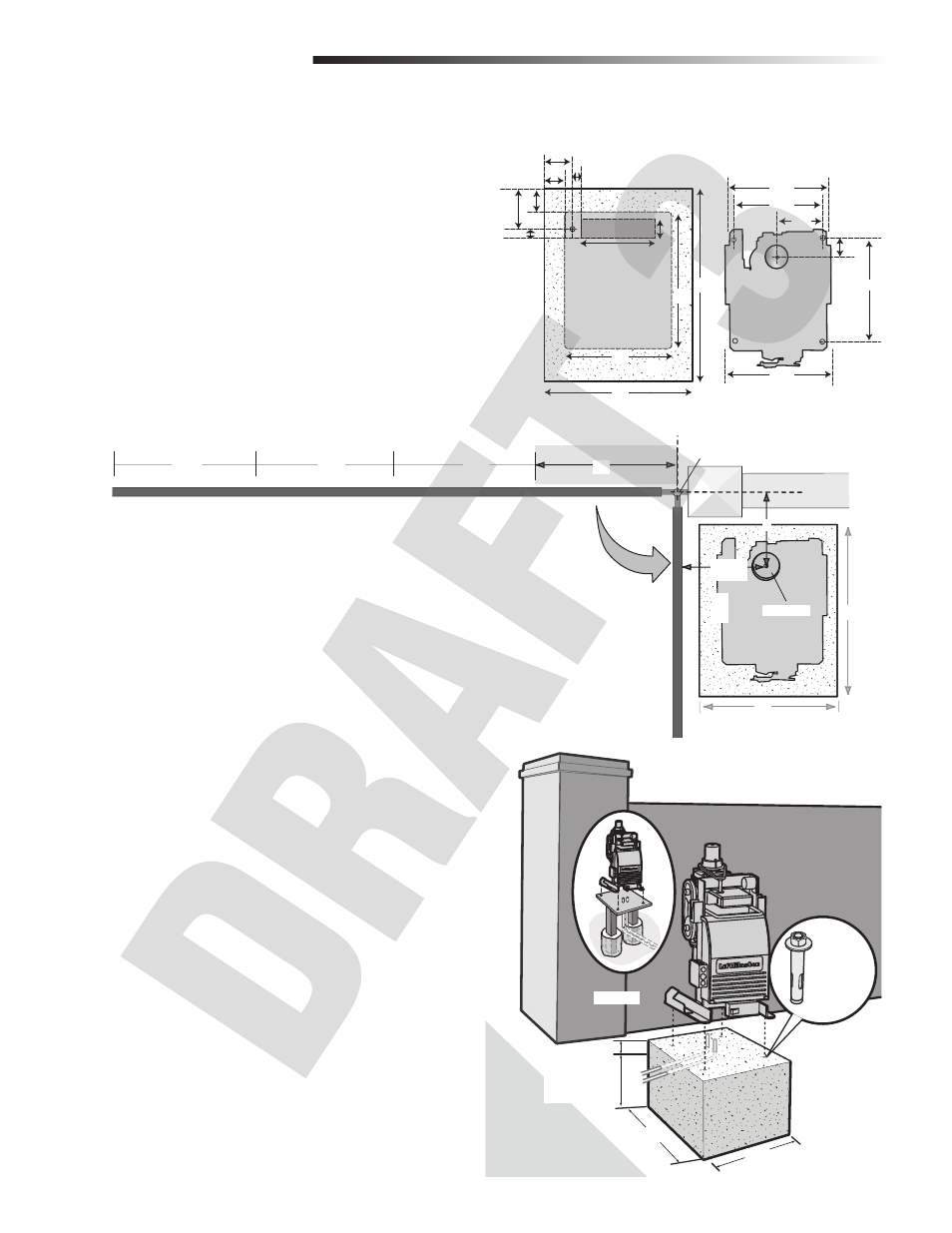

DETERMINE LOCATION FOR CONCRETE PAD AND
OPERATOR
DO NOT run the operator until instructed.
Below is a recommended guide for positioning the concrete pad:
1
Measure 1/4 the length of the gate from the gate hinge center. This is A.
2
Subtract 14 inches from A to get B, the distance from the center of the output
shaft to the center of the gate hinge.
3
Open the gate 90°. The distance from the gate to the center of the output
shaft must be a minimum of 9 inches.
CONDUIT LOCATION MOUNTING FOOTPRINT
5.5”
4.5” 1”
6.5” 4”
1.5”
10”
3”
28”
20”
15”
24”
13.6”
12.2”
6.1”
2.49”
14”
14.82”
(cover mounting distance)
1
1/4 1/4 1/4 A
B
90°
minimum
of 9”
Output Shaft 28”
24”
2
3
TOP VIEW OF OPERATOR AND GATE
Gate Hinge
CONCRETE PAD AND OPERATOR ATTACHMENT
Check the national and local building codes before installation. NOTE: When lifting
the operator use the handle to avoid damaging the operator.
1
Install the electrical conduit.
2
Pour a concrete pad (reinforced concrete is recommended). The concrete pad
should be 6 inches above the ground and deeper than the frost line. Ensure
the pad is tall enough to avoid possible flooding.
3
Secure the operator to the concrete pad with appropriate fasteners.
NOTE: An alternative to a concrete pad is to post mount the operator (refer to
accessories).
4 Concrete Anchors
1/2” x 3 1/2”
Below the frost line.
Check all national
and local codes.
6” Above Ground
28”
24”
1
2
3
Post Mount
(Conduit)
(Pad)
