30
ALARM
RESET
Open
Close
Stop
Com
Com
Com
Com
Interrupt
Close Edge (+)
Fire Dept
Exit
Shadow
Close Eyes
Close Edge (-)
Comm Link Data A
Comm Link Data B
Open Eyes/Edge (+)
Open Eyes/Edge (-)
Lock N.C. (Maglock)
Com
Lock N.O. (Solenoid)
Com (-)
AccPower +24 Vdc
Com (-)
AccPower +24 Vdc
3 Button
Station
Fire Dept.
Exit Loop
Shadow Loop
Close Eyes/
Interrupt Loop
Comm Link
Close Edge
Open Eyes/Edge
Mag and
Solenoid Lock
A
B
C
D
E
F
G
H
I
J
K
L
M
N

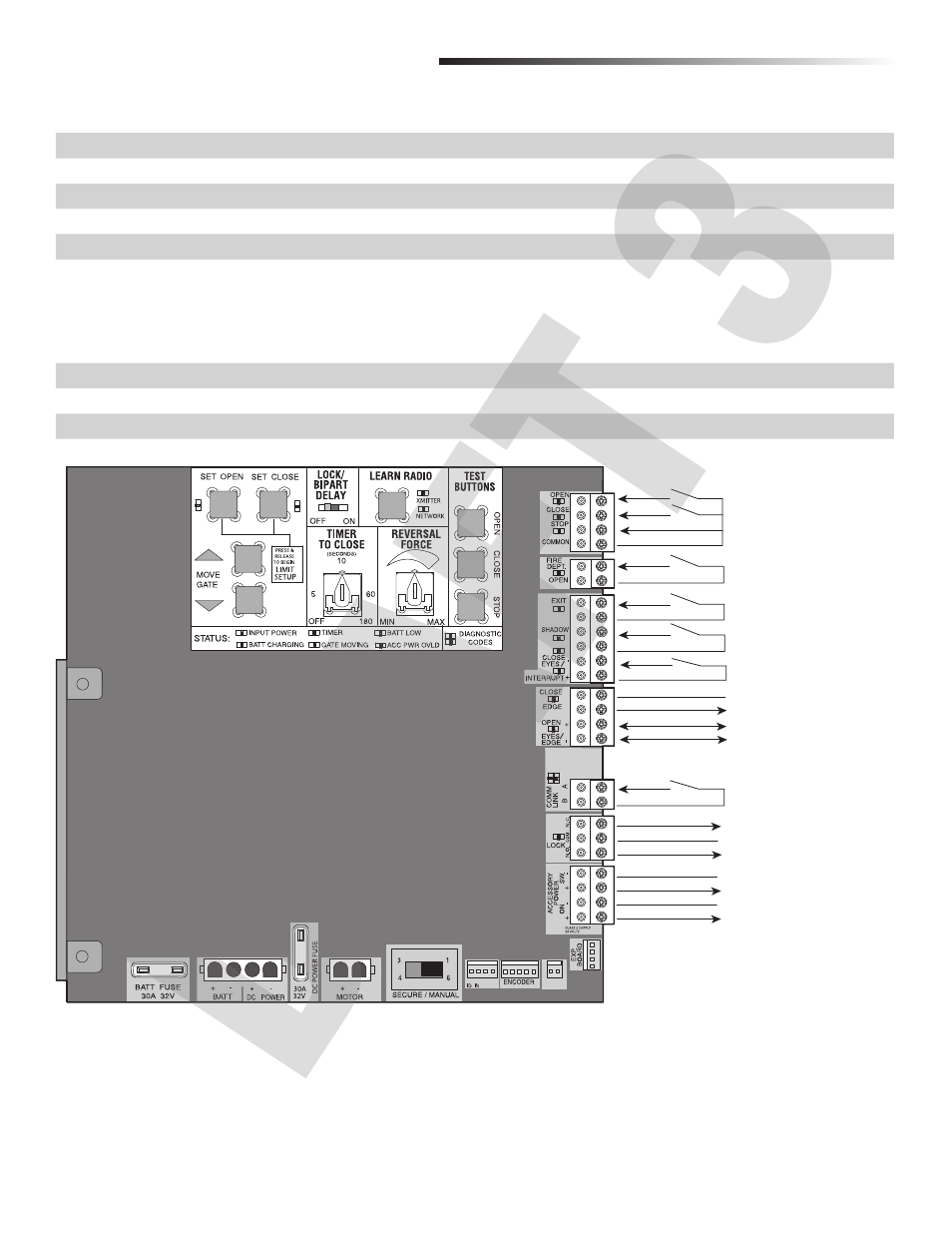

CONTROL BOARD OVERVIEW
ADDITIONAL FEATURES
CONTROL BOARD OVERVIEW
SET OPEN Button The SET OPEN button sets the OPEN limit. See Adjust Limits section.
SET CLOSE Button The SET CLOSE button sets the CLOSE limit. See Adjust Limits section.
MOVE GATE Button The MOVE GATE buttons will either open or close the gate when the operator is in Limit setting mode. See Adjust Limits section.
BIPART DELAY Switch The LOCK/BIPART DELAY switch is used only for dual gates. See Bipart Delay section.
LEARN Button The LEARN RADIO button is for programming remote controls and the network.
TIMER-TO-CLOSE dial The TIMER-TO-CLOSE (TTC) dial can be set to automatically close the gate after a specified time period. The TTC is factory set to OFF. If the
TTC is set to the OFF position, then the gate will remain open until the operator receives another command from a control. Rotate the
TIMER-TO-CLOSE dial to the desired setting. The range is 0 to 180 seconds, 0 seconds is OFF.
NOTE: Any radio command, single button control, or CLOSE command on the control board prior to the TTC expiring will close the gate.
The TTC is reset by any signals from the open controls, loops, close edges, and close photoelectric sensors (IR’s).
REVERSAL FORCE dial The REVERSAL FORCE dial adjusts the force. See Force Adjustment section.
TEST BUTTONS The TEST BUTTONS will operate the gate (OPEN, STOP and CLOSE).
STATUS LEDs The STATUS LEDs are diagnostic codes for the operator. See Status LED Chart in the Troubleshooting section.
Switched ON with gate motion. Always ON with
expansion board connected. Switches Off to save
battery power if expansion board disconnected.
Always ON
Acc. Power
