Page 19

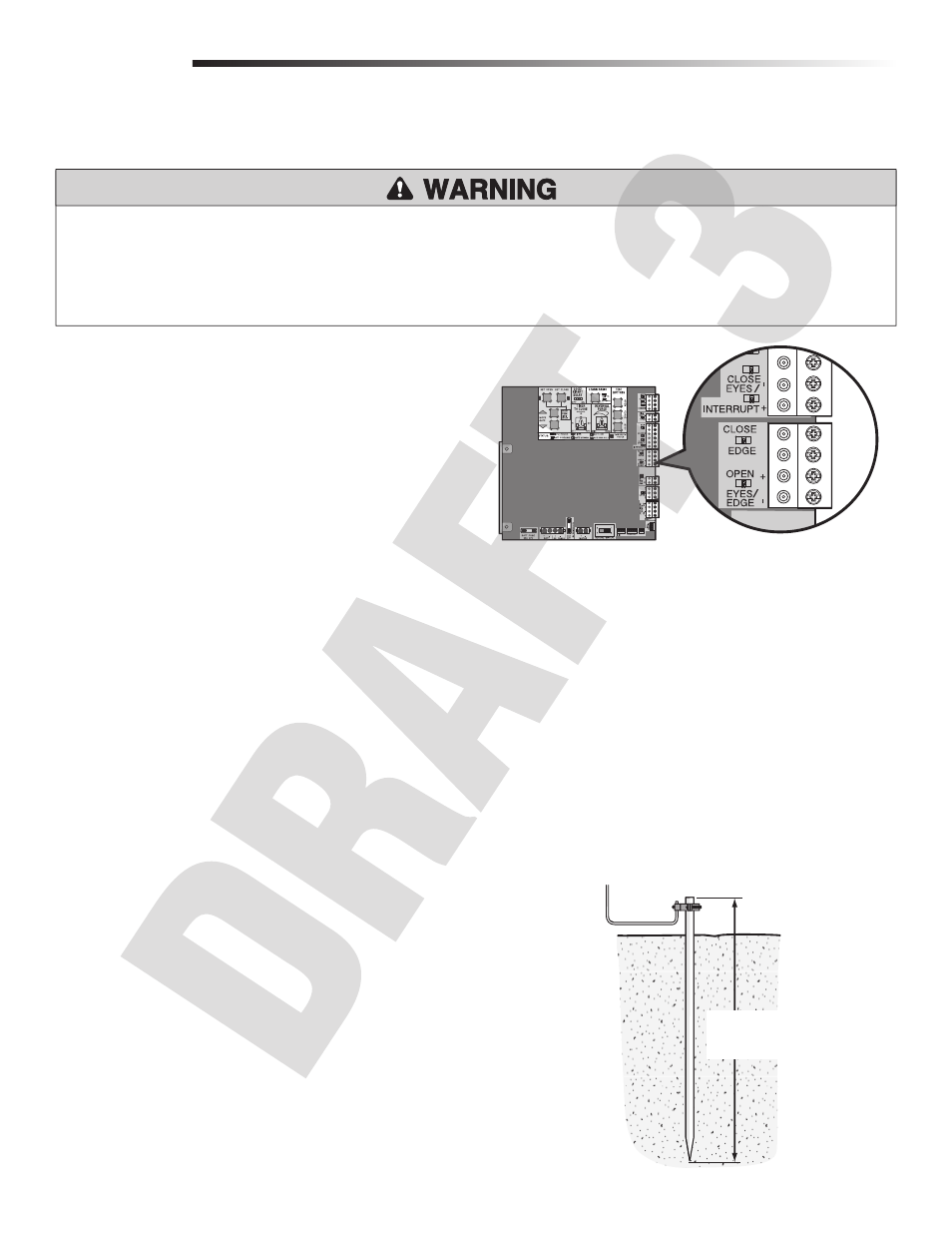

Connect the entrapment protection device to the EYES EDGE terminal on the

control board:

• Close Photoelectric Sensor Entrapment Protection: Connect wires from the

photoelectric sensors to the Inputs on the CLOSE EYES/INTERRUPT terminal.

• Close Edge Entrapment Protection: Connect wires from the entrapment

protection device to the Inputs on the CLOSE EDGE terminal.

• Open Entrapment Protection: Connect wires from the entrapment protection

device to the Inputs on the OPEN EYES/EDGE terminal.

NOTE: Refer to the “Accessory Features on the Control Board” section on page 31.

WIRE THE ENTRAPMENT PROTECTION DEVICES + EARTH GROUND ROD

WIRING

To prevent SERIOUS INJURY or DEATH from a moving gate:
• Entrapment protection devices MUST be installed to protect anyone who may

come near a moving gate.

• Locate entrapment protection devices to protect in BOTH the open and close

gate cycles.

• Locate entrapment protection devices to protect between moving gate and

RIGID objects, such as posts or walls.

WIRE THE ENTRAPMENT PROTECTION DEVICES

Entrapment protection devices are required. Refer to page 5 for more information regarding application.

EARTH GROUND ROD

Use the proper earth ground rod for your local area. The ground wire must be a

single, whole piece of wire. Never splice two wires for the ground wire. If you should

cut the ground wire too short, break it, or destroy its integrity, replace it with a single

wire length.

Install the earth ground rod within 3 feet of the operator.

Run wire from the earth ground rod to the operator.

NOTE: If the operator is not grounded properly the range of the remote controls will

be reduced.

Check national and local

codes for proper depth

To Operator

ALARM

RESET

TO ERASE LEARNED MONITORED PHOTOELECTRIC

SENSORS

Remove the photoelectric sensor wires from the terminal block.

Press the SET OPEN and SET CLOSE buttons simultaneously until the SET OPEN

and SET CLOSE LEDs turn on.

Press both SET OPEN and SET CLOSE buttons again to turn off the SET OPEN

and SET CLOSE LEDs.

NOTE: For dual gate applications repeat the steps above on the other operator.
