INSTALLATION
COMPACT INSTALLATION ONLY
COMPACT INSTALLATION ONLY
DETERMINE LOCATION FOR CONCRETE PAD AND
OPERATOR
DO NOT run the operator until instructed.
Refer to the illustration to determine the measurements and location of the
concrete pad.
NOTE: When lifting the operator use the handle to avoid damaging the operator.

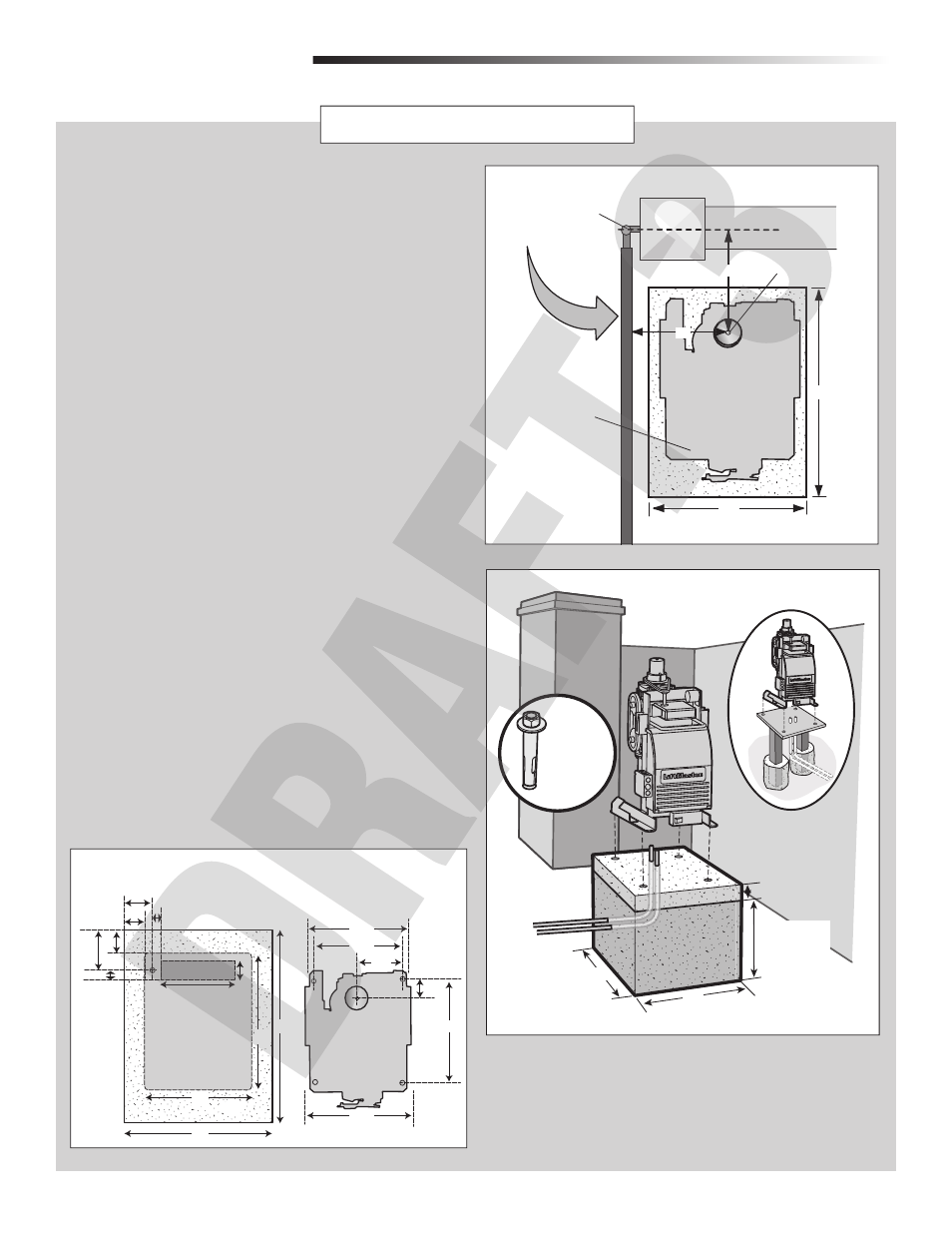

TOP VIEW OF OPERATOR AND GATE
Gate Open 90°
Gate Hinge Center
26-1/2”
9”
Output Shaft Center
28”
24”
Handle
CONCRETE PAD AND OPERATOR ATTACHMENT
Check the national and local building codes before installation.
1
Install the electrical conduit.
2
Pour a concrete pad (reinforced concrete is recommended). The concrete
pad should be 6 inches above the ground and deeper than the frost line.
Ensure the pad is tall enough to avoid possible flooding.
3
Secure the operator to the concrete pad with appropriate fasteners.
NOTE: An alternative to a concrete pad is to post mount the operator (refer to
accessories).
4 Concrete Anchors
1/2” x 3 1/2”
Below the frost line.
Check all national
and local codes.
6” Above Ground
28”
1
2
3
Post Mount
24”
CONDUIT LOCATION MOUNTING FOOTPRINT
5.5”
4.5” 1”
6.5” 4”
1.5”
10”
3”
28”
20”
15”
24”
13.6”
12.2”
6.1”
2.49”
14”
14.82”
(cover mounting distance)
(Conduit)
(Pad)
