Magnetic Lock, Lock Solenoid
NOTE:
Viking Access Systems does not provide external gate lock devices. These items
can be purchases from your dealer or distributor.
ACCESSORY CONNECTIONS
Power
Do not use the 24v DC power supplied
by the control board. An external power
supply, or plug-in transformer, must
be used for the magnetic lock or lock
solenoid.
This will prevent rapid drainage of the
battery in the event of power failure.
The control boards “Magnetic Lock” relay
is rated for 10A-250v AC.
( + )
( + )
( + )
( + )

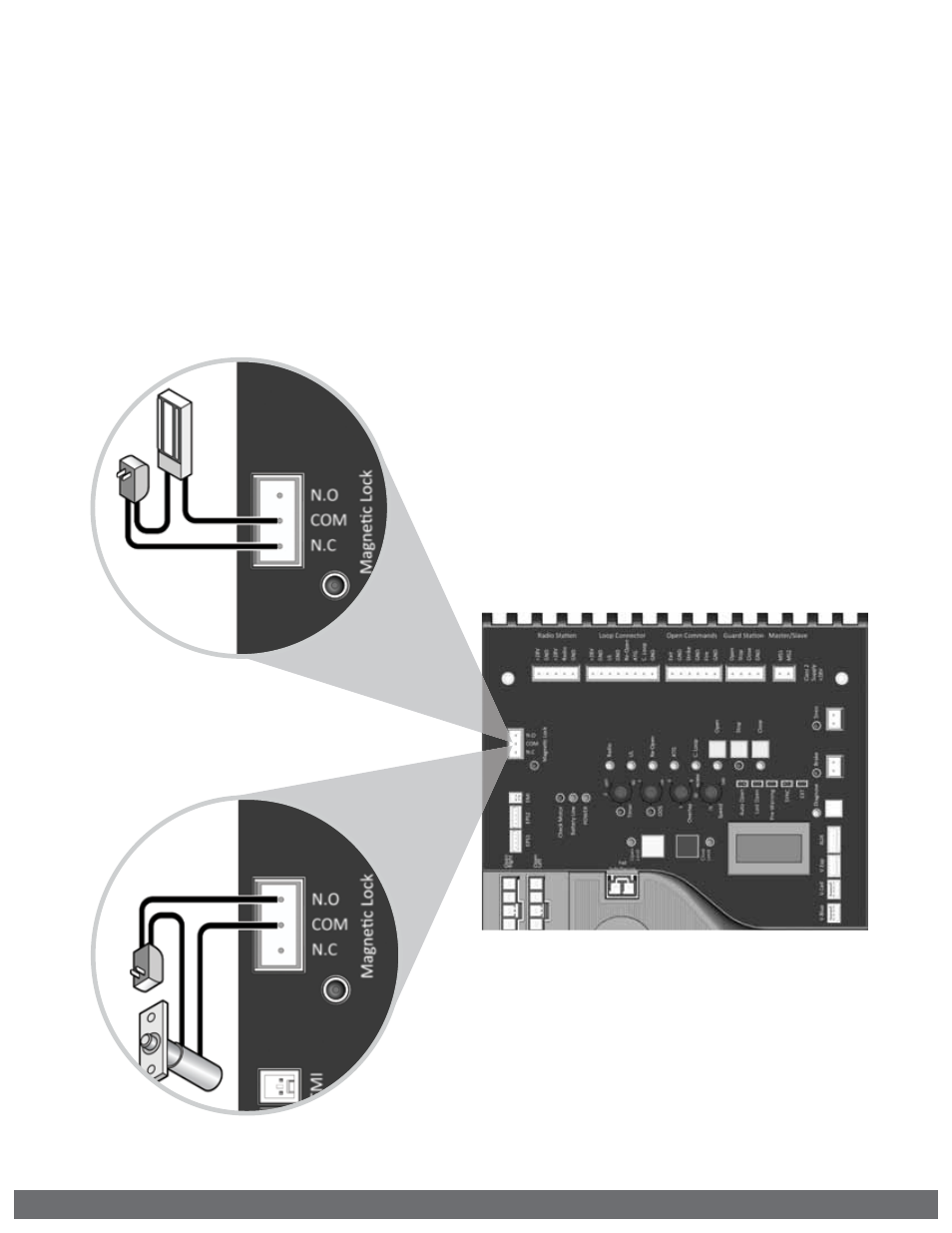

Magnetic Lock
Lock Solenoid
