Open Limit Close Limit
! TECHNICAL TIP:
The Limit LEDs will illuminate solid when the gate reaches the
corrisponding limit switch on the gate operator. Both LEDs will flash. indicating a
problem with the limt switches or wires.
! IMPORTANT:
The gate operator (excluding i-8 model) uses mechanical limit switches
and therefore the limits cannot be set electronically by this controller. The Limit
Buttons on the control board have been rendered inactive by the controller. Refer to
the gate operator’s Installation Manual (G-5, X-9 or i-8) for specific instructions on
how to set the limits for the gate operator model chosen.

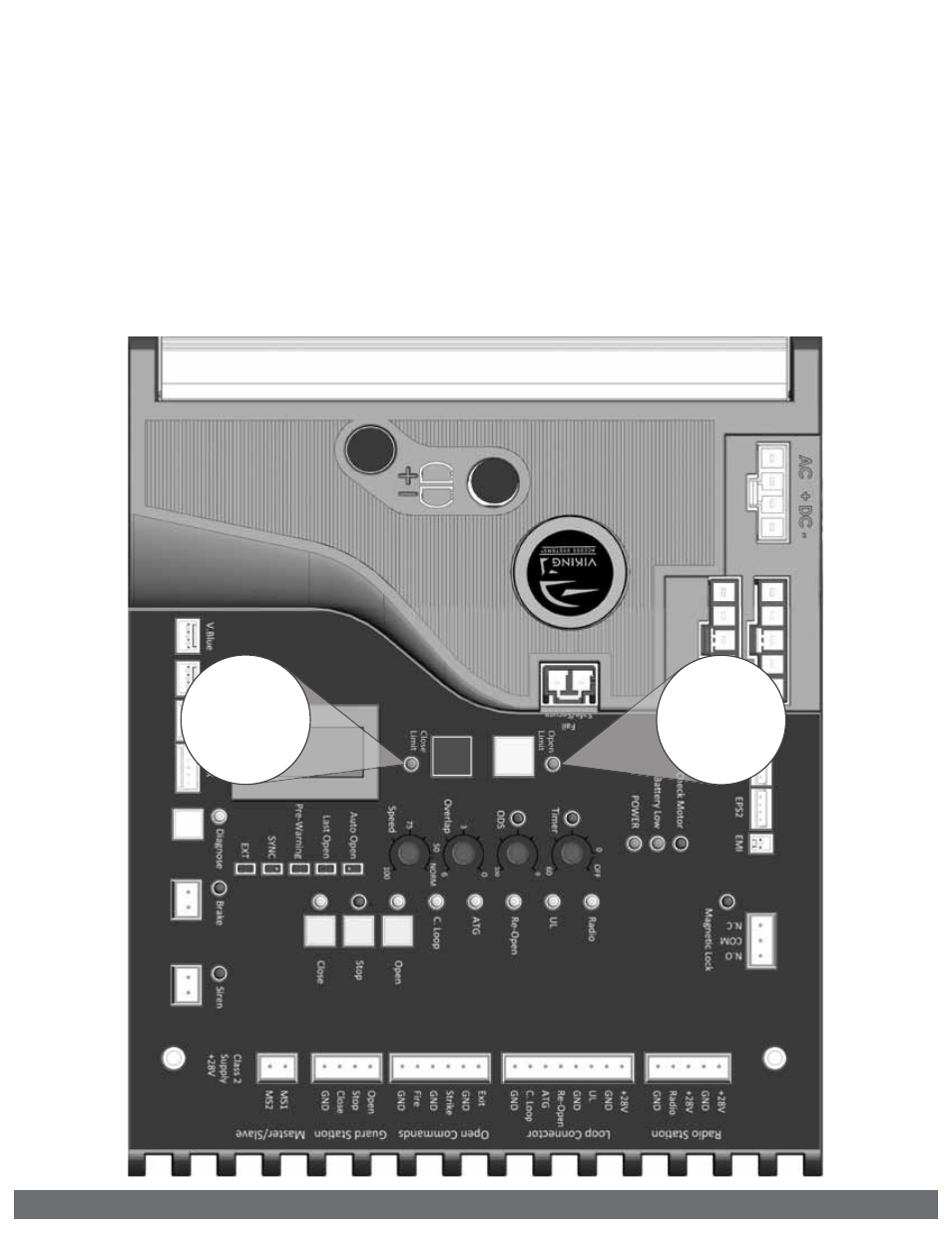

LIMIT INDICATIONS
“Open Limit” LED
indictates the gate
is at the open limit.
“Close Limit” LED
indictates the gate
is at the close limit.
