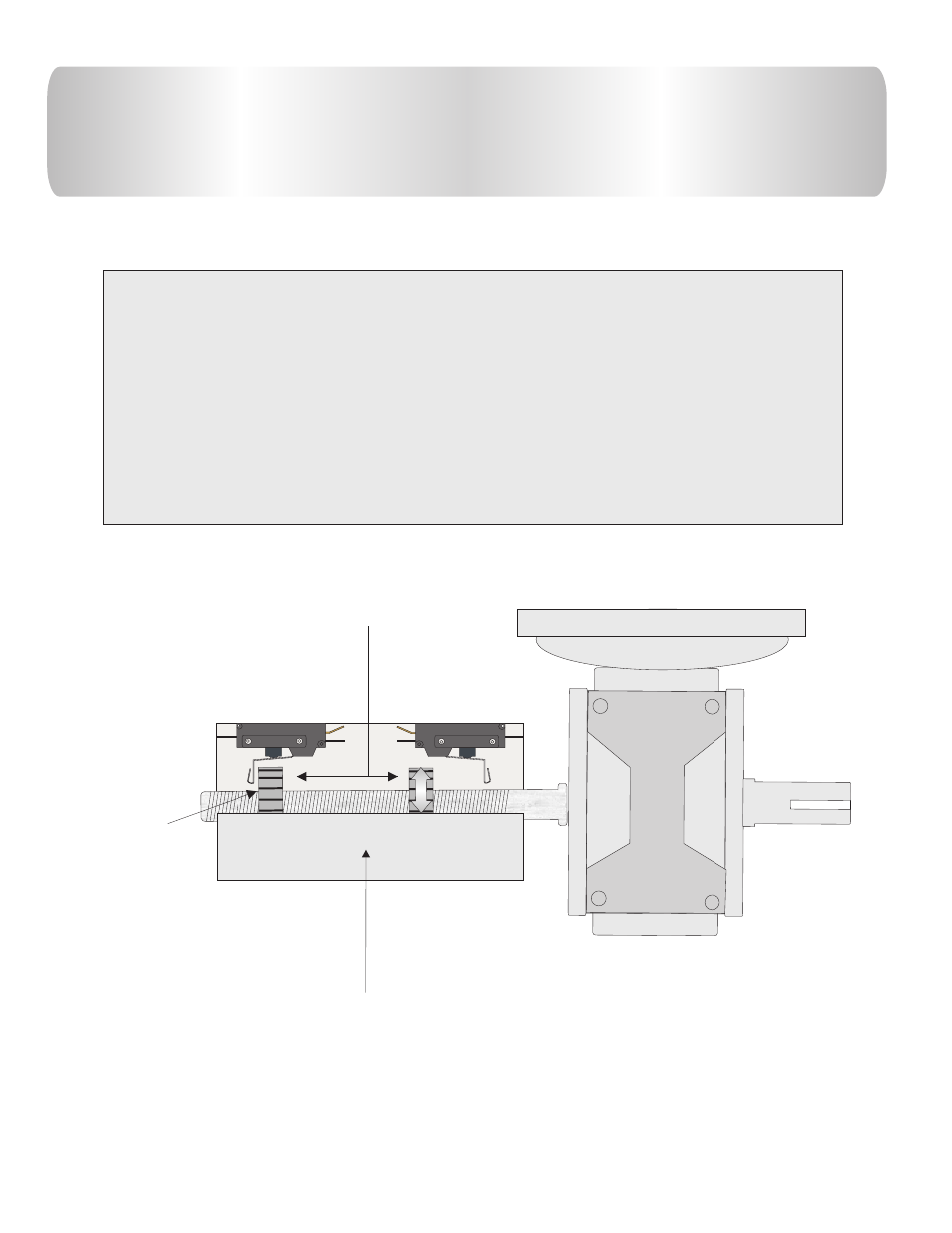

GATE TRAVEL ADJUSTMENT
FOR SL-90DC
Limit nut lock plate
Limit nuts
Locate limit switches
Step 1: Stop the gate operator using the three button station on
the board.
Step 2: Push limit lock plate down. Turn limit nut in the desired
direction.
Step 3: Place limit plate to its locked position.
Step 4: Run gate operator.
Each notch equals
about
½” of travel.
Gear box
