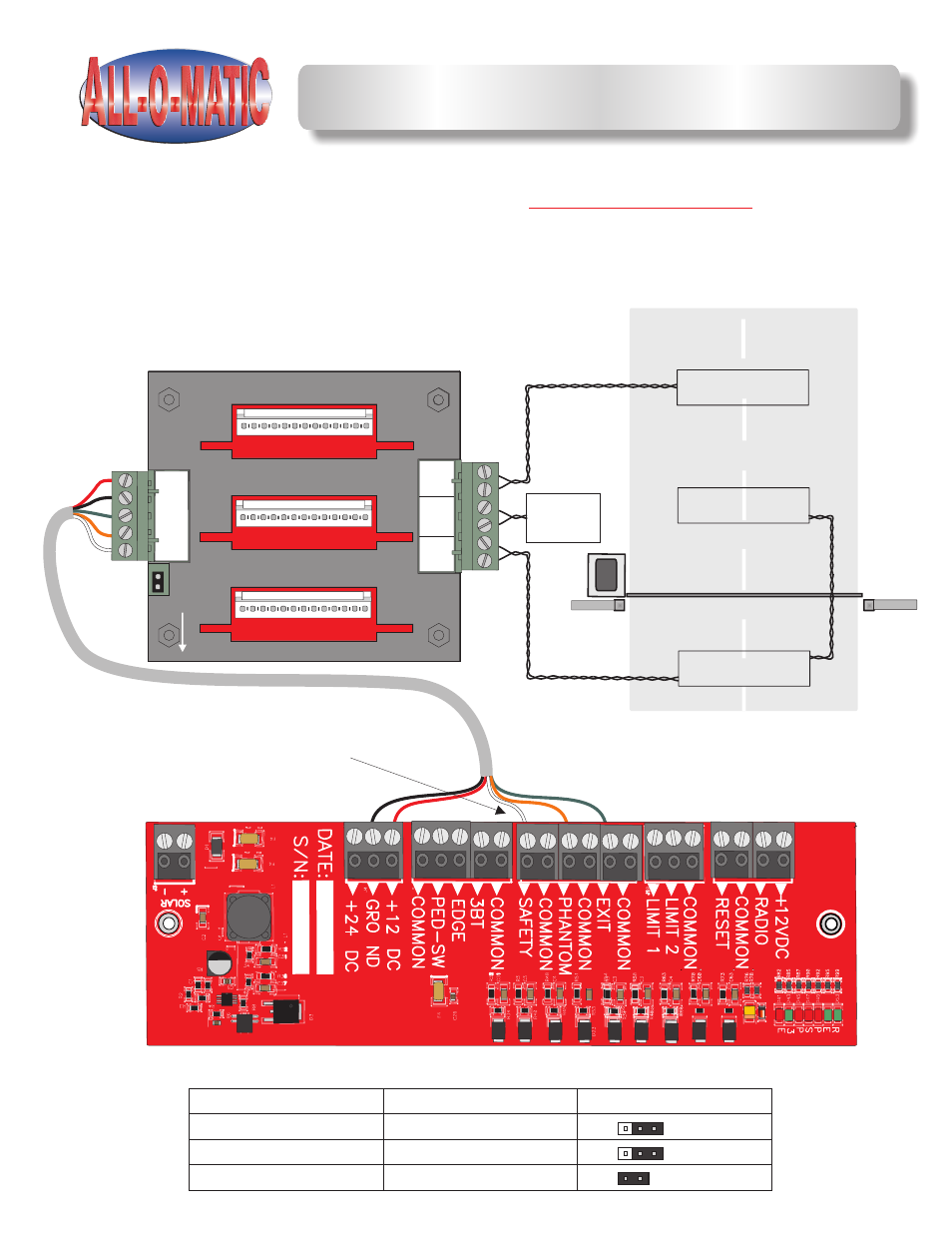

This is a loop configuration for a gated driveway. Remember when connecting to an
All-O-Matic circuit board the safety (reverse) uses from the loop
detector, the wire jumper from the safety connector needs to be removed when a safety loop
is inatalled.
You must twist your wires from your exit point of the saw cut all the way to the loop
detectors, no exceptions.
typical
normally closed contacts
LPR-1 LOOP RACK INATALLATION
Outside Safety loop
Inside Safety loop
Exit loop
WHEN USED
®
Exit Loop
Phantom Loop
Safety Loop
See side for Jumper setting
Loop Connections
Compatible Detectors
Brand Model No. Jumper setting
Reno A&E
EDI
Diablo Controls H2
LMA-1500-LP
DSP-40S OFF
OFF
ON
Exit
Loop
Loop
Loop
Safety
Phantom
24VAC/
12VDC
Ground
Exit
Phantom
Safety
14
Only for
swing gates
To wire one or multiple safety devices in use
with loop rack safety device remove loop rack
safety white contact wire (N.C.) From safety
pin connector on circuit board and wire in
Series with added safety devices using the
(N.C.) Contact wire from your safety device in
the safety contact. (see page 13)
NOTE:
