17

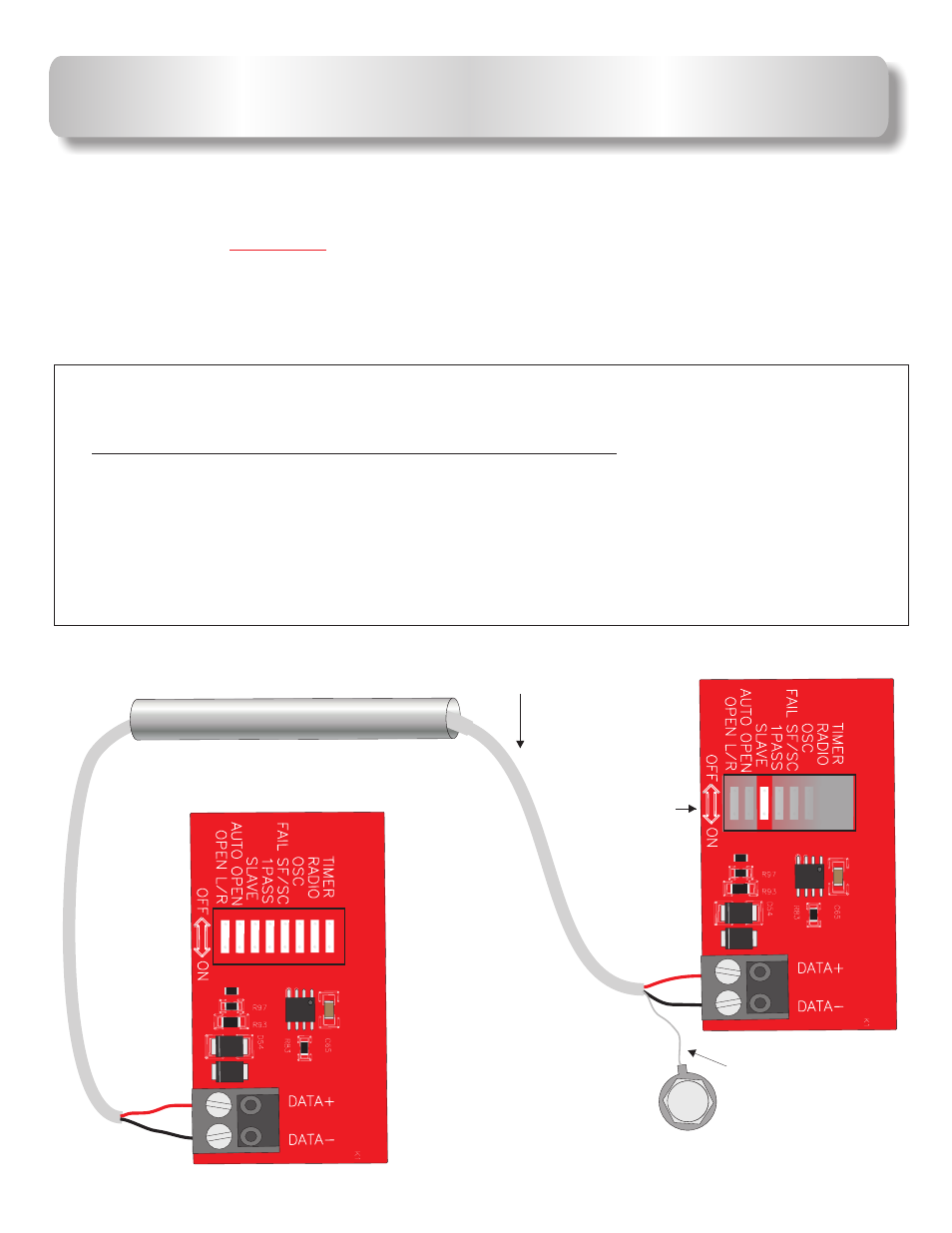

MASTER/SLAVE CONNECTION
Use a two wire shielded cable and run it through a UL listed conduit for master/slave connection.
Follow the wiring diagram as shown below.
Master Board Slave Board
+.....................Positive to Positive...................+
-...................Negative to Negative...................-
Before connecting master/slave gate operators together, test and adjust limit switches and the ERDs
for each operator as “stand alone” machines. All accessories must be installed on the master board, no
exception.
the
See page 22 for dip switch settings.
Connect shield to
slave metal frame
only.
Use UL listed
conduit Shielded
cable
1 2 3 4 5 6 7 8
-----------------------OPEN------------------------
C8RB
LMC64
82AIM
1210
1001
1001
1002 710
KE.
710
KE.
1 2 3 4 5 6 7 8
-----------------------OPEN------------------------
C8RB
LMC64
82AIM
1210
1001
1001
1002 710
KE.
710
KE.
Master Board
Slave Board
Slave switch
only on
slave board
ON
