Controlled Products Systems Group AOMSL90DC - Manual (Page 17)

16

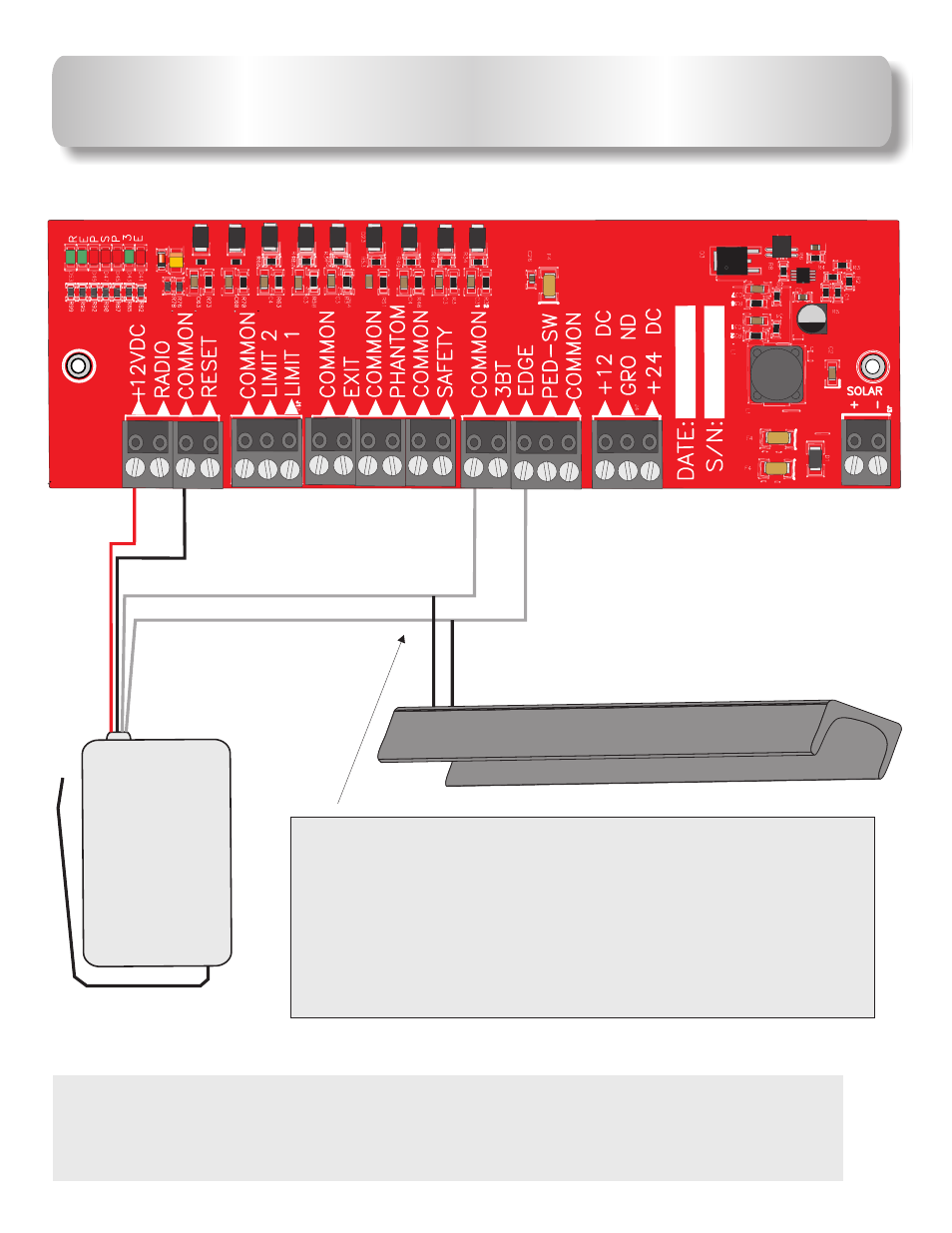

LEADING EDGE CONNECTION
LEADING EDGE SENSOR
Connect one of the wires from leading edge and/or one of the grey
wires from a wireless edge receiver to
connector on
control board.
Connect the other wire from leading edge and/or the other wire from
a wireless edge receiver to
connector on control board.
COMMON
EDGE
Wireless
edge
Receiver
wire to 12VDC RED
BLACK wire to COMMON
A wireless contact sensor such as one that transmits radio frequency (RF) signals to the gate
operator for entrapment protection functions shall be located where the transmission of the
signals are not obstructed or impeded by building structures, natural landscaping or similar
obstruction. A wireless contact sensor shall function under the intended end-use conditions.
