18
MAGNETIC
LOCK
SOLENOID
LOCK
Step Down
Transformer

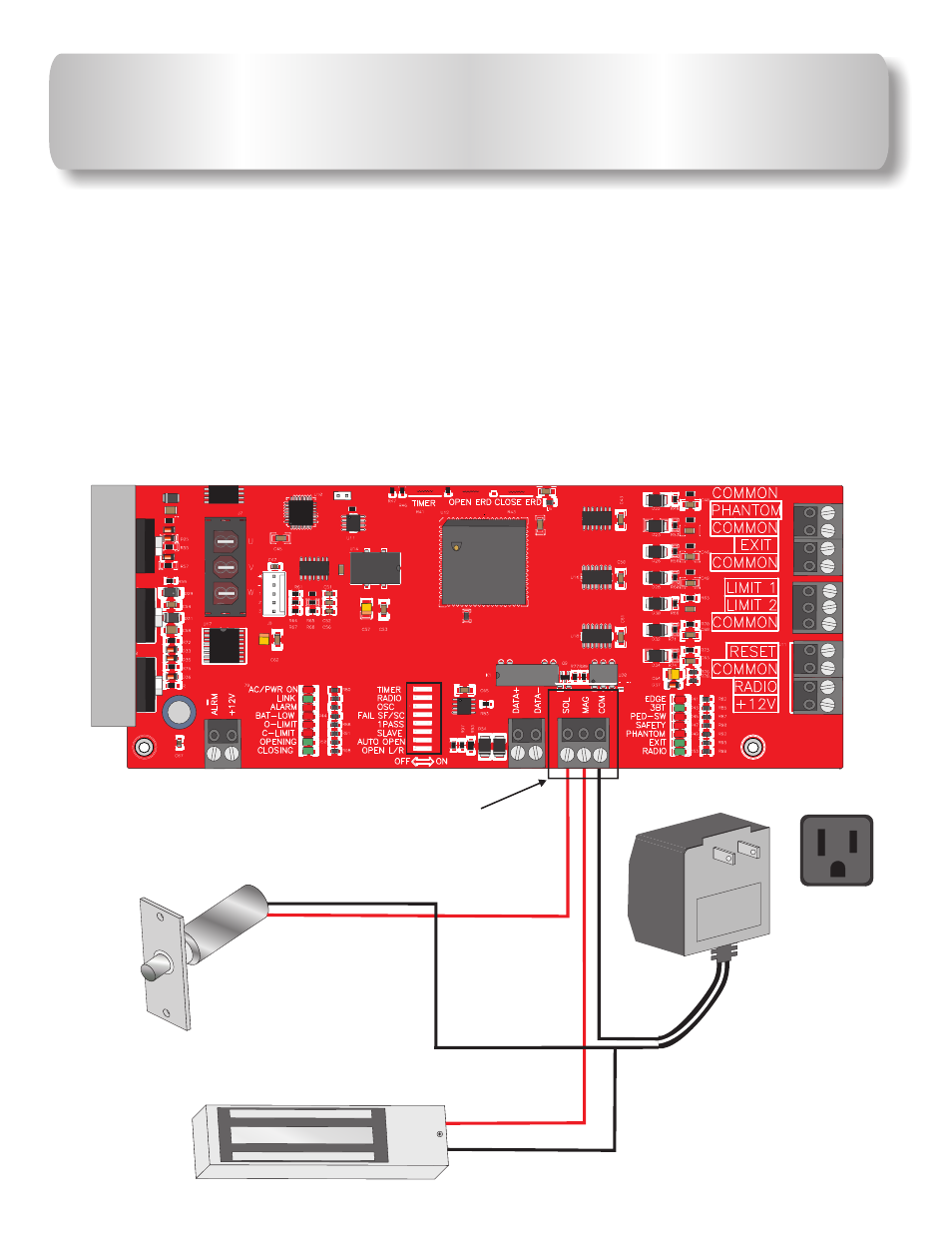

MAGNETIC/SOLENOID LOCK
CONNECTIONS
Magnetic lock installation requires a step down transformer with appropriate voltage for the
specific lock accessory. Operator will provide a 120VAC outlet for the step down transformer.
Connections: Plug the lock device transformer to the 120VAC outlet plug.
For Magnetic lock: Connect one wire from transformer directly to one wire of the magnetic lock,
the other wire from transformer will be connected to the relay plug
input and the
relay
output connects to the other wire of the magnetic lock. See illustration below.
For Solenoid lock: Connect one wire from transformer directly to one wire of the solenoid lock,
connect the other wire from transformer to the relay plug
input and the
relay output
connects to the other wire of the solenoid lock. See illustration below.
COM
MAG
COM
SOL
120VAC
outlet plug
Relay plug
