Controlled Products Systems Group AOMSL100 - Manual (Page 13)

All gate operators be properly grounded.
A proper ground in a gate operator installation minimizes or prevents damage from an electrical charge, such as a near
lightning strike or an electrical static discharge.
.
Use a single wire for the ground.
splice two wires for the ground. If the wire breaks or is cut, replace it with a
single length. use two wires for the ground.
Check with your City code for proper earth ground rod type and proper grounding procedures.
DO NOT
NEVER
MUST
OFF
OFF
X X

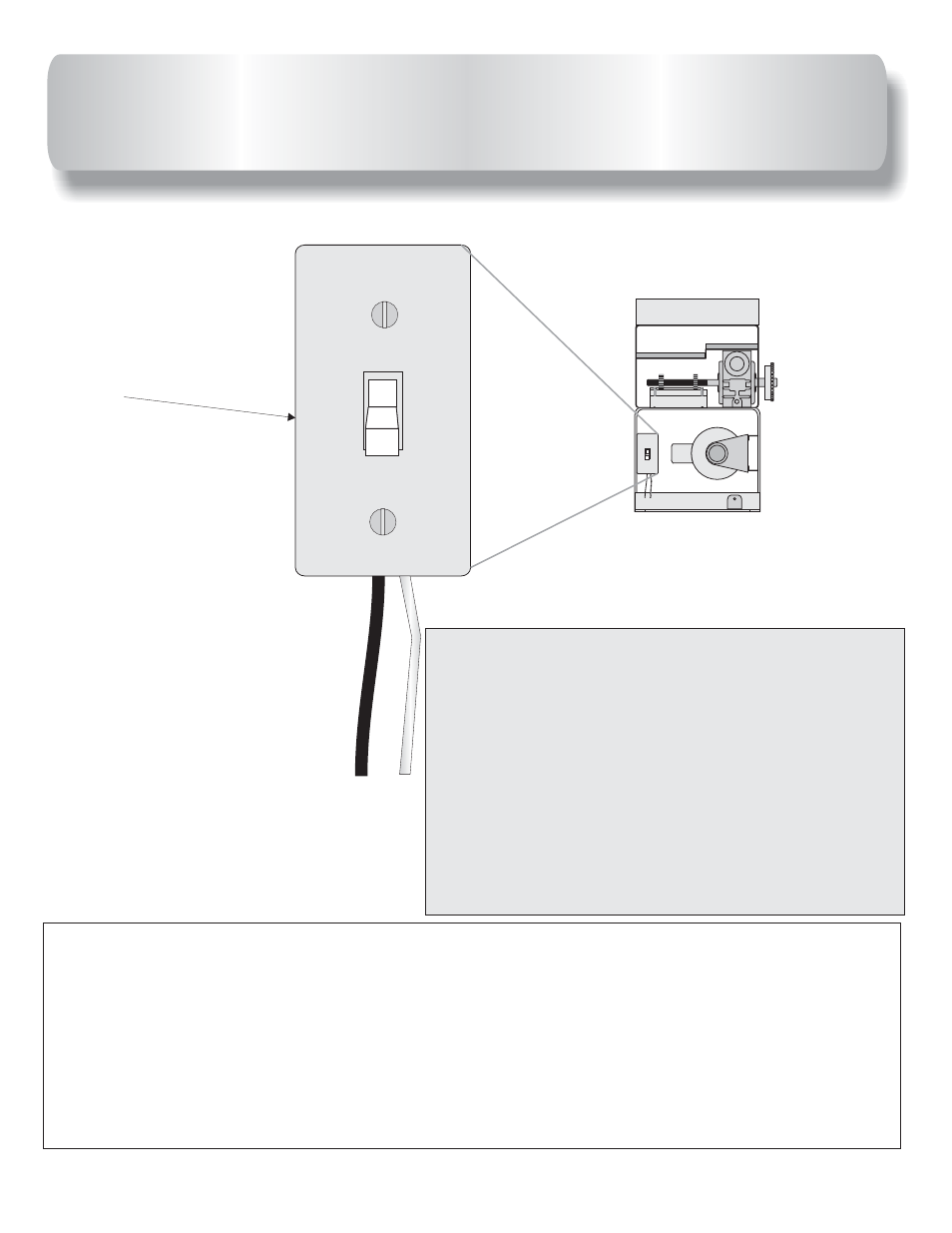

ELECTRICAL CONNECTION
Power switch and
electrical connection
box.
Connect black wire to 115 volts AC = Hot.
Connect white wire to AC = Neutral.
Connect ground wire to operator metal frame. Use a
proper
for a ground reference.
Use the shortest and thickest wire possible for ground.
ground rod
For power wires enclosure
use UL listed conduits.
OPERATORS BE PROPERLY GROUNDED!
MUST
23
For power, a minimum of a
20-Amp dedicated circuit
breaker is needed.
