Page 9: Inside proper ty, When using reverse loops, 5” offset
1603-065-N-7-11
7
Install dual operators the same as installing two single operators except for:
•
There are no end cap sections used.
•
For spike sections to align, secondary operator will be offset 3.5” from the primary operator.
Secondary spike shaft will not align with primary spike shaft and secondary spikes will
rotate the opposite direction as the primary spikes.
•
Secondary operator’s arm is mounted on the right side of the operator.
•
Operators need to be wired together with an interconnection cable (Sold separately).
•
Each operator requires AC power.
•
Both operator’s DIP-switches (SW 1, SW 2) must be set the same.
•
Connect all loop detectors and access control devices to the PRIMARY operator ONLY.
REVERSE
SENSITIVITY
TIME
DELAY
POWER
1
ON
2
3
4
5
6
7
8
1
ON
2
3
4
5
6
7
8
NC NO
UP
LOOP
DOWN
LOOP
1 2 3 4 5
6 7
8
9
10 11
12 13 14
1601
Sold separately from DoorKing.
4 wires used (8 - 18 AWG wires total).
Primary Operator
Circuit Board
REVERSE
SENSITIVITY
TIME
DELAY
POWER
1
ON
2
3
4
5
6
7
8
1
ON
2
3
4
5
6
7
8
NC NO
UP
LOOP
DOWN
LOOP
1 2 3 4 5
6
7
8 9
10 11 12 13
14
1601
Secondary Operator
Circuit Board
SW 1
SW 1, switch 4 is ON.
SW 1, switch 5 is OFF.
SW 1, switch 8 is OFF.
When using Reverse Loops:
DIP-Switch settings: SW 1, switch 4 is OFF. SW 1, switch 5 is OFF. SW 1, switch 8 is OFF. Set other DIP-switches
based on gate operation preferences.
Interconnection cable: The BROWN wire must be connected to SECONDARY TERMINAL #9 along with the
GRAY wire. All other terminal wire connections are the same as shown above.
Set other DIP-switches
based on gate operation
preferences.
Yellow
Brown
Gray
Orange
Yellow
Brown
Reverse loops
Gray
Orange
UP Loop Detector
Settings using
Down Loop
DOWN Loop Detector
Illustration shows six 3-ft spike sections (18 ft. of spikes).
Each operator controls three 3-ft spike sections.
Inside Proper
ty
Traffic Lane
Spike Sections

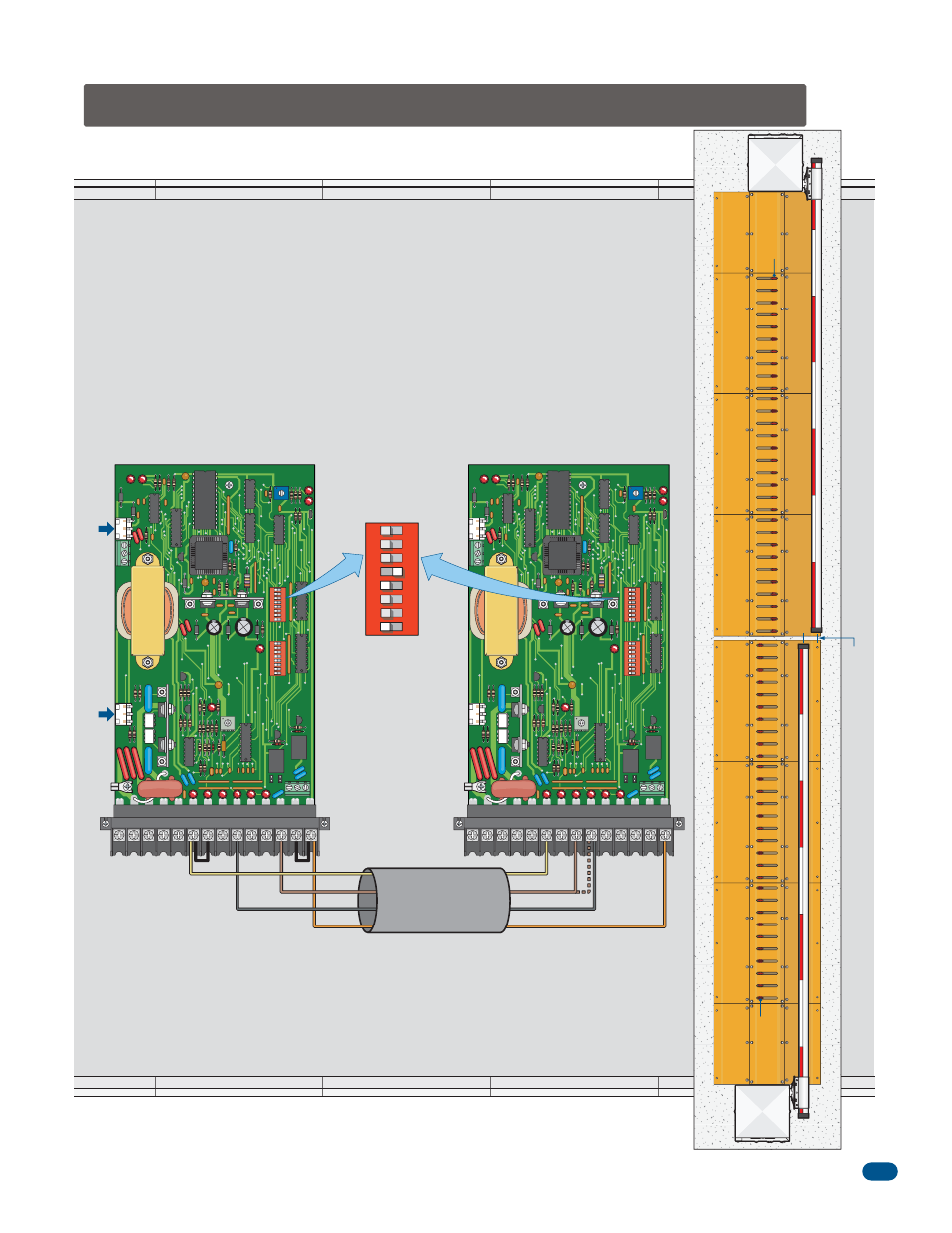

1.4 Dual Operator Installation (Primary/Secondary)
For use in areas needing more than four 3-Ft sections of spikes (12 ft.) in a traffic lane. Up to eight
3-Ft spike sections (24 feet of spikes) can be used with dual operators.
Secondary
Operator
Primary
Operator
Primar
y
Spike Shaft
Secondar
y
Spike Shaft
Jumper Wire
Jumper
1
ON
2
3
4
5
6
7
8
Primary/Secondary
Interconnection Cable
3.5” Offset
