1.1 Operator Positioning and Conduit Requirements
SECTION 1 - INSTALLATION OF OPERATOR
• The conduit requirements are for a typical barrier gate operator installation. The conduit requirements for your
application may vary from this depending on your specific needs.
• Use only sweeps for conduit bends. Do not use 90° connectors as this will make wire pulls very
difficult and can cause damage to wire insulation.
• We suggest that minimum 3/4-inch conduit be used.
• Never run low voltage rated wire insulation in the same conduit as high voltage rated wire insulation.
• Be sure that all conduits are installed in accordance with local codes.
Primary/Secondary Interconnection Cable (Dual Operator Application Only)
Sweeps 3/4-Inch Minimum
Prior to beginning the installation of the barrier gate operator, we suggest that you become familiar with the instruc-
tions, illustrations, and wiring guide-lines in this manual. This will help insure that your installation is performed in
an efficient and professional manner.
The proper installation of the vehicular barrier gate operator is an extremely important and integral part of the
overall access control system. Check all local building ordinances and building codes prior to installing this
operator. Be sure your installation is in compliance with local codes.
Traffic Lane
Access Door
CLASS
CERTIFIED TO CAN/CSA C22.2 NO. 247 CONFORMS TO ANSI/UL-325
VEHICULAR GATE OPERATOR HP
53382
MODEL SERIAL VOLTS PHASE AMPS 60 Hz MAX GATE LOAD DoorKing, Inc., Inglewood, CA
MOVING ARM can cause vehicle damage,
serious injury or death. STAY CLEAR of arm at all times. NO: Pedestrians Bicycles
Motorcycles
WARNING
Elbow
NO
Sweep
YES

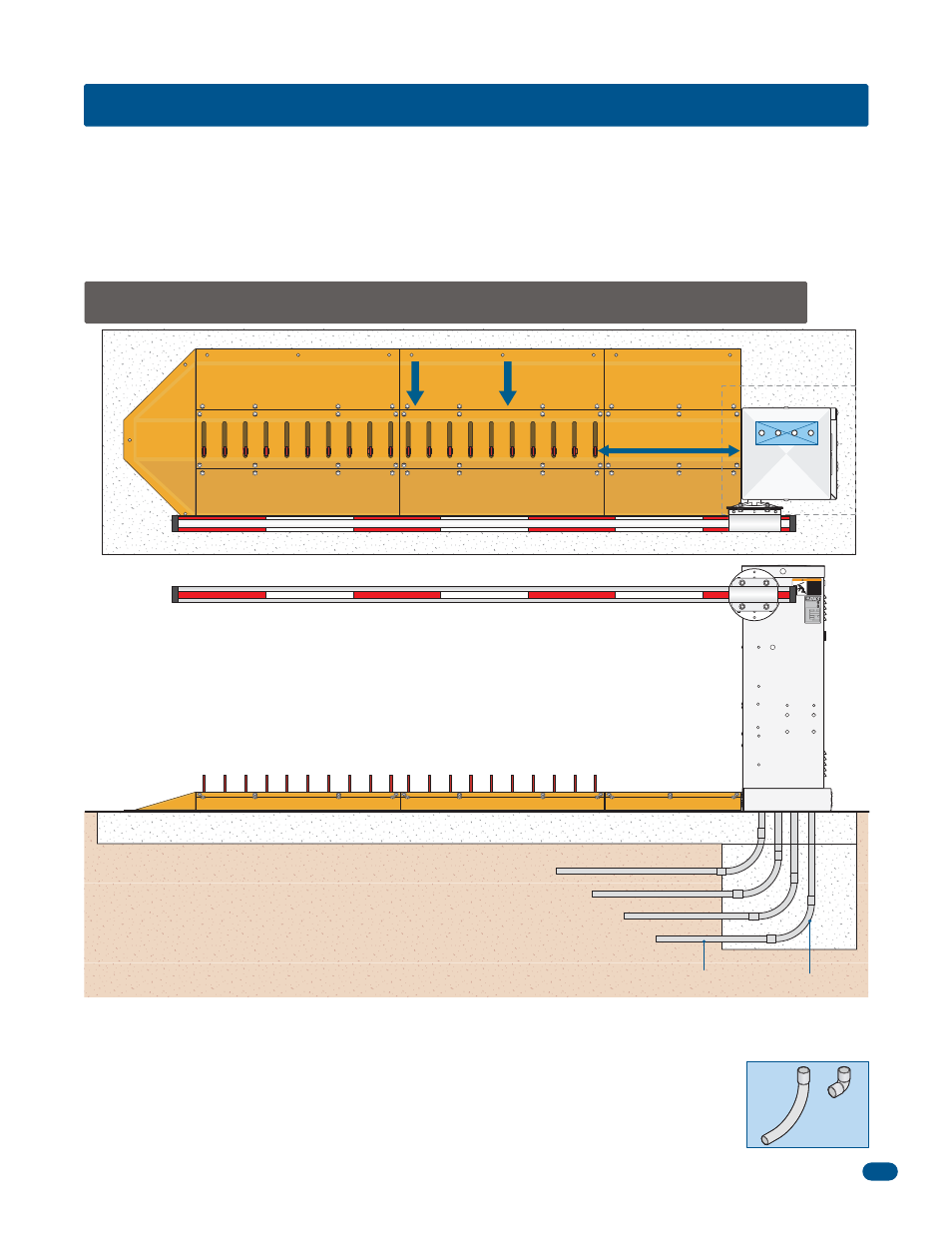

Control and/or P.A.M.S. Wires (Low Voltage wire insulation)
Loop Lead-In Wires (Low Voltage wire insulation)
AC Input Power (High Voltage wire insulation)
Access Door
Traffic Direction
Spike Shaft Position
Arm Mounted on the Left Side of Operator
Conduit Runs
