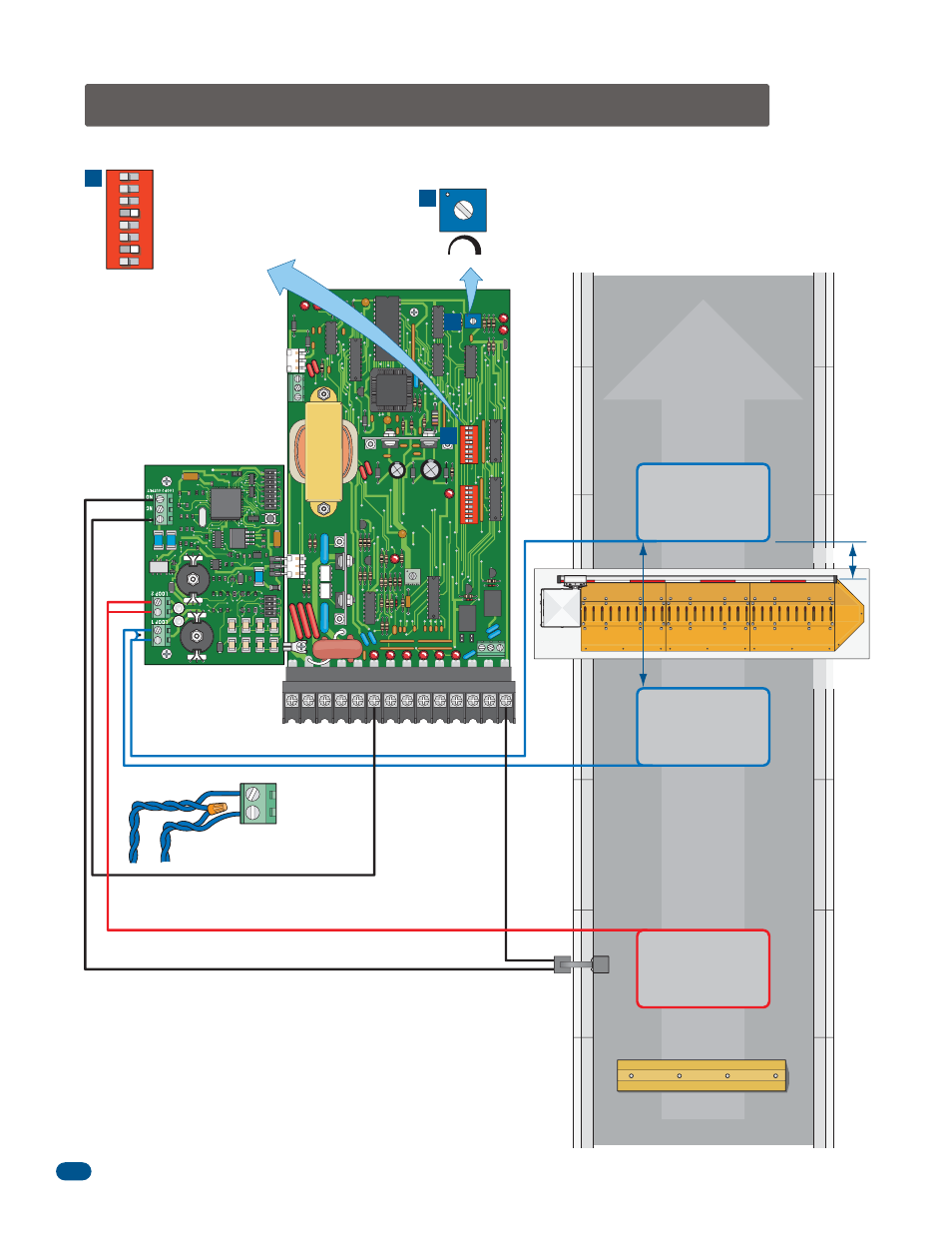

4.5 Operator Timer ON Entry Lane (No Down Loop)
REVERSE
SENSITIVITY
TIME
DELAY
POWER
1 ON
2
3
4
5
6
7
8
1 ON
2
3
4
5
6
7
8
NC NO
UP
LOOP
DOWN
LOOP
1 2 3 4 5 6 7 8 9 10 11 12 13 14
1601
SW 1, switch 4 is OFF.
SW 1, switch 7 is ON (Timer). The arm will
rotate down after the timer has timed out.
Speed Bump
Reverse Loop
Reverse Loop
Access
Control
Device
If the arming loop is not used, then a Single Channel Loop Detector can be
used (9410) in the down loop port. Connect the reverse loops to loop 1 on this
detector. Connect the access control device directly to main terminal 6 and 14.
Com
NO
Com
NO
SW 1
SW 2
Adjust from 1 second
(full counter clockwise)
to approximately 59
seconds (full clockwise).
1 59
TIME
DELAY
A
A
B
B
Arming Loop Note: The arming loop only allows the access control device to
function when a vehicle is on the loop, otherwise it will not function. This prevents
pedestrians from gaining access through the vehicular gate.
Reverse Loop Note: The reverse loops will prevent the arm from closing on a
vehicle remaining in the arm’s pathway. The timer will restart the countdown any
time the reverse loop gets activated.
1 Ft. Minimum Distance
Reverse loops wired in series.
Arming Loop
for Access
Control Device
(Optional)
Helps increase distance
and time between vehicles.
Note: Make sure that a vehicle can NOT fit in
the area between the reverse loops.
Main Terminal
