1603-065-N-7-11 6

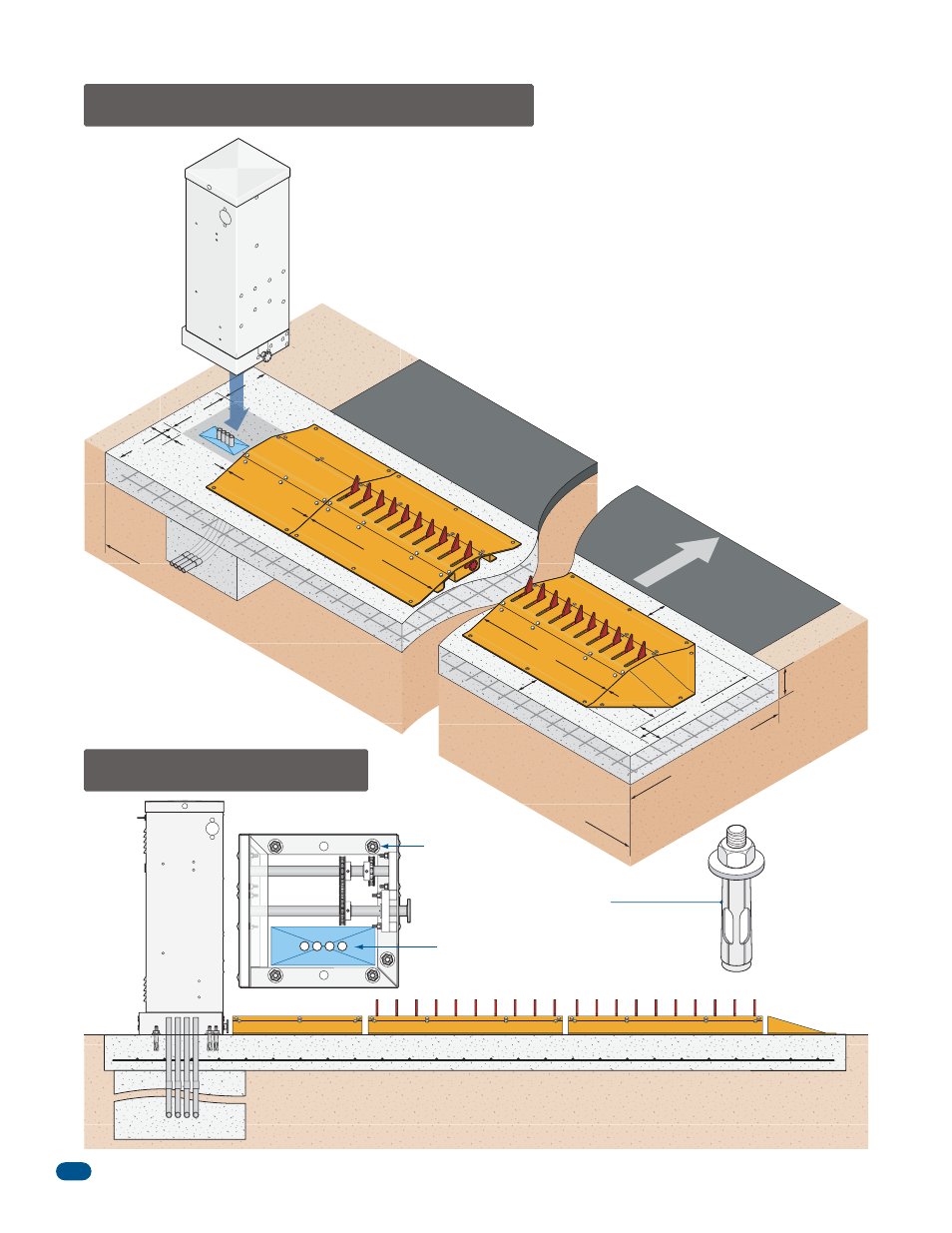

1.2 Concrete Pad Requirements
1.3 Mount Operator
Depth of concrete under the operator
is determined by soil conditions and
local building codes.
6”
6”
31”
6”
15”
17”
11”
6”
Extension Section
Spike Section
Spike Section
DO NOT install operator
or spikes on asphalt.
Traffic Direction
24” or 36”
36”
43” Minimum
6” Minimum
Embedded Wire M
esh
15.75”
36”
12”
The operator and auto spike system must ONLY be installed on a concrete pad with a
minimum 6 inch depth. The concrete pad must be FLAT and LEVEL (Check local building
codes for restrictions). Reinforced concrete recommended.
Sections can be connected in different configurations for
specific applications.
It is recommended that the “Spike” sections not exceed
12 feet (Four 3-Ft spike sections) for proper operation.
Refer to Section 3 Auto Spike System Installation for further
information.
Total length of concrete pad will var
y depending on the number of sections used.
Embedded Wire Mesh
Sections MUST lay flat and level on concrete to operate properly!
Sleeve Anchors
Conduit
Approximate positioning of conduit runs. Access Door
Inside of Operator
Secure the operator to
the concrete pad with the
mounting flange using 1/2” x 3”
sleeve anchors (not supplied).
End Cap
Sleeve Anchor
(Not supplied)
1/2
DO NOT mount sections at this time.
