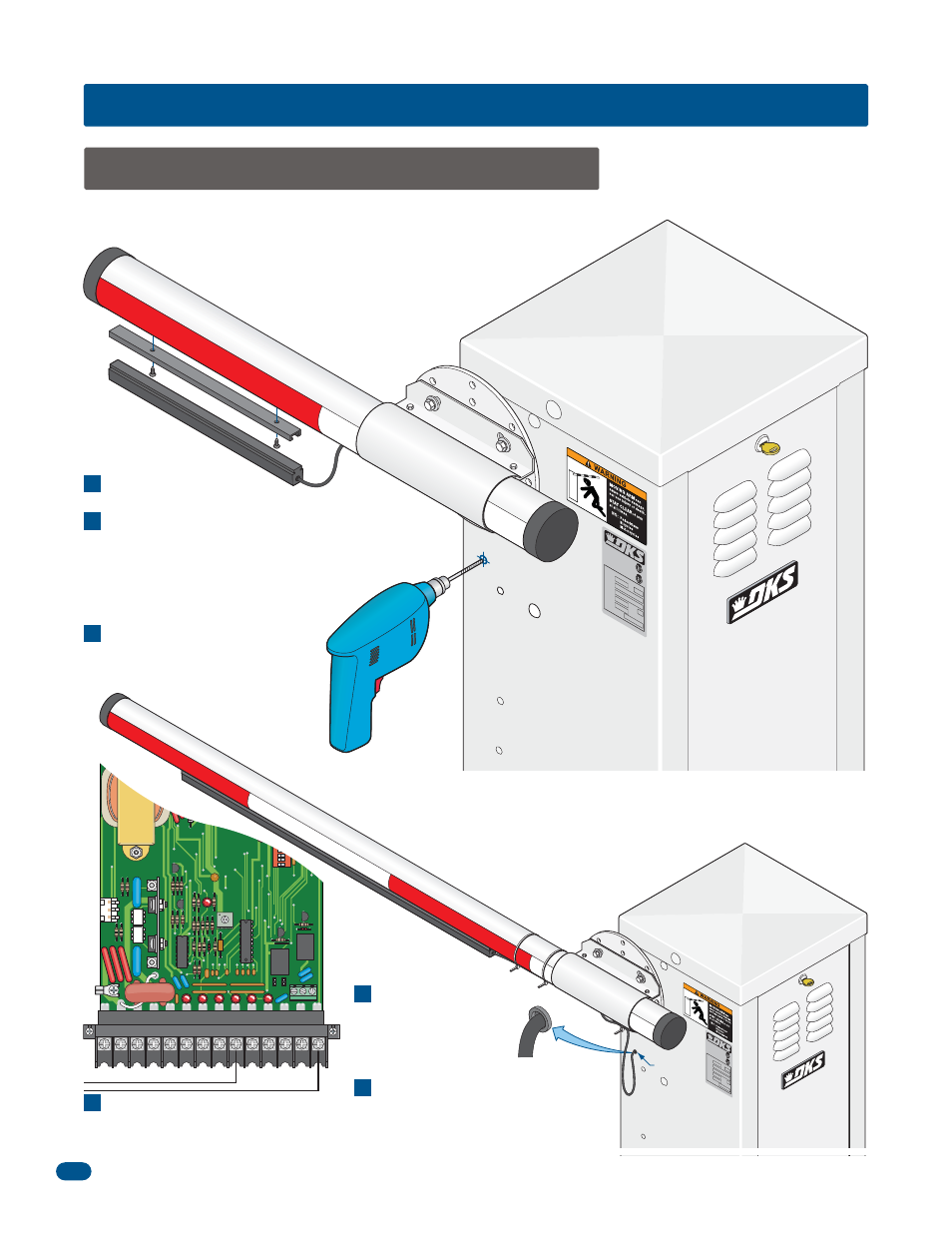

Turn operator power OFF.
Center and secure the 6-foot mounting
channel to the bottom of the barrier arm using
self-tapping metal screws (not supplied).
Slide the reversing edge into the mounting
channel.
Drill a 1/4-inch hole on the side of
the operator housing beneath the
operator arm shaft.
8.1 Contact Sensor (Reversing Edge)
SECTION 8 - OPTIONAL ACCESSORIES INSTALLATION
In addition to the electronic reversing device (ERD) an optional electric reversing edge (P/N 8080-016) may be installed offering
additional protection to the arm, operator and obstruction.
Connect wires to terminals 9 and
14 without interfering with any of
the operator’s moving parts.
