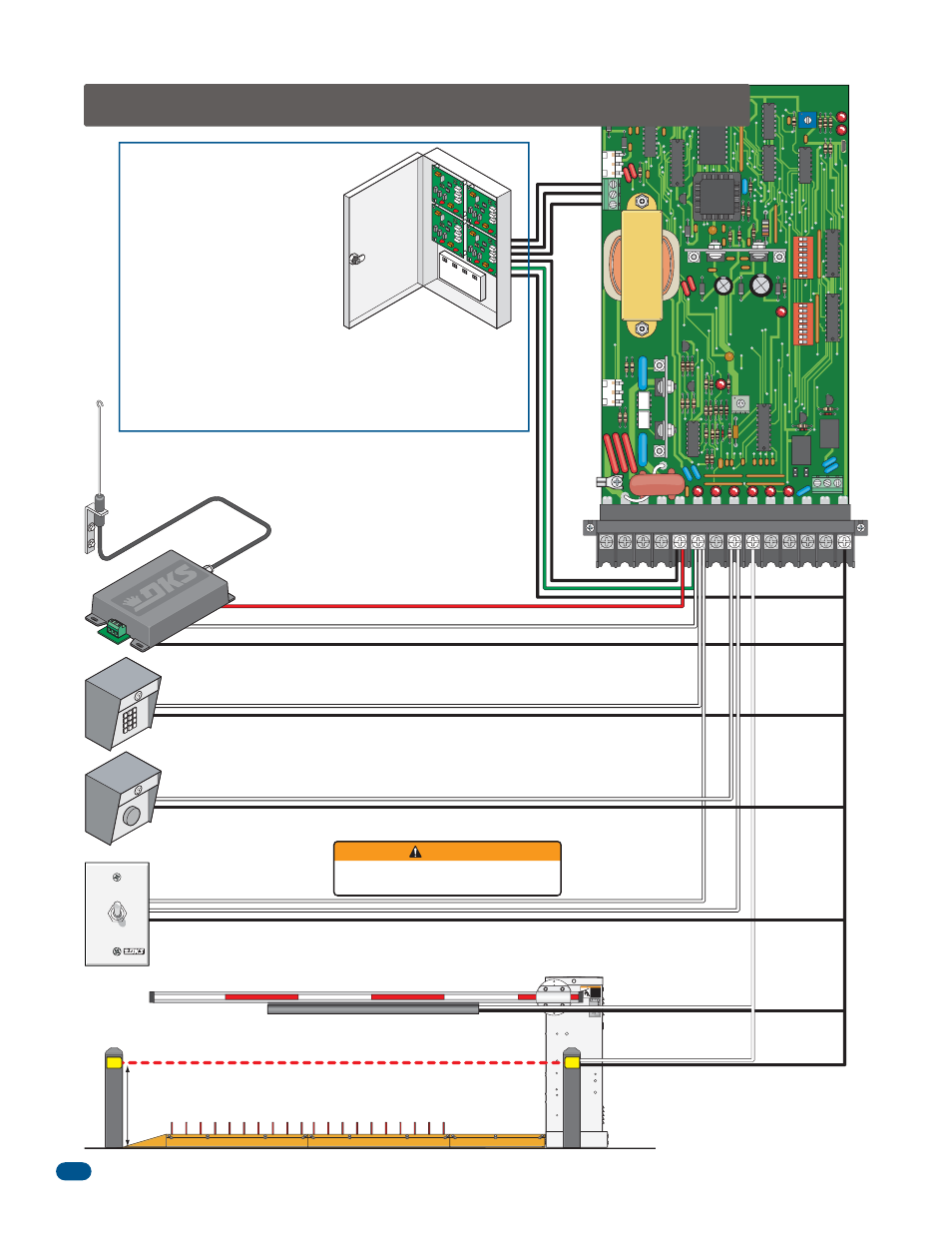

2.4 Control Wiring for Single/Primary Operator
DoorKing Access Control System
(Model 1833, 1835, 1837 or 1838)
tracker system can be connected.
This system can keep track of gate
operator cycle count, shorted inputs,
loop detector problems, any forced
entry attempts, if the gate has struck
anything during the open or close
cycle, power interruptions, etc.
For more detailed information refer
to the Tracker Installation and Wiring
Manual, DoorKing P/N 2351-010.
Terminal 6 required only if the
tracker board will activate the
gate operator. Refer to the
manual 2351-065 for detailed
information.
1. Com
3. 24 Volt
2. Relay
3-Wire Radio Receiver
Up-Inputs
Down-Inputs
Manual Gate Control Toggle
P/N 1200-017
Up toggle position: User toggles switch up to hold gate open.
Center toggle position: Is neutral for normal operation.
Down toggle position: User momentarily toggles switch down to open gate.
User MUST make sure gate area IS CLEAR
before manually operating gate arm.
OPEN
HOLD OPEN
WARNING
Coax Antenna Kit
P/N 1514-073
Antenna mounted outside
operator housing.
21” Typical Beam Height.
27.5” Max. Beam Height.
Contact and Non-Contact Sensors Note:
Helps minimizes the potential of the arm
lowering on vehicular or other traffic that
loops cannot sense.
Contact Sensor (Reversing Edge)
See page 28
