1603-065-N-7-11 1
1”

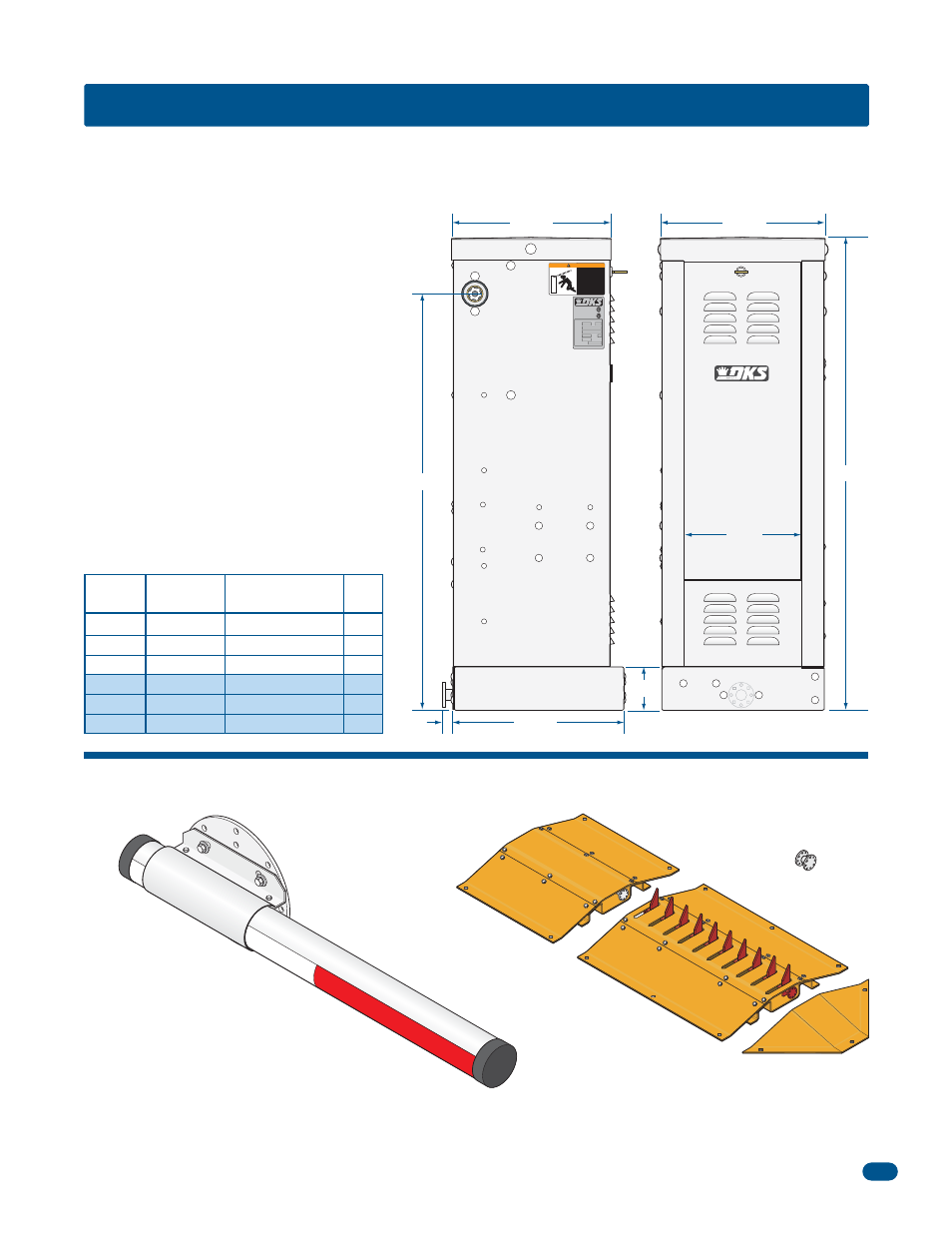

1603 SPECIFICATIONS
15.25”
43.6”
38.5”
14 Ft. Aluminum Arm P/N 1601-216
Aluminum Arm Mounting Kit P/N 1601-242
Aluminum Folding Arm Assembly P/N 1601-310
Foam Padding for 14 Ft. Arm P/N 1601-260
2 Ft. or 3 Ft.
Extension Section
2 Ft. P/N 1603-192
3 Ft. P/N 1603-193
3 Ft. Spike Section
P/N 1603-073
Connector Shaft
P/N 1603-069
1 Ft. End Cap
P/N 1603-118
1603 Aluminum Arm
Folding arm assembly can be installed for low headroom application.
1603 Auto Spike System
Multiple sections can connect together allowing different spike configurations.
1603 Housing
Drawings not to scale
DoorKing, Inc. reserves the right to make changes in the products described in this manual without notice and without obligation of DoorKing, Inc. to notify any
persons of any such revisions or changes. Additionally, DoorKing, Inc. makes no representations or warranties with respect to this manual. This manual is
copyrighted, all rights reserved. No portion of this manual may be copied, reproduced, translated, or reduced to any electronic medium without prior written
consent from DoorKing, Inc.
14.74”
15.5”
CLASS
CERTIFIED TO CAN/CSA C22.2 NO. 247
CONFORMS TO ANSI/UL-325
VEHICULAR GATE OPERATOR HP
53382
MODEL
SERIAL
VOLTS PHASE
AMPS 60 Hz MAX GATE LOAD
DoorKing, Inc., Inglewood, CA
MOVING ARM can cause vehicle damage,
serious injury or death.
STAY CLEAR of arm at all times.
NO: Pedestrians Bicycles
Motorcycles
WARNING
10.8”
4”
Class of Operation
Model 1601 - UL 325 Class II, III, IV – ETL Listed
Type of Gate
Single Traffic Lane Vehicular Barrier Gate Only
Arm Types
Aluminum – Straight or Folding Arm
Max Arm Length
14 Ft.
Max Spike Length
12 Ft.
Gate Cycles
High Cycle
Speed
90° in approximately 1.5 seconds
Primary Entrapment Protection
Inherent entrapment sensing system (Type A)
Secondary Entrapment Protection
Provision for connection of a non-contact sensor
(Type B1) and/or contact sensor (Type B2)
Model # Horsepower - Volts
1/2 HP - 115 VAC
1/2 HP - 230 VAC
1/2 HP - 460 VAC
1/2 HP - 115 VAC
1/2 HP - 230 VAC
1/2 HP - 460 VAC 1603-080
1603-082
1603-084
1603-081
1603-083
1603-085
Amp
5.7
2.9
1.5
5.7
2.9
1.5
Convenience
Open
No
No
No
Yes
Yes
Yes
Use this manual for the Model 1603 operators with circuit board 1601-010 Rev V or higher ONLY.
